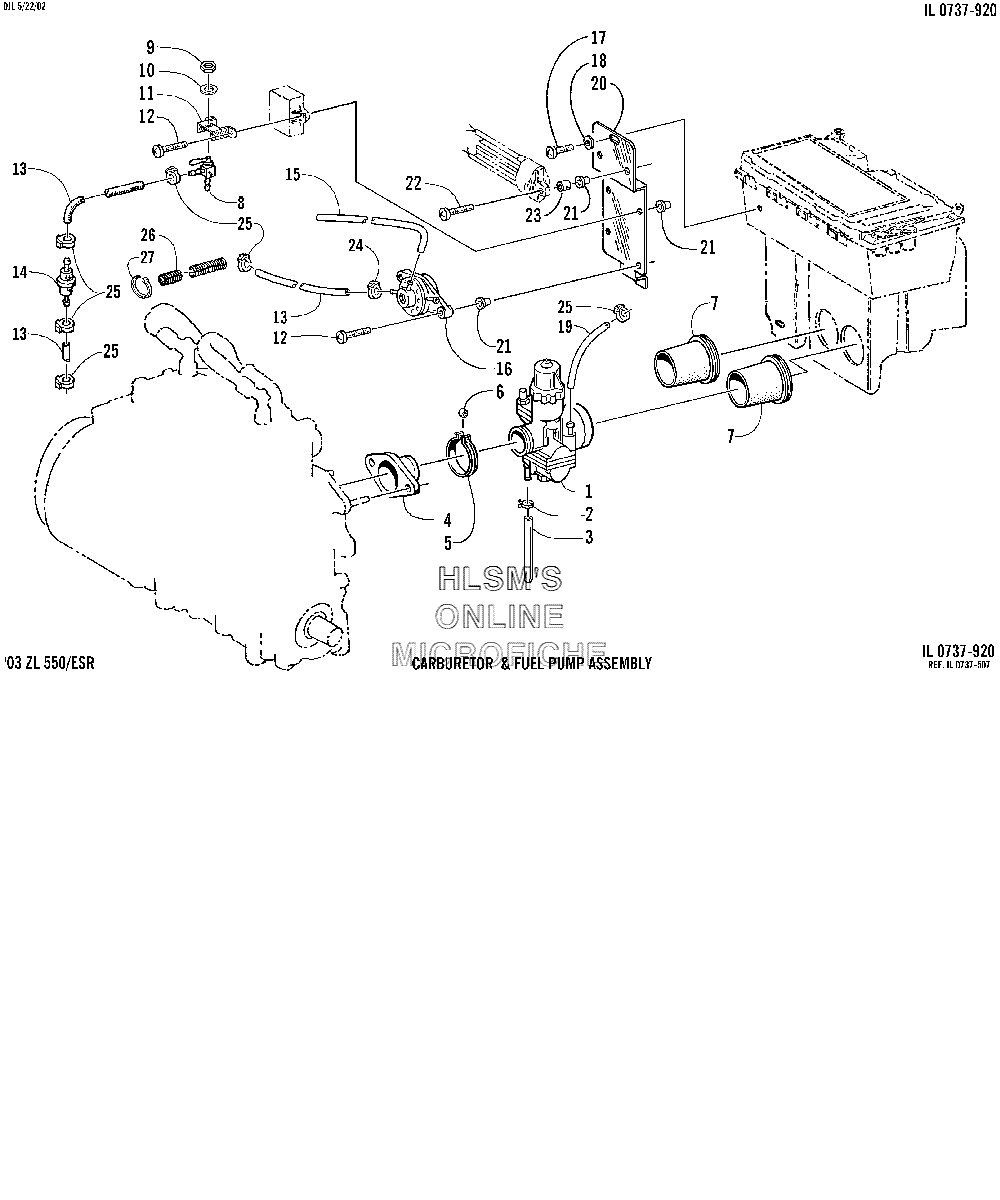

CARBURETOR AND FUEL PUMP ASSEMBLY для Arctic Cat ZL 550 - 2003 года выпуска`
-
№АртикулНазвание
-
10770-379 CARBURETOR, VM38, 424CARBURETOR, VM38, 424
-
20623-652 CLAMP, HOSECLAMP, HOSE
-
30610-442 HOSE, DRAINHOSE, DRAIN
-
40670-197 FLANGE, CARBURETOR (INC. 5, 6)FLANGE, CARBURETOR (INC. 5, 6)
-
50670-199 CLAMP (INC. 6)CLAMP (INC. 6)
-
60670-209 SPACER, CLAMPSPACER, CLAMP
-
70670-516 BOOT, CARBURETORBOOT, CARBURETOR
-
80670-144 VALVE, FUEL SHUT, OFF (INC. 9, 10)VALVE, FUEL SHUT, OFF (INC. 9, 10)
-
90623-287 NUTNUT
-
100623-288 WASHERWASHER
-
110770-614 BRACKET, MOUNTING, FUEL SHUT, OFF VALVEBRACKET, MOUNTING, FUEL SHUT, OFF VALVE
-
120623-833 SCREW, MACHINESCREW, MACHINE
-
130610-017 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
130610-008 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
140510-335 FILTER, FUELFILTER, FUEL
-
150610-007 HOSE, IMPULSE (25 FT)HOSE, IMPULSE (25 FT)
-
160670-311 PUMP, FUELPUMP, FUEL
-
178017-577 SCREW, MACHINESCREW, MACHINE
-
188051-212 WASHER, LOCKWASHER, LOCK
-
196101-001 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
196101-009 HOSE, GASLINE (50 FT)HOSE, GASLINE (50 FT)
-
200770-310 PLATE, MOUNTING (INC. 21)PLATE, MOUNTING (INC. 21)
-
210623-779 INSERTINSERT
-
220623-835 SCREW, MACHINESCREW, MACHINE
-
230107-630 SPACER, FUEL PUMPSPACER, FUEL PUMP
-
240623-502 CLAMP, HOSECLAMP, HOSE
-
250623-063 CLAMP, HOSECLAMP, HOSE
-
260716-558 CONDUIT, FLEXIBLE (10 FT)CONDUIT, FLEXIBLE (10 FT)
-
270123-811 CABLE TIE, 4 IN.CABLE TIE, 4 IN.
