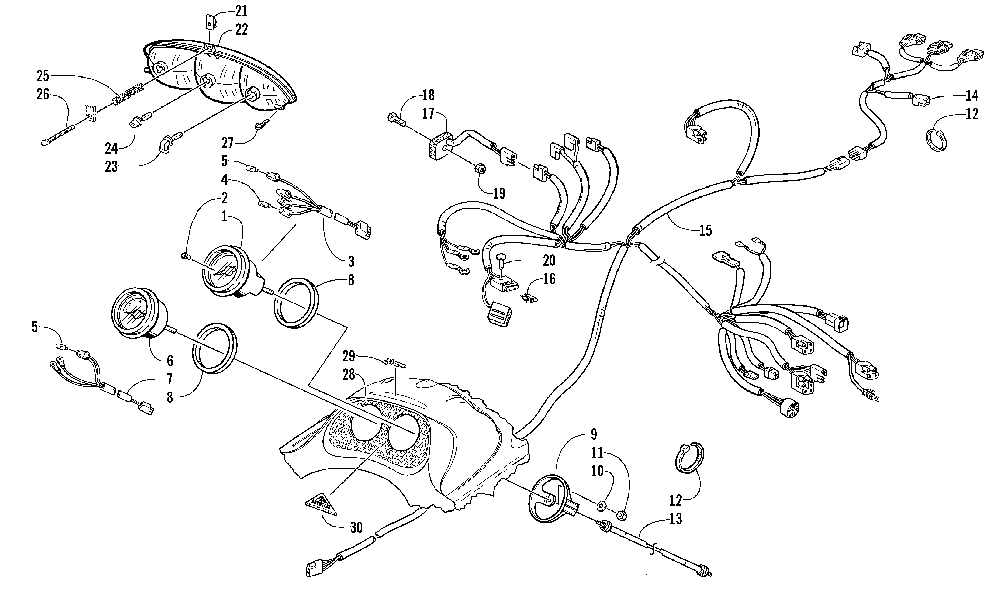

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES (ESR) для Arctic Cat ZL 550 (ESR BLACK) - 2003 года выпуска`
-
№АртикулНазвание
-
10620-238 SPEEDOMETER (INC. 2, 4 AND ONE NO. 5)SPEEDOMETER (INC. 2, 4 AND ONE NO. 5)
-
20620-073 KNOB, TRIPMETERKNOB, TRIPMETER
-
30620-151 HARNESS, BULB, SPEEDOMETER (INC. 4 AND ONE NO. 5)HARNESS, BULB, SPEEDOMETER (INC. 4 AND ONE NO. 5)
-
40620-149 BULB, INNERDICATORBULB, INNERDICATOR
-
50230-020 BULB, INSTRUMENTBULB, INSTRUMENT
-
60620-236 TACHOMETER (INC. 7 AND ONE NO. 5)TACHOMETER (INC. 7 AND ONE NO. 5)
-
70620-215 HARNESS, TACHOMETER (INC. ONE NO. 5)HARNESS, TACHOMETER (INC. ONE NO. 5)
-
80620-135 RING, RUBBER CUSHIONRING, RUBBER CUSHION
-
90620-134 RING, RETAINING BRACKETRING, RETAINING BRACKET
-
108050-212 WASHERWASHER
-
110623-038 NUT W/WASHERNUT W/WASHER
-
120123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
130620-269 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
140686-515 HARNESS, HOODHARNESS, HOOD
-
150686-780 HARNESS, MAIN (INC. 16)HARNESS, MAIN (INC. 16)
-
160630-100 FUSE, 7.5 AMPFUSE, 7.5 AMP
-
170630-105 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
188002-045 SCREW, CAPSCREW, CAP
-
198040-366 NUT, LOCKNUT, LOCK
-
200623-589 CLIP, RETAININGCLIP, RETAINING
-
210623-757 NUT, UNUT, U
-
220609-250 LENS/REFLECTOR, HEADLIGHTLENS/REFLECTOR, HEADLIGHT
-
230609-251 BULB, HEADLIGHT, HIGH BEAMBULB, HEADLIGHT, HIGH BEAM
-
240609-252 BULB, HEADLIGHT, LOW BEAMBULB, HEADLIGHT, LOW BEAM
-
250623-466 SPRING, ADJUSTERSPRING, ADJUSTER
-
260623-467 SCREW, THUMBSCREW, THUMB
-
270623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
283611-490 DECAL, INSTRUMENT, HOODDECAL, INSTRUMENT, HOOD
-
293611-581 DECAL, "ESR", DOMEDDECAL, "ESR", DOMED
-
303611-611 DECAL, "MADE IN U.S.A.", DOMEDDECAL, "MADE IN U.S.A.", DOMED
