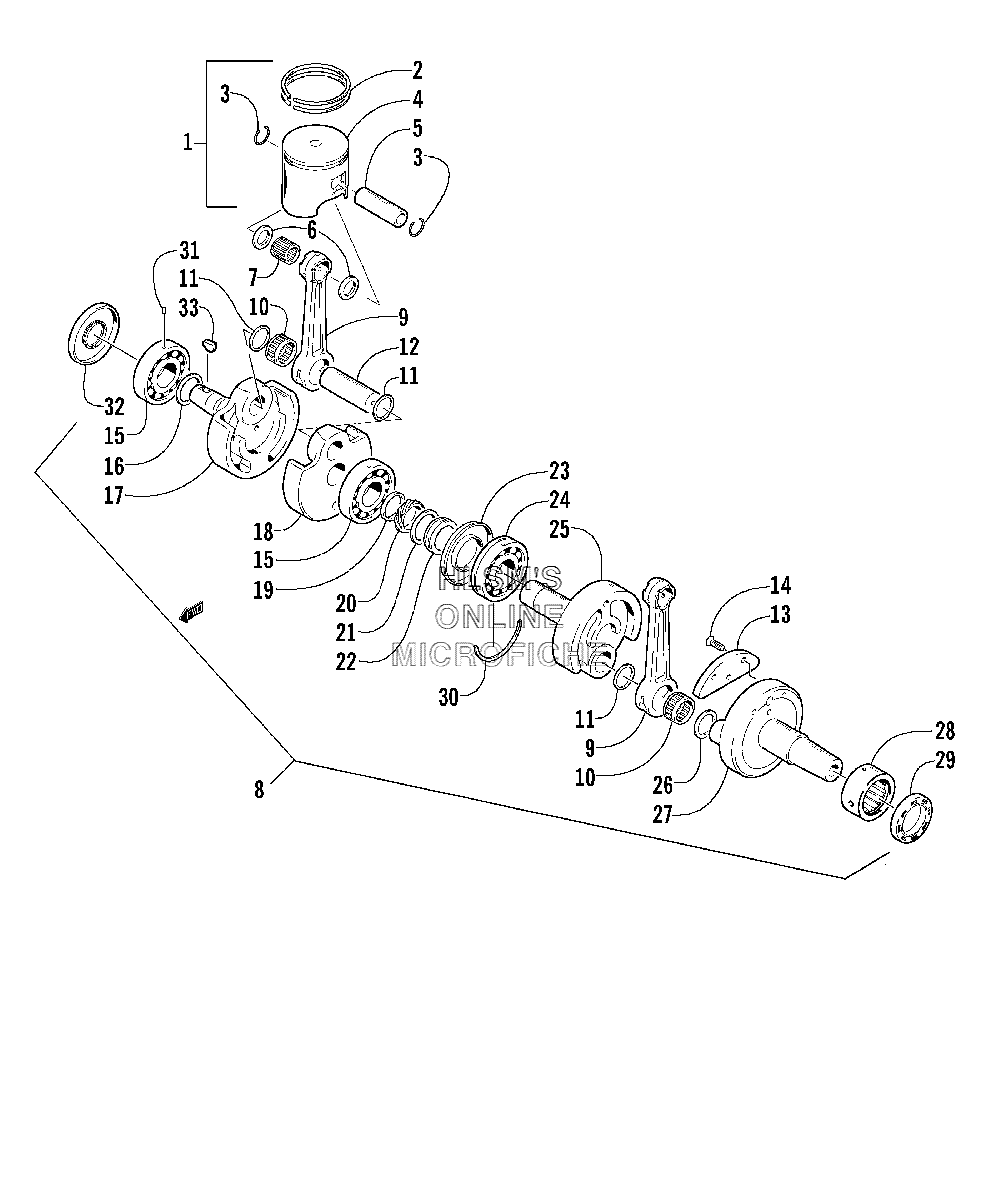

PISTON AND CRANKSHAFT для Arctic Cat Z 570 - 2003 года выпуска`
-
№АртикулНазвание
-
13006-528 PISTON ASSEMBLY (INC. 2, 4)PISTON ASSEMBLY (INC. 2, 4)
-
23006-004 RING SET, PISTONRING SET, PISTON
-
33003-537 CIRCLIP, PISTON PINCIRCLIP, PISTON PIN
-
53004-830 PIN, PISTONPIN, PISTON
-
63004-780 WASHERWASHER
-
73005-993 BEARING, PISTON PINBEARING, PISTON PIN
-
83006-462 CRANKSHAFT ASSEMBLY (INC. 9, 28)CRANKSHAFT ASSEMBLY (INC. 9, 28)
-
93003-305 ROD, CONNECTINGROD, CONNECTING
-
103004-514 BEARING, CRANK PINBEARING, CRANK PIN
-
113005-989 SHIMSHIM
-
123006-006 PIN, CRANKPIN, CRANK
-
133006-011 BALANCERBALANCER
-
143004-372 SCREW, MACHINESCREW, MACHINE
-
153006-464 BEARING, CRANKSHAFTBEARING, CRANKSHAFT
-
163008-501 WASHERWASHER
-
173006-007 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
183006-008 WHEEL, CRANKSHAFTWHEEL, CRANKSHAFT
-
193002-827 SPACERSPACER
-
203005-373 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
213003-112 RING, SEALRING, SEAL
-
223003-171 RACE, CRANKSHAFT SEALRACE, CRANKSHAFT SEAL
-
233003-306 RETAINER, CRANKSHAFT SEALRETAINER, CRANKSHAFT SEAL
-
243005-992 BEARINGBEARING
-
253006-009 CRANKSHAFT (CENTER)CRANKSHAFT (CENTER)
-
263003-800 WASHER, CRANK PIN BEARINGWASHER, CRANK PIN BEARING
-
273006-010 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
283005-994 BEARING, CRANKSHAFT (LEFT)BEARING, CRANKSHAFT (LEFT)
-
293006-465 SEAL, OILSEAL, OIL
-
303003-216 C, RING, CRANKSHAFTC, RING, CRANKSHAFT
-
313003-658 PIN, ALIGNMENTPIN, ALIGNMENT
-
323005-995 SEAL, OILSEAL, OIL
-
333010-070 KEYKEY
