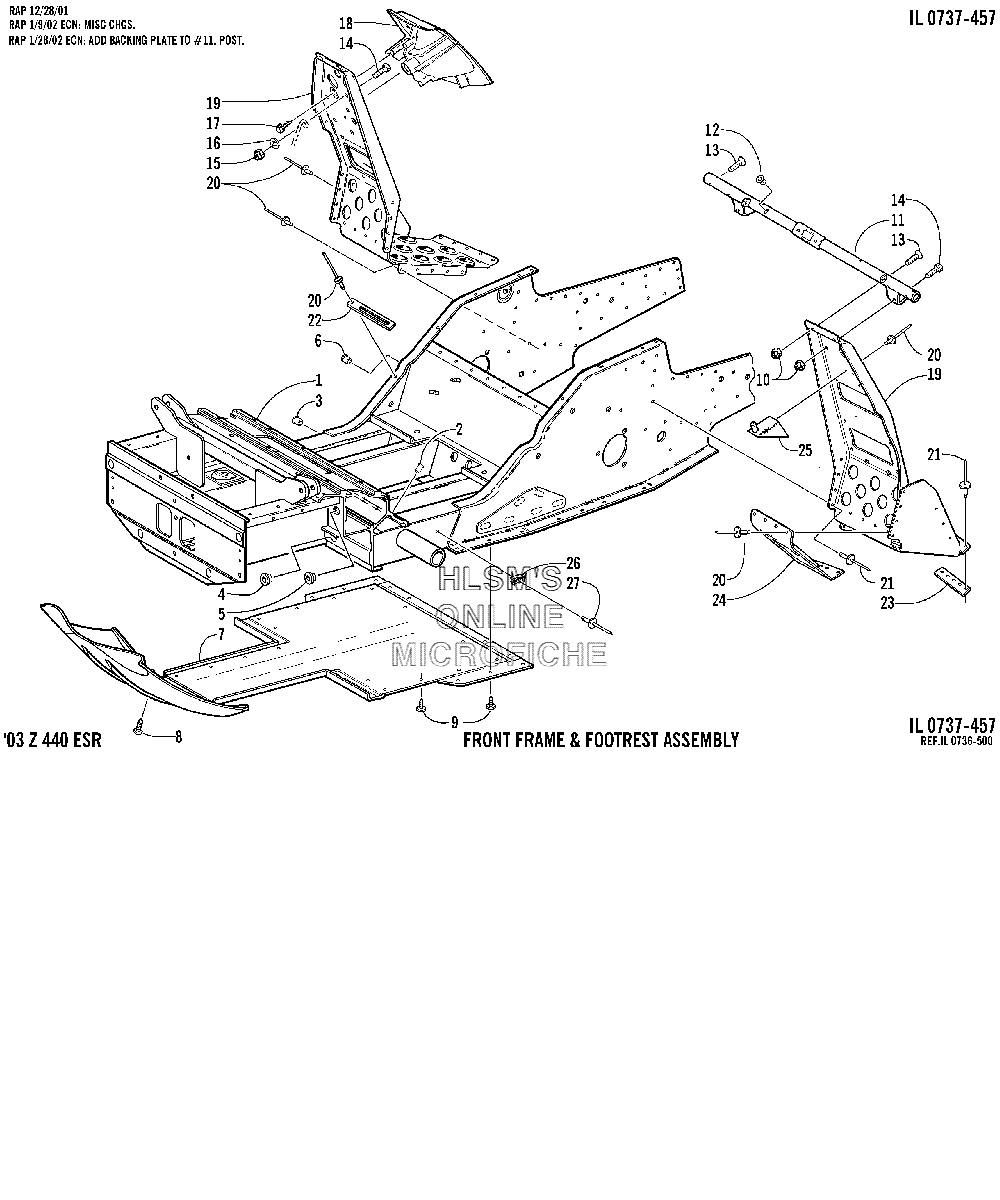

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat Z 370 - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    0707-709 CHASSIS ASSEMBLY (INC. 2, 6)
    CHASSIS ASSEMBLY (INC. 2, 6)
  • 2
    0623-699 INSERT
    INSERT
  • 3
    0623-582 INSERT
    INSERT
  • 4
    0607-420 INSERT A, ARM MOUNT (LOWER)
    INSERT A, ARM MOUNT (LOWER)
  • 5
    0607-421 INSERT A, ARM MOUNT (UPPER)
    INSERT A, ARM MOUNT (UPPER)
  • 6
    0623-581 INSERT
    INSERT
  • 7
    1606-719 BELLY PAN (CENTER)
    BELLY PAN (CENTER)
  • 8
    0623-784 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 9
    0623-797 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 10
    8041-366 NUT, LOCK
    NUT, LOCK
  • 11
    0705-866 SUPPORT, STEERING (INC. 12)
    SUPPORT, STEERING (INC. 12)
  • 12
    0623-779 INSERT
    INSERT
  • 13
    8019-614 SCREW, MACHINE
    SCREW, MACHINE
  • 14
    8002-041 SCREW, CAP
    SCREW, CAP
  • 15
    8040-366 NUT, LOCK
    NUT, LOCK
  • 16
    8050-212 WASHER
    WASHER
  • 17
    0623-297 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 18
    1606-062 CUP, RECOIL ROPE
    CUP, RECOIL ROPE
  • 19
    2606-444 FOOTREST (RIGHT)
    FOOTREST (RIGHT)
  • 19
    2606-733 FOOTREST (LEFT)
    FOOTREST (LEFT)
  • 20
    8060-486 RIVET
    RIVET
  • 21
    8060-706 RIVET
    RIVET
  • 22
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
  • 23
    2706-110 PLATE, BACKING, FOOTREST
    PLATE, BACKING, FOOTREST
  • 24
    2606-458 PLATE, BACKING (RIGHT)
    PLATE, BACKING (RIGHT)
  • 24
    2606-459 PLATE, BACKING (LEFT)
    PLATE, BACKING (LEFT)
  • 25
    0705-173 BRACKET, MOUNTING, GUARD
    BRACKET, MOUNTING, GUARD
  • 26
    0623-228 MOUNT, CABLE TIE
    MOUNT, CABLE TIE
  • 27
    8060-428 RIVET
    RIVET
