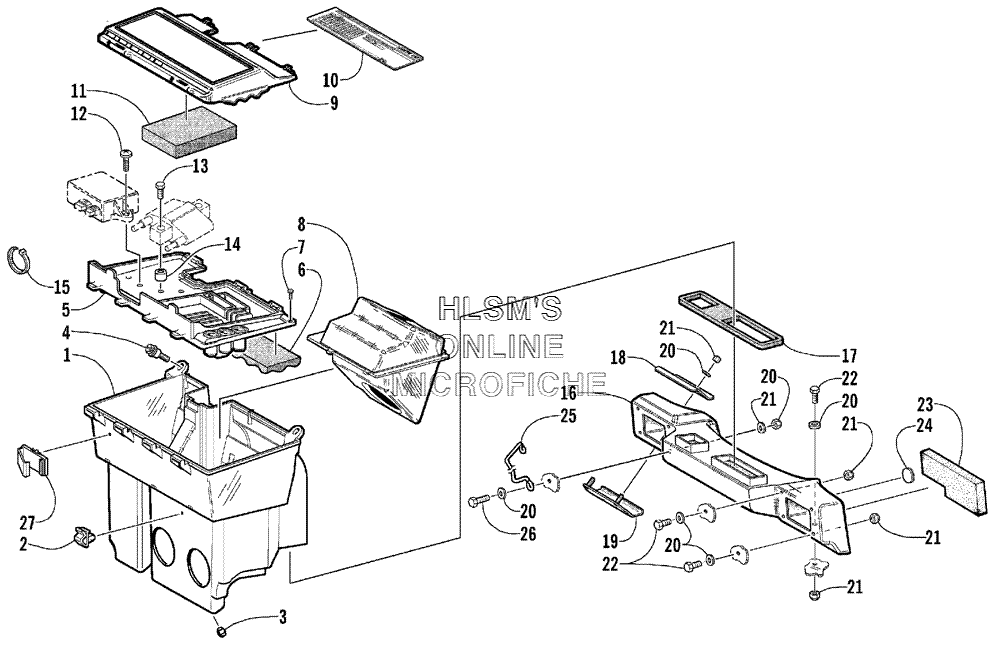

AIR SILENCER ASSEMBLY для Arctic Cat PANTHER 570 ESR (INTERNATIONAL) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-579 SILENCER, AIR, ASSY
    SILENCER, AIR, ASSY
  • 2
    0623-403 CLAMP, PUSH, MOUNT
    CLAMP, PUSH, MOUNT
  • 3
    1606-038 BUMPER, AIR SILENCER
    BUMPER, AIR SILENCER
  • 4
    0623-780 SCREW, MACHINE, HEX SHOULDER
    SCREW, MACHINE, HEX SHOULDER
  • 5
    1670-197 COVER, AIR SILENCER
    COVER, AIR SILENCER
  • 6
    0617-393 FOAM, COVER, AIR SILENCER
    FOAM, COVER, AIR SILENCER
  • 7
    0623-882 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 8
    1670-061 RESONATOR, Q, WAVE
    RESONATOR, Q, WAVE
  • 9
    1670-049 COVER, TOOL TRAY
    COVER, TOOL TRAY
  • 10
    4611-915 DECAL, JET CHART
    DECAL, JET CHART
  • 11
    0617-411 FOAM, TOOL TRAY
    FOAM, TOOL TRAY
  • 12
    0623-057 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 13
    0623-835 SCREW, MACHINE
    SCREW, MACHINE
  • 14
    0107-630 SPACER
    SPACER
  • 15
    0123-811 CABLE TIE, 4 IN.
    CABLE TIE, 4 IN.
  • 16
    1670-327 PLENUM, AIR SILENCER
    PLENUM, AIR SILENCER
  • 17
    0617-245 SEAL, PLENUM/AIR SILENCER
    SEAL, PLENUM/AIR SILENCER
  • 18
    2606-095 PLATE, BACKING
    PLATE, BACKING
  • 19
    1706-899 PLATE, ADJUSTING
    PLATE, ADJUSTING
  • 20
    8050-222 WASHER
    WASHER
  • 21
    8040-366 NUT, LOCK
    NUT, LOCK
  • 22
    8002-040 SCREW, CAP
    SCREW, CAP
  • 23
    0617-270 FOAM, PLENUM, INTAKE
    FOAM, PLENUM, INTAKE
  • 24
    0623-078 DISC, VELCRO
    DISC, VELCRO
  • 25
    0707-705 BRACKET, GUARD, HARNESS/ROPE
    BRACKET, GUARD, HARNESS/ROPE
  • 26
    8002-042 SCREW, CAP
    SCREW, CAP
  • 27
    0623-792 CLIP, WIRE, PUSH, MOUNT
    CLIP, WIRE, PUSH, MOUNT
