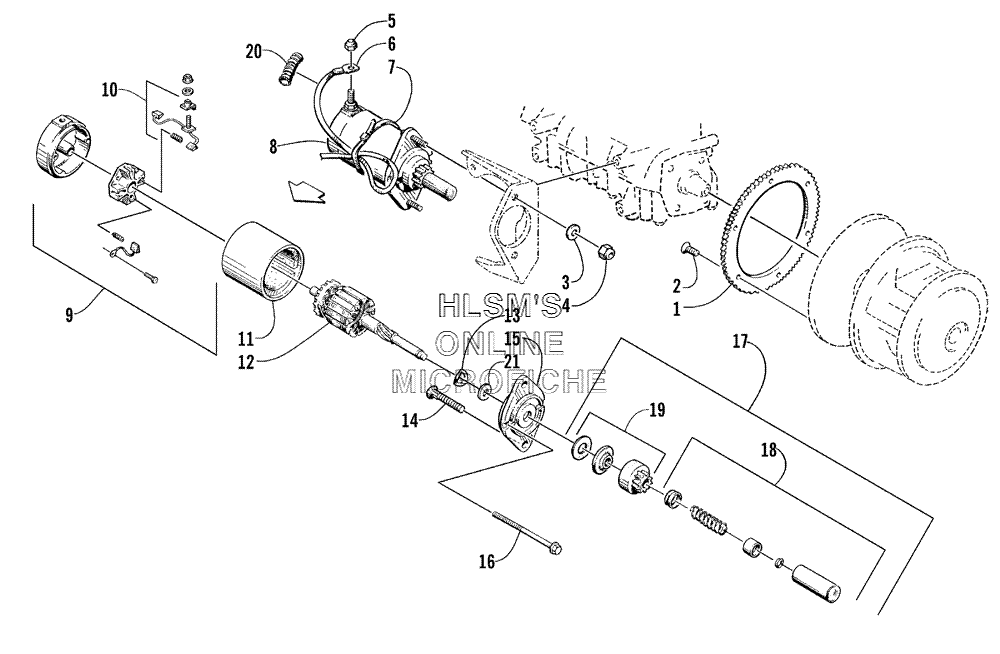

ELECTRIC START - STARTER MOTOR ASSEMBLY (OPTIONAL) для Arctic Cat PANTHER 370 R - 2003 года выпуска`
-
№АртикулНазвание
-
-1639-908 ELECTRIC START KITELECTRIC START KIT
-
10645-168 GEAR, RINGGEAR, RING
-
20623-441 SCREW, MACHINESCREW, MACHINE
-
38050-242 WASHERWASHER
-
48040-426 NUT, LOCKNUT, LOCK
-
50623-122 NUTNUT
-
60645-244 CABLE, SOLENOID/STARTERCABLE, SOLENOID/STARTER
-
70623-144 CABLE TIE, 17.5 IN.CABLE TIE, 17.5 IN.
-
80745-052 MOTOR, STARTER (INC. 9, 19 AND 21)MOTOR, STARTER (INC. 9, 19 AND 21)
-
90645-277 CAP, COMMUTATOR (INC. 10)CAP, COMMUTATOR (INC. 10)
-
100645-275 BRUSH AND SPRING KITBRUSH AND SPRING KIT
-
120645-189 ARMATUREARMATURE
-
130645-126 WASHER, WAVEWASHER, WAVE
-
140623-093 BOLT, RIBBEDBOLT, RIBBED
-
150645-188 CAP, DRIVECAP, DRIVE
-
160645-191 BOLT, STARTER MOTORBOLT, STARTER MOTOR
-
170745-145 PINION DRIVE ASSY (INC. 18, 19)PINION DRIVE ASSY (INC. 18, 19)
-
180645-186 PINION STOPPER KITPINION STOPPER KIT
-
190745-146 PINION DRIVE KITPINION DRIVE KIT
-
200716-391 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
210645-127 WASHER, THRUSTWASHER, THRUST
