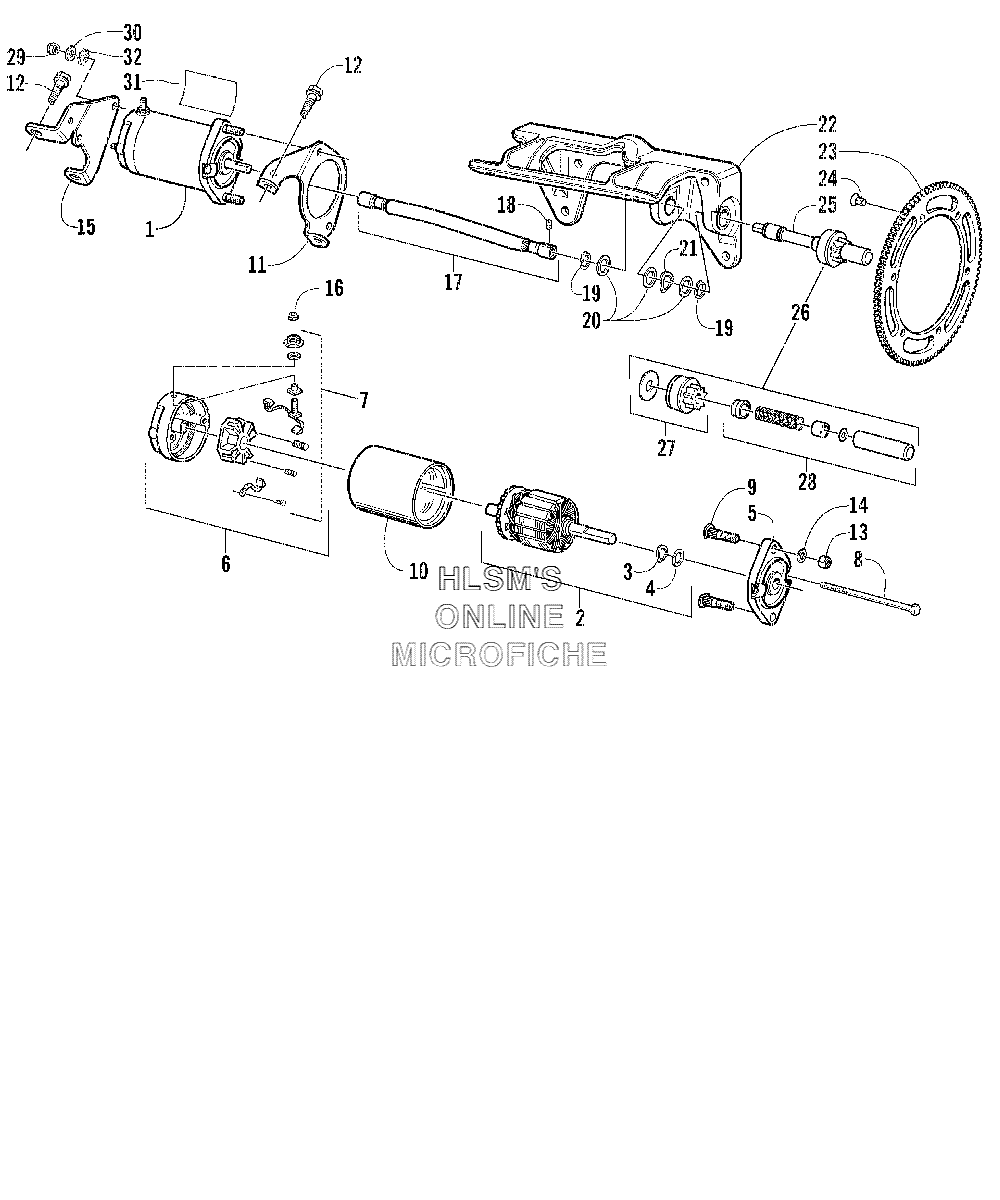

FLEX-DRIVE STARTER MOTOR ASSEMBLY для Arctic Cat PANTERA 800 EFI ESR - 2003 года выпуска`
-
№АртикулНазвание
-
10745-143 MOTOR, STARTER (INC. 2, 10)MOTOR, STARTER (INC. 2, 10)
-
20645-296 ARMATURE ASSEMBLY (INC. 3, 4)ARMATURE ASSEMBLY (INC. 3, 4)
-
30645-131 WASHER, WAVEWASHER, WAVE
-
40645-293 WASHER, THRUSTWASHER, THRUST
-
50645-297 CAP, DRIVECAP, DRIVE
-
60645-313 CAP, COMMUTATOR (INC. 7)CAP, COMMUTATOR (INC. 7)
-
70645-275 KIT, BRUSH AND SPRINGKIT, BRUSH AND SPRING
-
80645-128 THROUGH, BOLTTHROUGH, BOLT
-
90623-093 BOLT, RIBBEDBOLT, RIBBED
-
110745-197 BRACKET, MOUNTING, STARTER MOTORBRACKET, MOUNTING, STARTER MOTOR
-
120623-765 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
138040-426 NUT, LOCKNUT, LOCK
-
148050-242 WASHERWASHER
-
150745-198 BRACKET, MOUNTINGBRACKET, MOUNTING
-
160623-122 NUT, LOCKNUT, LOCK
-
170745-157 SHAFT, FLEX, DRIVE (INC. 18)SHAFT, FLEX, DRIVE (INC. 18)
-
180623-891 SCREW, SET, SOCKETSCREW, SET, SOCKET
-
190645-256 RING, SNAPRING, SNAP
-
200645-254 WASHER, THRUSTWASHER, THRUST
-
210645-255 WASHER, WAVEWASHER, WAVE
-
220745-142 BRACKET, ENGINE MOUNTING (FRONT)BRACKET, ENGINE MOUNTING (FRONT)
-
230645-329 RING GEARRING GEAR
-
240623-441 SCREW, MACHINE, SOCKET HEADSCREW, MACHINE, SOCKET HEAD
-
250745-150 DRIVE, PINION, FLEX, DRIVE SHAFT (INC. 26, 28)DRIVE, PINION, FLEX, DRIVE SHAFT (INC. 26, 28)
-
260745-145 KIT, PINION DRIVE ASSEMBLY (INC. 27, 28)KIT, PINION DRIVE ASSEMBLY (INC. 27, 28)
-
270745-146 PINION DRIVE ASSEMBLYPINION DRIVE ASSEMBLY
-
280645-186 PINION STOPPER ASSEMBLYPINION STOPPER ASSEMBLY
-
298041-366 NUT, LOCKNUT, LOCK
-
308050-217 WASHERWASHER
-
310716-344 TAPE, FOILTAPE, FOIL
-
328053-212 WASHER, LOCK, EXTERNAL TOOTHWASHER, LOCK, EXTERNAL TOOTH
