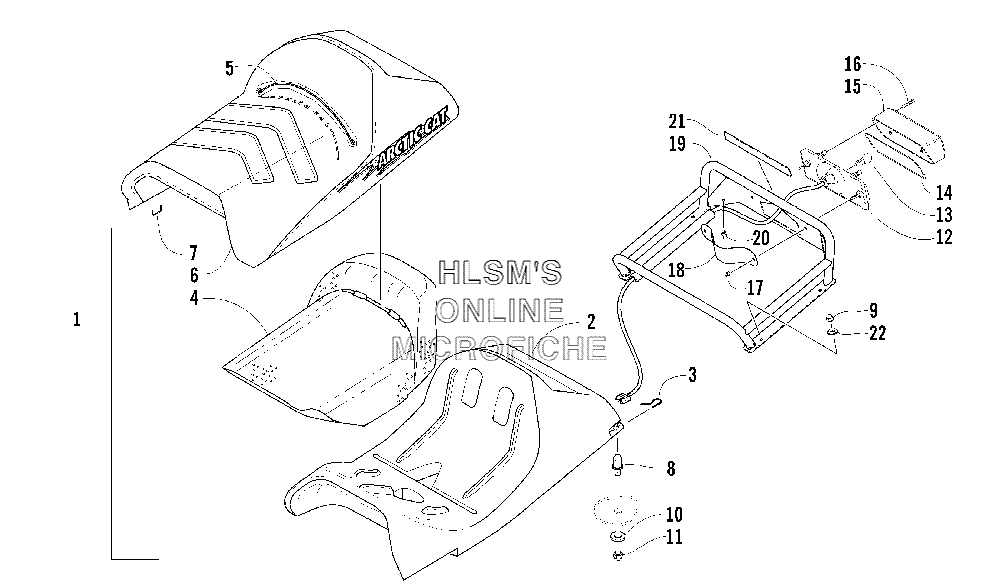

SEAT- RACK- AND TAILLIGHT ASSEMBLY для Arctic Cat MOUNTAIN CAT 900 (BLACK-RED 151) - 2003 года выпуска`
-
№АртикулНазвание
-
-1718-333 COMPLETE SEAT ASSY (BLACK/RED)COMPLETE SEAT ASSY (BLACK/RED)
-
11718-333 COMPLETE SEAT ASSY (INC. 2, 7) (BLACK/RED)COMPLETE SEAT ASSY (INC. 2, 7) (BLACK/RED)
-
22606-599 SEAT, BASE W/FOAMSEAT, BASE W/FOAM
-
31623-056 CLIP, RETAINING, SEAT, BASECLIP, RETAINING, SEAT, BASE
-
41706-909 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
51606-150 WIRE, SEATWIRE, SEAT
-
61706-391 COVER, SEAT (BLACK/RED)COVER, SEAT (BLACK/RED)
-
70624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
81623-076 STUD, LATCH, SEAT, BASESTUD, LATCH, SEAT, BASE
-
90123-108 NUT, CAPNUT, CAP
-
108050-242 WASHERWASHER
-
118041-426 NUT, LOCKNUT, LOCK
-
120609-091 TAILLIGHT W/SOCKET ASSYTAILLIGHT W/SOCKET ASSY
-
130109-460 BULBBULB
-
140609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
150609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
160609-093 SCREW, RETAININGSCREW, RETAINING
-
170623-038 NUT W/WASHERNUT W/WASHER
-
182606-704 PLATE, PROTECTIVE, TAILLIGHTPLATE, PROTECTIVE, TAILLIGHT
-
191706-195 RACK (UNPAINTED)RACK (UNPAINTED)
-
200623-101 CLIP, ROUTING, SNAP (INNER)CLIP, ROUTING, SNAP (INNER)
-
213611-924 DECAL, CAUTION, RACKDECAL, CAUTION, RACK
-
228050-217 WASHERWASHER
