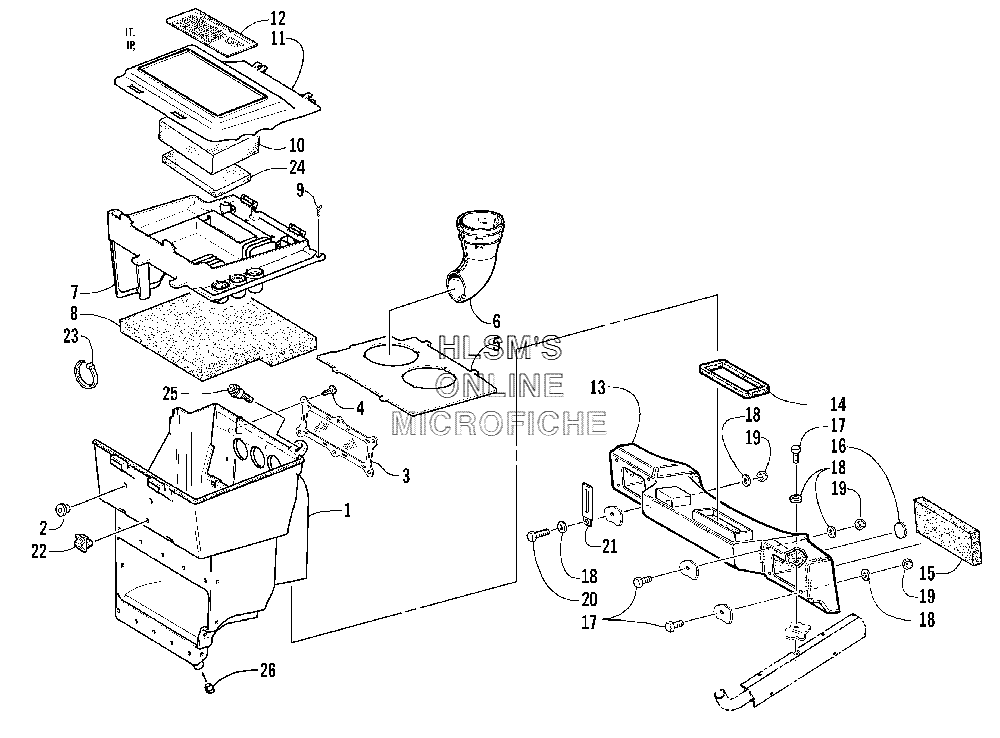

AIR SILENCER ASSEMBLY для Arctic Cat MOUNTAIN CAT 900 (BLACK-RED 144) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-635 SILENCER, AIR, ASSY (INC. 2, 4)
    SILENCER, AIR, ASSY (INC. 2, 4)
  • 2
    0623-529 INSERT
    INSERT
  • 3
    1670-517 SCREEN, AIR SILENCER
    SCREEN, AIR SILENCER
  • 4
    0623-165 CLIP, RETAINING
    CLIP, RETAINING
  • 5
    1670-461 BAFFLE, AIR SILENCER
    BAFFLE, AIR SILENCER
  • 6
    0670-617 FUNNEL, AIR SILENCER
    FUNNEL, AIR SILENCER
  • 7
    1670-424 COVER, AIR SILENCER
    COVER, AIR SILENCER
  • 8
    0617-430 FOAM, AIR SILENCER, COVER
    FOAM, AIR SILENCER, COVER
  • 9
    0623-882 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 10
    0617-439 FOAM, TOOL TRAY
    FOAM, TOOL TRAY
  • 11
    1670-425 COVER, TOOL TRAY
    COVER, TOOL TRAY
  • 12
    5611-112 DECAL, JET CHART
    DECAL, JET CHART
  • 13
    1670-428 PLENUM, AIR SILENCER
    PLENUM, AIR SILENCER
  • 14
    0617-436 SEAL, AIR SILENCER PLENUM
    SEAL, AIR SILENCER PLENUM
  • 15
    0617-270 FOAM, PLENUM, INTAKE
    FOAM, PLENUM, INTAKE
  • 16
    0623-078 DISC, VELCRO
    DISC, VELCRO
  • 17
    8002-039 SCREW, CAP
    SCREW, CAP
  • 18
    8050-222 WASHER
    WASHER
  • 19
    8041-366 NUT, LOCK
    NUT, LOCK
  • 20
    8002-041 SCREW, CAP
    SCREW, CAP
  • 21
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
  • 22
    0623-403 CLAMP, PUSH, MOUNT
    CLAMP, PUSH, MOUNT
  • 23
    0123-788 CABLE TIE, 7.5 IN.
    CABLE TIE, 7.5 IN.
  • 24
    0617-440 FOAM, TOOL TRAY
    FOAM, TOOL TRAY
  • 25
    0623-780 SCREW, SHOULDER
    SCREW, SHOULDER
  • 26
    1606-038 BUMPER, AIR SILENCER
    BUMPER, AIR SILENCER
