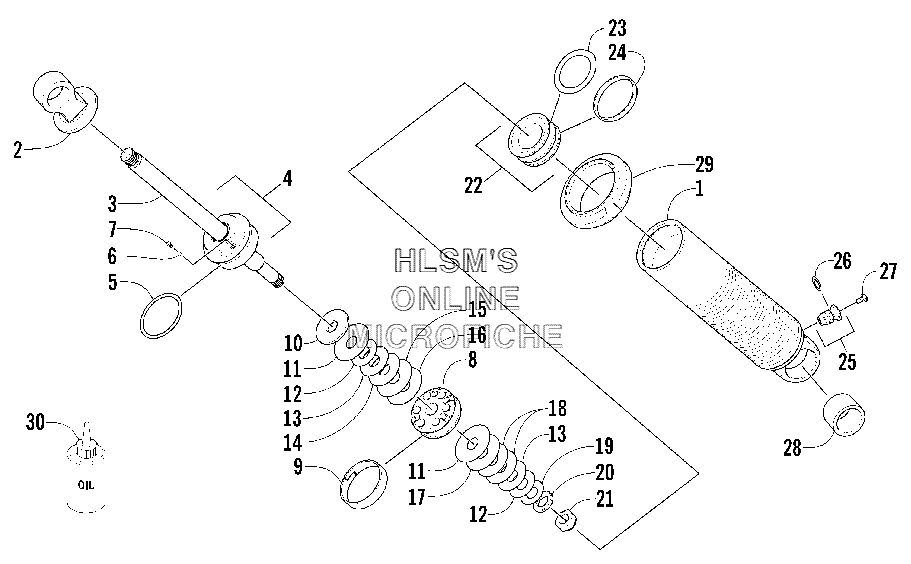

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat MOUNTAIN CAT 900 1M (BLACK-ORANGE 159) - 2003 года выпуска

  • №
    Артикул
    Название
  • -
    0704-800 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • 1
    2604-169 BODY, SHOCK
    BODY, SHOCK
  • 2
    1604-825 EYELET, SHOCK
    EYELET, SHOCK
  • 3
    2604-155 ROD, SHOCK
    ROD, SHOCK
  • 4
    0704-837 CAP, SHOCK (INC. 5, 7)
    CAP, SHOCK (INC. 5, 7)
  • 5
    1604-271 O-RING
    O-RING
  • 6
    2604-276 BALL, CHECK
    BALL, CHECK
  • 7
    2604-277 SCREW, SET
    SCREW, SET
  • 8
    0603-952 PISTON, 0.059 IN., ORIFICE
    PISTON, 0.059 IN., ORIFICE
  • 9
    1604-274 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 10
    1604-272 WASHER, TOP OUT
    WASHER, TOP OUT
  • 11
    2603-125 VALVE, 1.250 X 0.010 IN.
    VALVE, 1.250 X 0.010 IN.
  • 12
    2603-055 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 13
    2603-065 VALVE, 0.900 X 0.010 IN.
    VALVE, 0.900 X 0.010 IN.
  • 14
    2603-076 VALVE, 1.000 X 0.012 IN.
    VALVE, 1.000 X 0.012 IN.
  • 15
    2603-096 VALVE, 1.100 X 0.012 IN.
    VALVE, 1.100 X 0.012 IN.
  • 16
    2603-136 VALVE, 1.300 X 0.012 IN.
    VALVE, 1.300 X 0.012 IN.
  • 17
    2603-095 VALVE, 1.100 X 0.010 IN.
    VALVE, 1.100 X 0.010 IN.
  • 18
    2603-075 VALVE, 1.000 X 0.010 IN.
    VALVE, 1.000 X 0.010 IN.
  • 19
    2603-045 VALVE, 0.700 X 0.010 IN.
    VALVE, 0.700 X 0.010 IN.
  • 20
    1604-273 WASHER, BACKUP
    WASHER, BACKUP
  • 21
    0623-696 NUT, LOCK
    NUT, LOCK
  • 22
    0704-791 PISTON, BLEEDLESS, ASSY (INC. 23, 24)
    PISTON, BLEEDLESS, ASSY (INC. 23, 24)
  • 23
    2604-152 O-RING
    O-RING
  • 24
    2604-153 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 25
    0704-796 VALVE, PRESSURE (INC. 26)
    VALVE, PRESSURE (INC. 26)
  • 26
    2604-162 O-RING, VALVE
    O-RING, VALVE
  • 27
    0624-546 SCREW, MACHINE
    SCREW, MACHINE
  • 28
    1604-791 BUSHING, SHOCK
    BUSHING, SHOCK
  • 29
    1603-911 NUT, SPRING ADJUSTER
    NUT, SPRING ADJUSTER
  • 30
    1639-245 OIL, GAS SHOCK, 6 QT CASE
    OIL, GAS SHOCK, 6 QT CASE
