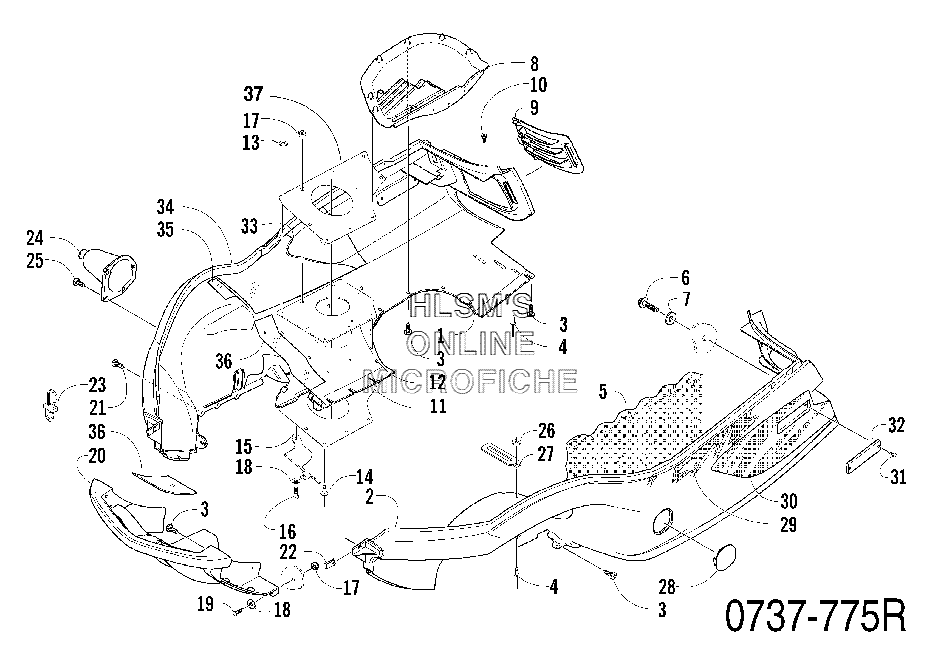

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat MOUNTAIN CAT 800 EFI (INTERNATIONAL) - 2003 года выпуска`
-
№АртикулНазвание
-
12706-152 BELLY PAN (RIGHT) (SILVER)BELLY PAN (RIGHT) (SILVER)
-
21706-389 BELLY PAN (LEFT) (SILVER)BELLY PAN (LEFT) (SILVER)
-
30623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
48061-508 RIVETRIVET
-
50617-315 FOAM, BELLY PAN (LEFT)FOAM, BELLY PAN (LEFT)
-
60623-647 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
70623-184 WASHERWASHER
-
82606-856 GUARD, DROPCASEGUARD, DROPCASE
-
92606-734 LOUVER, AIR, INTAKE (RIGHT) (SILVER)LOUVER, AIR, INTAKE (RIGHT) (SILVER)
-
92606-735 LOUVER, AIR, INTAKE (LEFT) (SILVER)LOUVER, AIR, INTAKE (LEFT) (SILVER)
-
100623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
110712-967 SHIELD, EXHAUST (LOWER)SHIELD, EXHAUST (LOWER)
-
121612-680 SEAL, EXHAUST, OUTLETSEAL, EXHAUST, OUTLET
-
130623-290 WASHERWASHER
-
148061-410 RIVETRIVET
-
151612-682 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
168002-041 SCREW, CAPSCREW, CAP
-
178041-366 NUT, LOCKNUT, LOCK
-
188050-222 WASHERWASHER
-
198002-040 SCREW, CAPSCREW, CAP
-
202606-737 BUMPER (FRONT) (PEWTER)BUMPER (FRONT) (PEWTER)
-
210623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
220623-427 NUT, UNUT, U
-
230623-285 CABLE TIE, DOUBLE LOOPCABLE TIE, DOUBLE LOOP
-
240605-332 BOOT, STEERING (RIGHT)BOOT, STEERING (RIGHT)
-
240605-333 BOOT, STEERING (LEFT)BOOT, STEERING (LEFT)
-
250623-564 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
260123-149 WASHERWASHER
-
273002-964 CLAMP, WIRECLAMP, WIRE
-
282606-747 PANEL, CLUTCH ACCESS (SILVER)PANEL, CLUTCH ACCESS (SILVER)
-
294611-542 DECAL, BELLY PAN (UPPER/RIGHT) (BLACK/RED) (INTER)DECAL, BELLY PAN (UPPER/RIGHT) (BLACK/RED) (INTER)
-
294611-543 DECAL, BELLY PAN (UPPER/LEFT) (BLACK/RED) (INTER)DECAL, BELLY PAN (UPPER/LEFT) (BLACK/RED) (INTER)
-
304611-540 DECAL, BELLY PAN (LOWER/RIGHT)DECAL, BELLY PAN (LOWER/RIGHT)
-
304611-541 DECAL, BELLY PAN (LOWER/LEFT)DECAL, BELLY PAN (LOWER/LEFT)
-
310623-269 CLIP, RETAININGCLIP, RETAINING
-
320606-526 REFLECTOR (FRONT) (AMBER)REFLECTOR (FRONT) (AMBER)
-
332606-375 FOIL, PROTECTIVE (UPPER/REAR)FOIL, PROTECTIVE (UPPER/REAR)
-
342606-376 FOIL, PROTECTIVE (UPPER/FRONT)FOIL, PROTECTIVE (UPPER/FRONT)
-
352606-387 FOIL, PROTECTIVE (LOWER/FRONT)FOIL, PROTECTIVE (LOWER/FRONT)
-
360619-206 TAPE, FOILTAPE, FOIL
-
371712-027 SHIELD, EXHAUST (UPPER)SHIELD, EXHAUST (UPPER)
