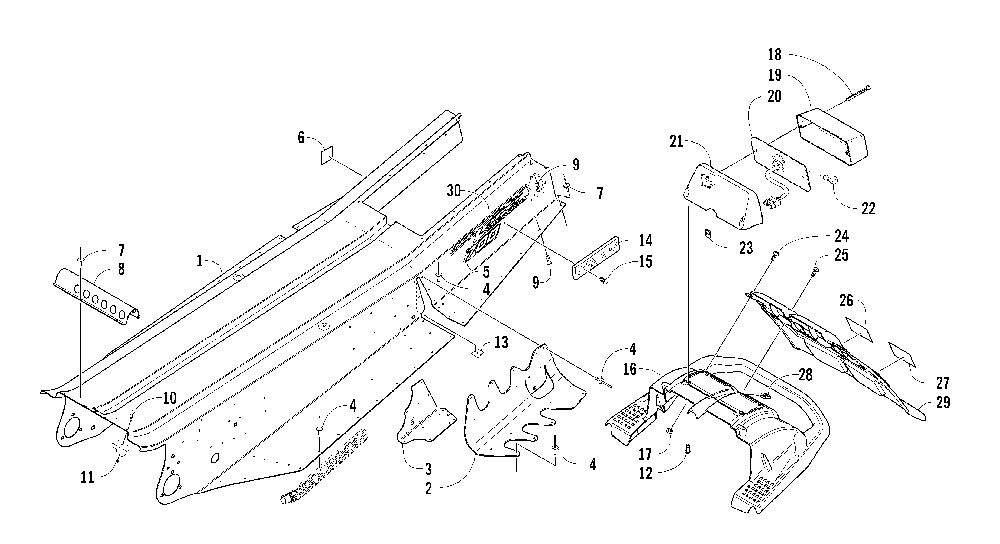

TUNNEL- REAR BUMPER- AND TAILLIGHT ASSEMBLY для Arctic Cat FIRECAT 700 EFI SNO PRO (RED) - 2003 года выпуска
-
№АртикулНазвание
-
11718-364 TUNNEL ASSEMBLY (INC. 2, 4)TUNNEL ASSEMBLY (INC. 2, 4)
-
22606-616 BRACKET, SUSPENSION MOUNTING (RIGHT) (REAR)BRACKET, SUSPENSION MOUNTING (RIGHT) (REAR)
-
22606-617 BRACKET, SUSPENSION MOUNTING (LEFT) (REAR)BRACKET, SUSPENSION MOUNTING (LEFT) (REAR)
-
32706-136 PLATE, BACKING (RIGHT)PLATE, BACKING (RIGHT)
-
32706-137 PLATE, BACKING (LEFT)PLATE, BACKING (LEFT)
-
40623-072 RIVETRIVET
-
40623-806 RIVETRIVET
-
48060-506 RIVETRIVET
-
54611-871 DECAL, TUNNELDECAL, TUNNEL
-
60411-053 DECAL, CEDECAL, CE
-
78060-484 RIVETRIVET
-
82606-938 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
91623-022 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
108017-399 SCREW, MACHINESCREW, MACHINE
-
118040-246 NUT, LOCKNUT, LOCK
-
121623-109 SCREWSCREW
-
132606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
140606-029 REFLECTOR (REAR) (RED)REFLECTOR (REAR) (RED)
-
150623-269 CLIP, RETAININGCLIP, RETAINING
-
162606-922 BUMPER (REAR)BUMPER (REAR)
-
178041-366 NUT, LOCKNUT, LOCK
-
180623-204 SCREW, MACHINESCREW, MACHINE
-
190609-229 LENS, TAILLIGHTLENS, TAILLIGHT
-
200609-230 TAILLIGHT W/SOCKET ASSEMBLYTAILLIGHT W/SOCKET ASSEMBLY
-
210609-622 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
220109-460 BULB, TAILLIGHTBULB, TAILLIGHT
-
231623-023 NUT, SPEEDNUT, SPEED
-
248017-579 SCREW, MACHINESCREW, MACHINE
-
258017-577 SCREW, MACHINESCREW, MACHINE
-
261611-567 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
271611-566 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
280623-363 NUT, SPEEDNUT, SPEED
-
292606-830 SNOWFLAP W/DECAL (GREEN)SNOWFLAP W/DECAL (GREEN)
-
292606-831 SNOWFLAP W/DECAL (BLACK/RED) (INTERNATIONAL)SNOWFLAP W/DECAL (BLACK/RED) (INTERNATIONAL)
-
304611-899 DECAL, "SNO PRO"DECAL, "SNO PRO"
