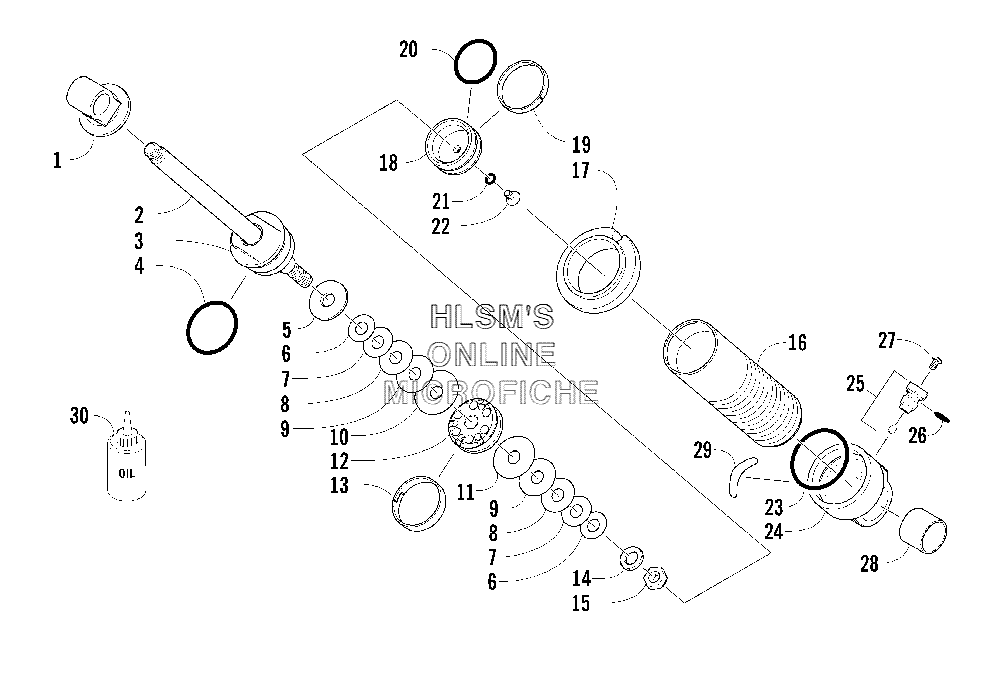

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat FIRECAT 700 EFI (BLACK) - 2003 года выпуска

  • №
    Артикул
    Название
  • -
    0704-903 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • 1
    1604-796 EYELET, SHOCK
    EYELET, SHOCK
  • 2
    2604-365 ROD, SHOCK
    ROD, SHOCK
  • 3
    0704-386 CAP, SHOCK (INC. 4)
    CAP, SHOCK (INC. 4)
  • 4
    1604-271 O-RING
    O-RING
  • 5
    1604-272 WASHER, TOP OUT
    WASHER, TOP OUT
  • 6
    2603-055 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 7
    2603-065 VALVE, 0.900 X 0.010 IN.
    VALVE, 0.900 X 0.010 IN.
  • 8
    2603-075 VALVE, 1.000 X 0.010 IN.
    VALVE, 1.000 X 0.010 IN.
  • 9
    2603-095 VALVE, 1.100 X 0.010 IN.
    VALVE, 1.100 X 0.010 IN.
  • 10
    2603-135 VALVE, 1.300 X 0.010 IN.
    VALVE, 1.300 X 0.010 IN.
  • 11
    2603-125 VALVE, 1.250 X 0.010 IN.
    VALVE, 1.250 X 0.010 IN.
  • 12
    0603-953 PISTON, 0.093 IN., ORIFICE
    PISTON, 0.093 IN., ORIFICE
  • 13
    1604-274 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 14
    1604-273 WASHER, BACKUP
    WASHER, BACKUP
  • 15
    0623-696 NUT, LOCK
    NUT, LOCK
  • 16
    2604-363 BODY, SHOCK
    BODY, SHOCK
  • 17
    0603-960 NUT, SPRING ADJUSTER
    NUT, SPRING ADJUSTER
  • 18
    1604-276 PISTON, FLOATING
    PISTON, FLOATING
  • 19
    1604-278 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 20
    1604-277 O-RING
    O-RING
  • 21
    0423-182 O-RING
    O-RING
  • 22
    0623-697 SCREW, RELIEF
    SCREW, RELIEF
  • 23
    1604-280 O-RING, END CAP
    O-RING, END CAP
  • 24
    1604-294 END CAP, SHOCK
    END CAP, SHOCK
  • 25
    0704-383 VALVE, PRESSURE (INC. 26)
    VALVE, PRESSURE (INC. 26)
  • 26
    1604-284 O-RING, VALVE
    O-RING, VALVE
  • 27
    0624-433 SCREW, MACHINE
    SCREW, MACHINE
  • 28
    1604-791 SLEEVE, SHOCK EYELET
    SLEEVE, SHOCK EYELET
  • 29
    3611-007 DECAL, WARNING
    DECAL, WARNING
  • 30
    2639-151 OIL, GAS SHOCK, 6 QT CASE
    OIL, GAS SHOCK, 6 QT CASE
