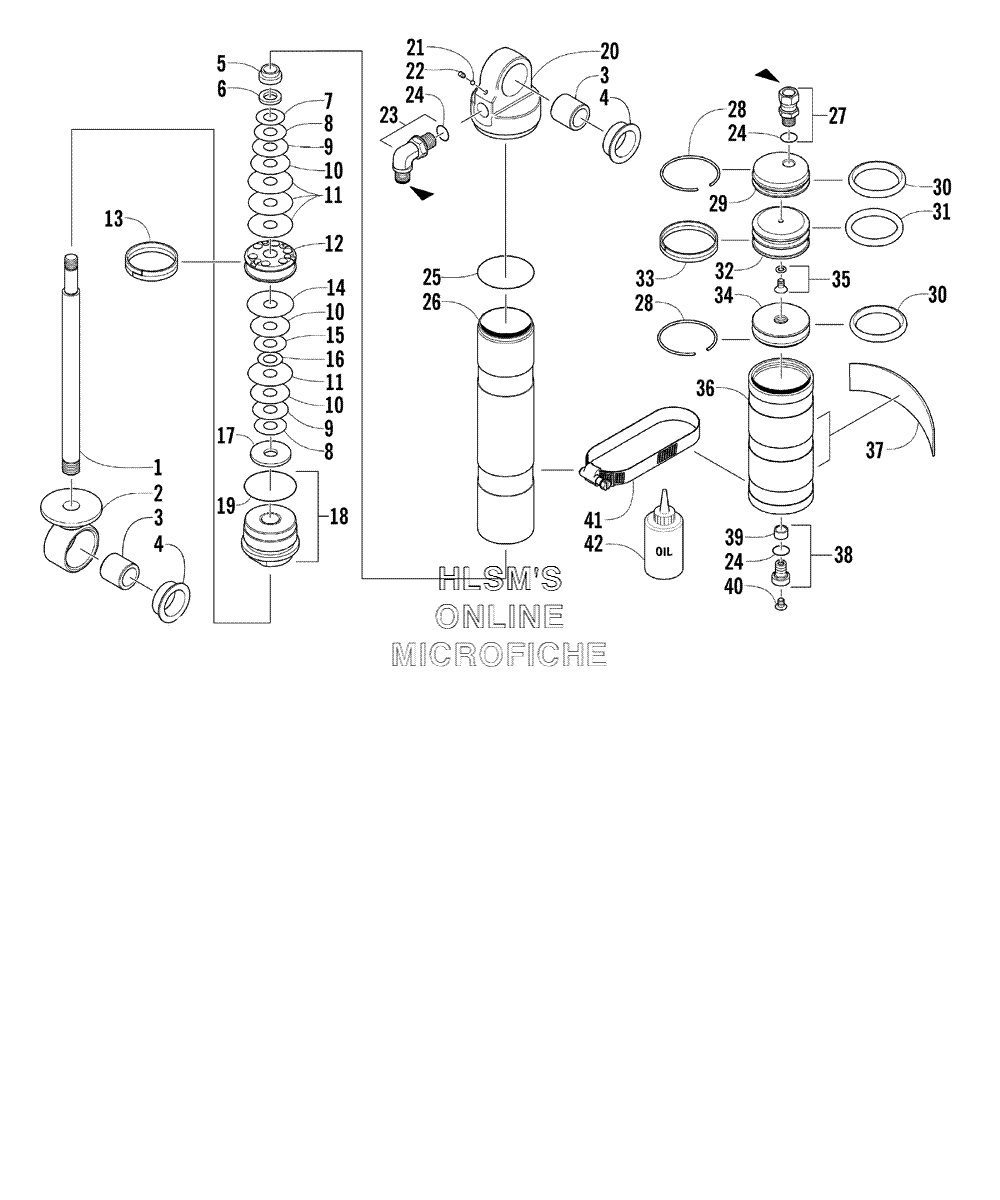

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat FIRECAT 500 SNO PRO (GREEN) - 2003 года выпуска

  • №
    Артикул
    Название
  • -
    0704-932 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • 1
    2604-421 ROD, SHOCK
    ROD, SHOCK
  • 2
    0604-893 EYELET, SHOCK
    EYELET, SHOCK
  • 3
    2604-424 SLEEVE, SHOCK
    SLEEVE, SHOCK
  • 4
    1604-222 BUSHING, SHOCK
    BUSHING, SHOCK
  • 5
    0603-301 NUT, LOCK
    NUT, LOCK
  • 6
    0603-389 WASHER, BACKUP
    WASHER, BACKUP
  • 7
    0603-335 VALVE, SHOCK 0.800 X 0.010 IN.
    VALVE, SHOCK 0.800 X 0.010 IN.
  • 8
    0603-338 VALVE, SHOCK 0.900 X 0.008 IN.
    VALVE, SHOCK 0.900 X 0.008 IN.
  • 9
    0603-341 VALVE, SHOCK 1.000 X 0.010 IN.
    VALVE, SHOCK 1.000 X 0.010 IN.
  • 10
    0603-344 VALVE, SHOCK 1.100 X 0.010 IN.
    VALVE, SHOCK 1.100 X 0.010 IN.
  • 11
    0603-347 VALVE, SHOCK 1.250 X 0.010 IN.
    VALVE, SHOCK 1.250 X 0.010 IN.
  • 12
    0603-204 PISTON, 0.041 IN., ORIFICE
    PISTON, 0.041 IN., ORIFICE
  • 13
    0603-292 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 14
    0603-350 VALVE, SHOCK 1.300 X 0.010 IN.
    VALVE, SHOCK 1.300 X 0.010 IN.
  • 15
    0603-337 VALVE, SHOCK 0.900 X 0.010 IN.
    VALVE, SHOCK 0.900 X 0.010 IN.
  • 16
    0603-330 VALVE, SHOCK 0.700 X 0.006 IN.
    VALVE, SHOCK 0.700 X 0.006 IN.
  • 17
    0603-540 WASHER, TOP OUT
    WASHER, TOP OUT
  • 18
    2604-413 END CAP, SHOCK (INC. 19)
    END CAP, SHOCK (INC. 19)
  • 19
    1604-420 O-RING
    O-RING
  • 20
    2604-436 END CAP, SHOCK
    END CAP, SHOCK
  • 21
    1604-315 BALL, ADJUSTER
    BALL, ADJUSTER
  • 22
    1603-940 SET SCREW
    SET SCREW
  • 23
    2604-420 FITTING, ELBOW (INC. ONE NO. 24)
    FITTING, ELBOW (INC. ONE NO. 24)
  • 24
    1604-318 O-RING
    O-RING
  • 25
    0603-438 O-RING, END CAP
    O-RING, END CAP
  • 26
    2604-422 BODY, SHOCK
    BODY, SHOCK
  • 27
    2604-208 FITTING, SHOCK (INC. ONE NO. 24)
    FITTING, SHOCK (INC. ONE NO. 24)
  • 28
    0604-992 RING, RETAINING
    RING, RETAINING
  • 29
    2604-419 END CAP, RESERVOIR
    END CAP, RESERVOIR
  • 30
    0603-671 O-RING
    O-RING
  • 31
    1603-236 O-RING
    O-RING
  • 32
    2604-517 PISTON, RESERVOIR
    PISTON, RESERVOIR
  • 33
    1603-235 STRAP, PISTON
    STRAP, PISTON
  • 34
    1603-936 END CAP, RESERVOIR
    END CAP, RESERVOIR
  • 35
    1604-316 SCREW, RELIEF, W/O-RING
    SCREW, RELIEF, W/O-RING
  • 36
    1603-935 BODY, RESERVOIR
    BODY, RESERVOIR
  • 37
    1603-932 DECAL, SHOCK
    DECAL, SHOCK
  • 38
    0703-341 VALVE, PRESSURE, ASSEMBLY (INC. 39 AND ONE NO. 24)
    VALVE, PRESSURE, ASSEMBLY (INC. 39 AND ONE NO. 24)
  • 40
    0624-097 SCREW, MACHINE
    SCREW, MACHINE
  • 41
    0214-032 CLAMP, RESERVOIR
    CLAMP, RESERVOIR
  • 42
    1639-245 OIL, GAS SHOCK, 6 QT CASE
    OIL, GAS SHOCK, 6 QT CASE
