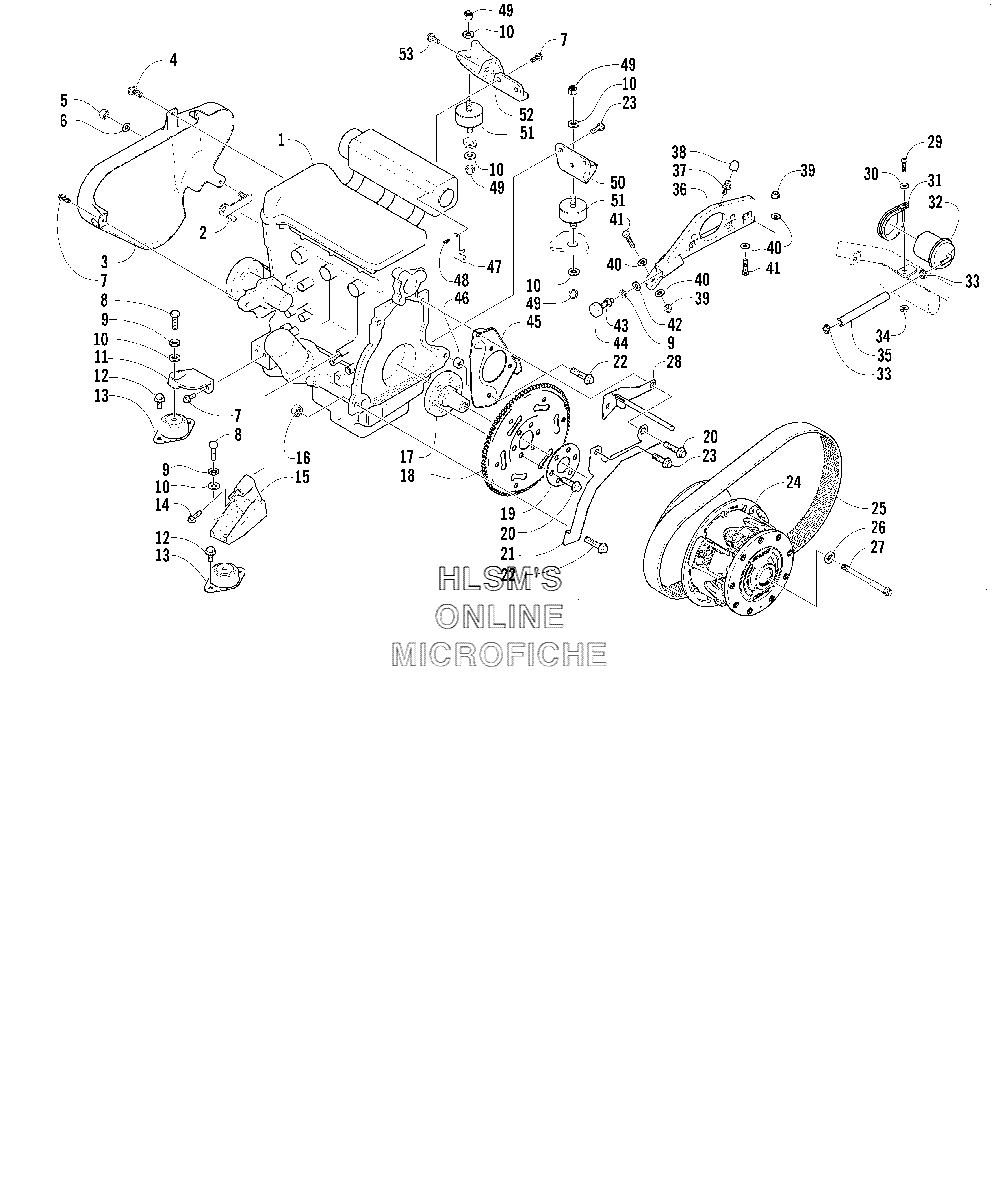

ENGINE AND RELATED PARTS для Arctic Cat BEARCAT WIDE TRACK - 2003 года выпуска`
-
№АртикулНазвание
-
10662-327 ENGINE 660 L/CENGINE 660 L/C
-
21706-930 BRACKET, ENGINE BELT COVERBRACKET, ENGINE BELT COVER
-
32606-720 COVER, ENGINE BELTCOVER, ENGINE BELT
-
48408-616 SCREW, SHOULDERSCREW, SHOULDER
-
50624-250 NUT, LOCKNUT, LOCK
-
68050-217 WASHERWASHER
-
78408-820 SCREW, CAPSCREW, CAP
-
88002-221 SCREW, CAPSCREW, CAP
-
98051-277 WASHER, LOCKWASHER, LOCK
-
108050-277 WASHERWASHER
-
110708-125 BRACKET, ENGINE MOUNTING (RIGHT) (FRONT)BRACKET, ENGINE MOUNTING (RIGHT) (FRONT)
-
120623-765 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
130608-347 MOUNT, ENGINE (FRONT)MOUNT, ENGINE (FRONT)
-
148408-850 SCREW, CAPSCREW, CAP
-
150708-408 BRACKET, ENGINE MOUNTING (LEFT) (FRONT)BRACKET, ENGINE MOUNTING (LEFT) (FRONT)
-
168428-002 NUTNUT
-
171670-245 ADAPTER, PTOADAPTER, PTO
-
180745-192 GEAR, RINGGEAR, RING
-
190745-187 SPACERSPACER
-
208409-030 SCREW, CAPSCREW, CAP
-
210745-209 GUARD, RING GEARGUARD, RING GEAR
-
228409-040 SCREW, CAPSCREW, CAP
-
238409-020 SCREW, CAPSCREW, CAP
-
240725-377 CLUTCH, DRIVECLUTCH, DRIVE
-
250627-026 BELT, DRIVEBELT, DRIVE
-
260623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
270623-804 BOLT, DRIVE CLUTCHBOLT, DRIVE CLUTCH
-
280707-702 BRACKET, MOUNTING, BELT GUARDBRACKET, MOUNTING, BELT GUARD
-
298002-040 SCREW, CAPSCREW, CAP
-
308050-222 WASHERWASHER
-
311623-134 CLAMP, FUEL FILTERCLAMP, FUEL FILTER
-
321670-469 FILTER, FUELFILTER, FUEL
-
330610-419 CLAMP, HOSECLAMP, HOSE
-
341623-066 NUT, LOCKNUT, LOCK
-
350610-075 HOSE, GASLINE (10 FT)HOSE, GASLINE (10 FT)
-
360707-660 BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 37, 38)BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 37, 38)
-
370623-899 FITTING, GREASEFITTING, GREASE
-
380623-904 CAP, GREASE FITTINGCAP, GREASE FITTING
-
398040-426 NUT, LOCKNUT, LOCK
-
408050-247 WASHERWASHER
-
418002-132 SCREW, CAPSCREW, CAP
-
428050-282 WASHERWASHER
-
438042-516 NUTNUT
-
440608-358 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
450745-162 BRACKET, MOUNTING, STARTER MOTORBRACKET, MOUNTING, STARTER MOTOR
-
461623-063 BUSHINGBUSHING
-
472706-197 BRACKET, FILLER NECKBRACKET, FILLER NECK
-
488477-610 SCREW, CAPSCREW, CAP
-
498040-486 NUT, LOCKNUT, LOCK
-
500708-128 BRACKET, ENGINE MOUNTING (LEFT) (REAR)BRACKET, ENGINE MOUNTING (LEFT) (REAR)
-
510608-118 MOUNT, ENGINE (REAR)MOUNT, ENGINE (REAR)
-
520708-407 BRACKET, ENGINE MOUNTING (RIGHT) (REAR)BRACKET, ENGINE MOUNTING (RIGHT) (REAR)
-
538408-825 SCREW, CAPSCREW, CAP
