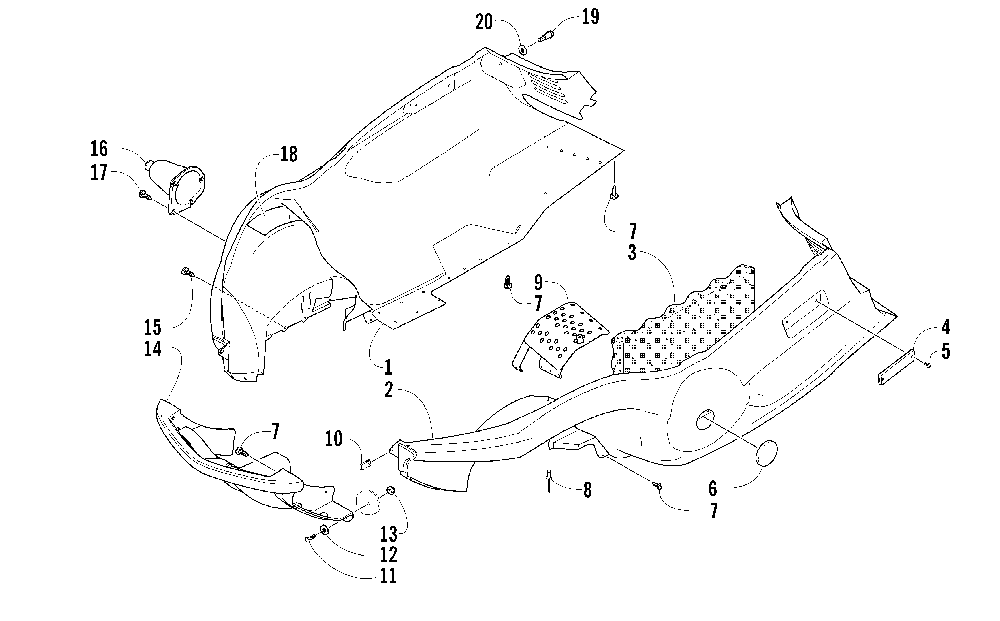

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat BEARCAT WIDE TRACK - 2003 года выпуска`
-
№АртикулНазвание
-
12606-540 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
12706-192 BELLY PAN (RIGHT) (INTERNATIONAL)BELLY PAN (RIGHT) (INTERNATIONAL)
-
22606-541 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
30617-315 FOAM, BELLY PAN (LEFT)FOAM, BELLY PAN (LEFT)
-
40606-526 REFLECTOR (FRONT) (AMBER)REFLECTOR (FRONT) (AMBER)
-
50623-269 CLIP, RETAININGCLIP, RETAINING
-
60623-600 PLUG, BELLY PANPLUG, BELLY PAN
-
70623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
88061-508 RIVETRIVET
-
90745-211 BRACKET, GUARDBRACKET, GUARD
-
100623-427 NUT, UNUT, U
-
118002-041 SCREW, CAPSCREW, CAP
-
128050-222 WASHERWASHER
-
138040-366 NUT, LOCKNUT, LOCK
-
141606-949 BUMPER (FRONT)BUMPER (FRONT)
-
150623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
160605-332 BOOT, STEERING (RIGHT)BOOT, STEERING (RIGHT)
-
160605-333 BOOT, STEERING (LEFT)BOOT, STEERING (LEFT)
-
170623-564 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
180619-206 TAPE, FOILTAPE, FOIL
-
190623-855 SCREW, SHOULDERSCREW, SHOULDER
-
208050-217 WASHERWASHER
