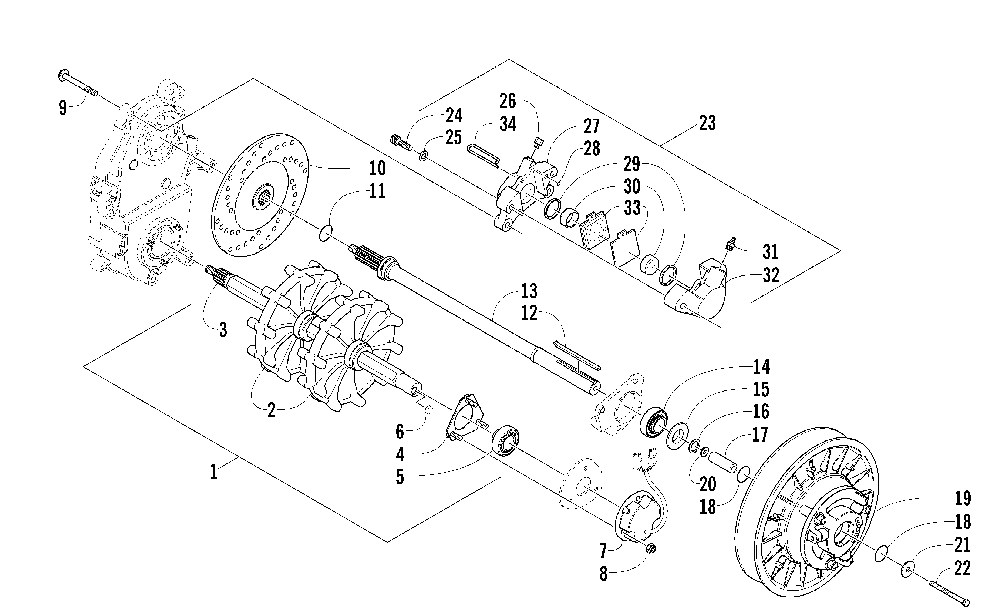

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat 440 SNO PRO L/C - 2003 года выпуска`
-
№АртикулНазвание
-
10728-084 TRACK DRIVE ASSEMBLY (INC. 2, 6)TRACK DRIVE ASSEMBLY (INC. 2, 6)
-
21602-453 SPROCKET, DRIVESPROCKET, DRIVE
-
31602-365 DRIVESHAFTDRIVESHAFT
-
40702-412 PLATE, FLANGEPLATE, FLANGE
-
51602-374 BEARING, 1 IN. W/O LOCK COLLARBEARING, 1 IN. W/O LOCK COLLAR
-
60630-167 MAGNETMAGNET
-
70630-170 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
88040-426 NUT, LOCKNUT, LOCK
-
98020-315 SCREW, CAPSCREW, CAP
-
101602-401 DISC, BRAKEDISC, BRAKE
-
111602-199 O-RINGO-RING
-
120101-076 KEYKEY
-
130702-484 SHAFT, DRIVEN (INC. 14, 15)SHAFT, DRIVEN (INC. 14, 15)
-
141602-233 BEARING, 1 IN. W/O LOCK COLLARBEARING, 1 IN. W/O LOCK COLLAR
-
151602-367 SPACERSPACER
-
160623-118 WASHERWASHER
-
160623-119 WASHERWASHER
-
170648-042 SHAFT, STUBSHAFT, STUB
-
180616-032 O-RINGO-RING
-
190726-146 CLUTCH, DRIVENCLUTCH, DRIVEN
-
200123-053 WASHERWASHER
-
210123-019 WASHERWASHER
-
228002-139 SCREW, CAPSCREW, CAP
-
230602-829 CALIPER, BRAKE ASSEMBLY (INC. 24, 34)CALIPER, BRAKE ASSEMBLY (INC. 24, 34)
-
248005-679 SCREW, CAPSCREW, CAP
-
258050-272 WASHERWASHER
-
260602-590 FITTING, ADAPTERFITTING, ADAPTER
-
280602-729 O-RING, HOUSINGO-RING, HOUSING
-
290602-583 O-RINGO-RING
-
300602-708 PISTONPISTON
-
310602-707 SCREW, BLEED, ASSEMBLYSCREW, BLEED, ASSEMBLY
-
330702-229 PAD, BRAKE, SET (INC. 34)PAD, BRAKE, SET (INC. 34)
-
340602-706 PIN, RETAININGPIN, RETAINING
