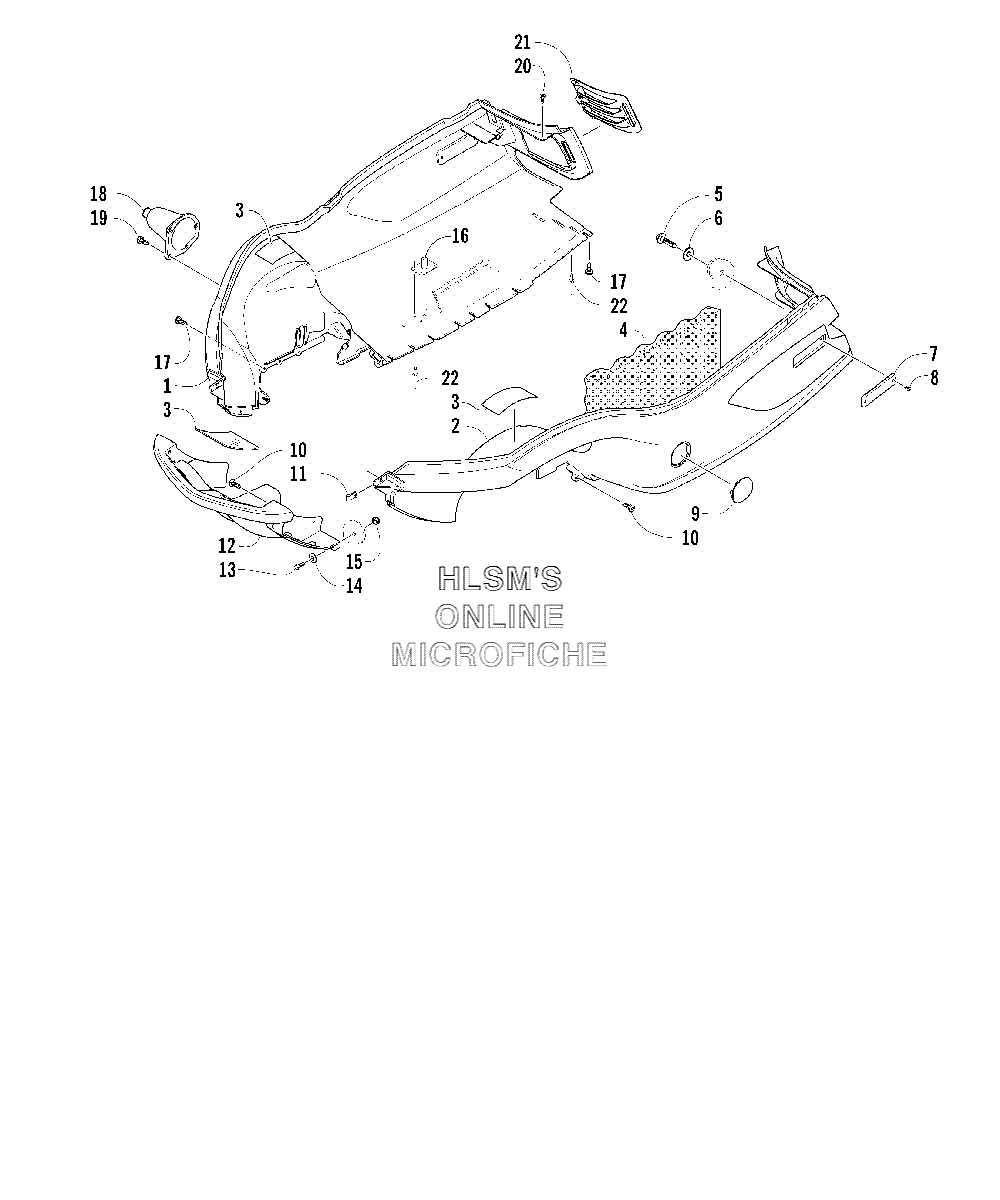

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat 4-STROKE TOURING (INTERNATIONAL) - 2003 года выпуска
-
№АртикулНазвание
-
12706-052 BELLY PAN (RIGHT) (BLACK)BELLY PAN (RIGHT) (BLACK)
-
12706-191 BELLY PAN (RIGHT) (BLACK) (INTERNATIONAL)BELLY PAN (RIGHT) (BLACK) (INTERNATIONAL)
-
21706-823 BELLY PAN (LEFT) (BLACK)BELLY PAN (LEFT) (BLACK)
-
30619-206 TAPE, FOILTAPE, FOIL
-
40617-315 FOAM, BELLY PAN (LEFT)FOAM, BELLY PAN (LEFT)
-
50623-647 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
60623-184 WASHERWASHER
-
70606-526 REFLECTOR (FRONT) (AMBER)REFLECTOR (FRONT) (AMBER)
-
80623-269 CLIP, RETAININGCLIP, RETAINING
-
91606-767 PANEL, CLUTCH ACCESS (BLACK)PANEL, CLUTCH ACCESS (BLACK)
-
100623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
110623-427 NUT, UNUT, U
-
121606-949 BUMPER (FRONT)BUMPER (FRONT)
-
138002-041 SCREW, CAPSCREW, CAP
-
148050-222 WASHERWASHER
-
158040-366 NUT, LOCKNUT, LOCK
-
160712-693 PLATE, DRAINPLATE, DRAIN
-
170623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
180605-332 BOOT, STEERING (RIGHT)BOOT, STEERING (RIGHT)
-
180605-333 BOOT, STEERING (LEFT)BOOT, STEERING (LEFT)
-
190623-564 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
200623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
211606-044 LOUVER, AIR, INTAKE (RIGHT) (BLACK)LOUVER, AIR, INTAKE (RIGHT) (BLACK)
-
211606-045 LOUVER, AIR, INTAKE (LEFT) (BLACK)LOUVER, AIR, INTAKE (LEFT) (BLACK)
-
228061-508 RIVETRIVET
