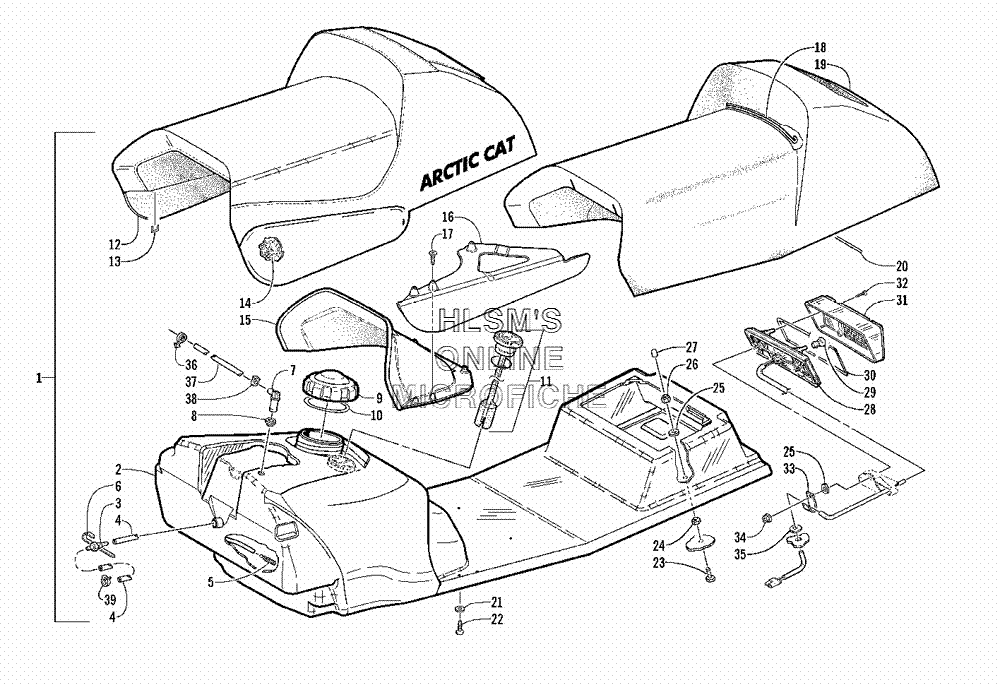

GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY для Arctic Cat ZRT 600 - 2002 года выпуска`
-
№АртикулНазвание
-
11718-204 COMPLETE SEAT ASSEMBLY (INC 2-22)COMPLETE SEAT ASSEMBLY (INC 2-22)
-
20770-584 TANK, GAS/SEAT-BASE (INC 3-11)TANK, GAS/SEAT-BASE (INC 3-11)
-
31670-173 OUTLET, TANKOUTLET, TANK
-
46101-001 HOSE, GASLINE - 100 FTHOSE, GASLINE - 100 FT
-
46101-009 HOSE, GASLINE - 50 FTHOSE, GASLINE - 50 FT
-
50510-358 STRAINER, GAS TANKSTRAINER, GAS TANK
-
60670-289 TAPE, TEFLONTAPE, TEFLON
-
71670-324 VENT, GAS TANKVENT, GAS TANK
-
81670-325 GROMMET, GAS TANKGROMMET, GAS TANK
-
91670-199 CAP, GAS TANK (INC 10)CAP, GAS TANK (INC 10)
-
101670-228 SEAL, TANK CAPSEAL, TANK CAP
-
111670-241 GAUGE, FUEL - ASSEMBLY W/GASKET (PRESS-FIT)GAUGE, FUEL - ASSEMBLY W/GASKET (PRESS-FIT)
-
121706-950 COVER, SEAT (INC 14)COVER, SEAT (INC 14)
-
130624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
140617-417 FOAM, TUNNEL PADFOAM, TUNNEL PAD
-
151606-126 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
161606-518 INSERT, SEAT PAD - RIGHTINSERT, SEAT PAD - RIGHT
-
161606-519 INSERT, SEAT PAD - LEFTINSERT, SEAT PAD - LEFT
-
170623-309 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
181606-150 WIRE, SEATWIRE, SEAT
-
191706-282 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
200606-057 WIRE, SEATWIRE, SEAT
-
218050-217 WASHERWASHER
-
220623-783 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
238002-042 SCREW, CAPSCREW, CAP
-
248041-366 NUT, LOCKNUT, LOCK
-
250623-184 WASHERWASHER
-
268040-366 NUT, LOCKNUT, LOCK
-
270623-404 CAP, PROTECTORCAP, PROTECTOR
-
280609-091 TAILLIGHT W/SOCKET ASSEMBLYTAILLIGHT W/SOCKET ASSEMBLY
-
290109-460 BULBBULB
-
300609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
310609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
320609-093 SCREW, RETAININGSCREW, RETAINING
-
333002-964 CLAMP, WIRECLAMP, WIRE
-
340623-038 NUT, LOCKNUT, LOCK
-
350617-136 SEAL, FOAM - SEAT-BASESEAL, FOAM - SEAT-BASE
-
360623-101 CLIP, ROUTING - SNAP-INCLIP, ROUTING - SNAP-IN
-
370610-015 HOSE, VENT - 100 FTHOSE, VENT - 100 FT
-
370610-016 HOSE, VENT - 25 FTHOSE, VENT - 25 FT
-
380623-063 CLAMP, HOSECLAMP, HOSE
-
390124-045 CLAMP, HOSECLAMP, HOSE
