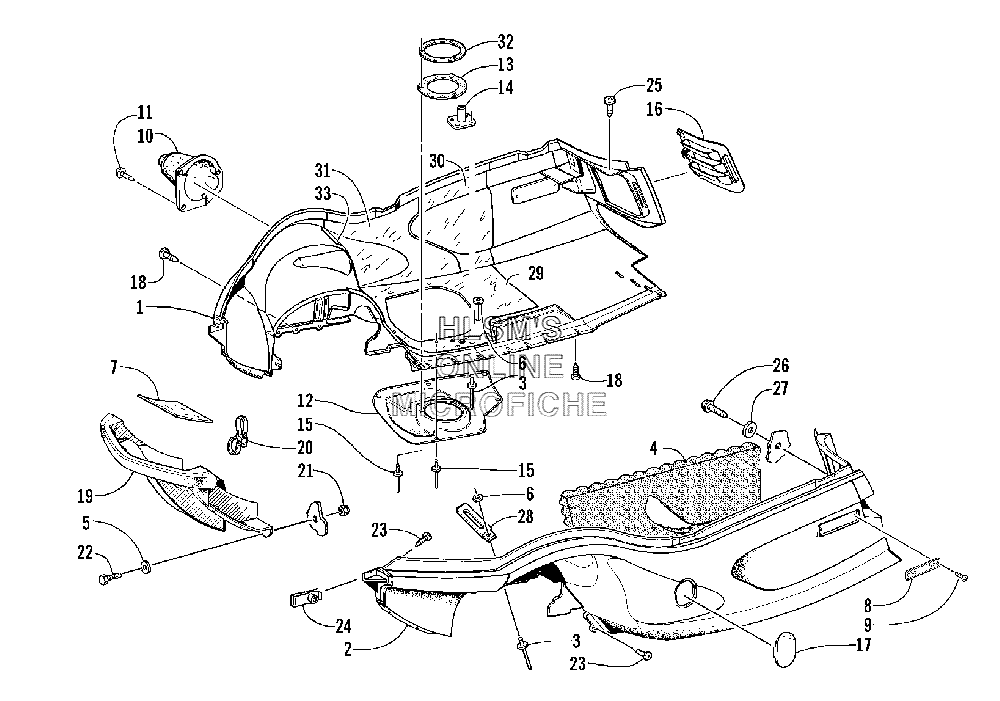

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat ZR 800 - 2002 года выпуска`
-
№АртикулНазвание
-
11706-298 BELLY PAN (RIGHT) (GREEN)BELLY PAN (RIGHT) (GREEN)
-
21706-295 BELLY PAN (LEFT) (GREEN)BELLY PAN (LEFT) (GREEN)
-
38061-508 RIVETRIVET
-
40617-315 FOAM, BELLY PAN (LEFT)FOAM, BELLY PAN (LEFT)
-
58050-222 WASHERWASHER
-
60123-149 WASHERWASHER
-
70619-206 TAPE, FOILTAPE, FOIL
-
80606-526 REFLECTOR (FRONT) (AMBER)REFLECTOR (FRONT) (AMBER)
-
90623-269 CLIP, RETAININGCLIP, RETAINING
-
100605-332 BOOT, STEERING (RIGHT)BOOT, STEERING (RIGHT)
-
100605-333 BOOT, STEERING (LEFT)BOOT, STEERING (LEFT)
-
110623-564 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
121612-451 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
131612-372 SEAL, EXHAUST, OUTLETSEAL, EXHAUST, OUTLET
-
140712-693 PLATE, DRAIN, VEVPLATE, DRAIN, VEV
-
158060-510 RIVETRIVET
-
162606-372 LOUVER, AIR, INTAKE (RIGHT) (GREEN)LOUVER, AIR, INTAKE (RIGHT) (GREEN)
-
162606-373 LOUVER, AIR, INTAKE (LEFT) (GREEN)LOUVER, AIR, INTAKE (LEFT) (GREEN)
-
172606-280 PANEL, CLUTCH ACCESS (GREEN)PANEL, CLUTCH ACCESS (GREEN)
-
180623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
191606-949 BUMPER (FRONT)BUMPER (FRONT)
-
200623-285 CABLE TIE, DOUBLE LOOPCABLE TIE, DOUBLE LOOP
-
218040-366 NUT, LOCKNUT, LOCK
-
228002-041 SCREW, CAPSCREW, CAP
-
230623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
240623-427 NUT, UNUT, U
-
250623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
260623-647 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
270623-184 WASHERWASHER
-
283002-964 CLAMP, WIRECLAMP, WIRE
-
292606-374 FOIL, PROTECTIVE (LOWER/REAR)FOIL, PROTECTIVE (LOWER/REAR)
-
302606-375 FOIL, PROTECTIVE (UPPER/REAR)FOIL, PROTECTIVE (UPPER/REAR)
-
312606-376 FOIL, PROTECTIVE (UPPER/FRONT)FOIL, PROTECTIVE (UPPER/FRONT)
-
321612-452 PLATE, SEAL, EXHAUST OUTLETPLATE, SEAL, EXHAUST OUTLET
-
332606-387 FOIL, PROTECTIVE (LOWER/FRONT)FOIL, PROTECTIVE (LOWER/FRONT)
