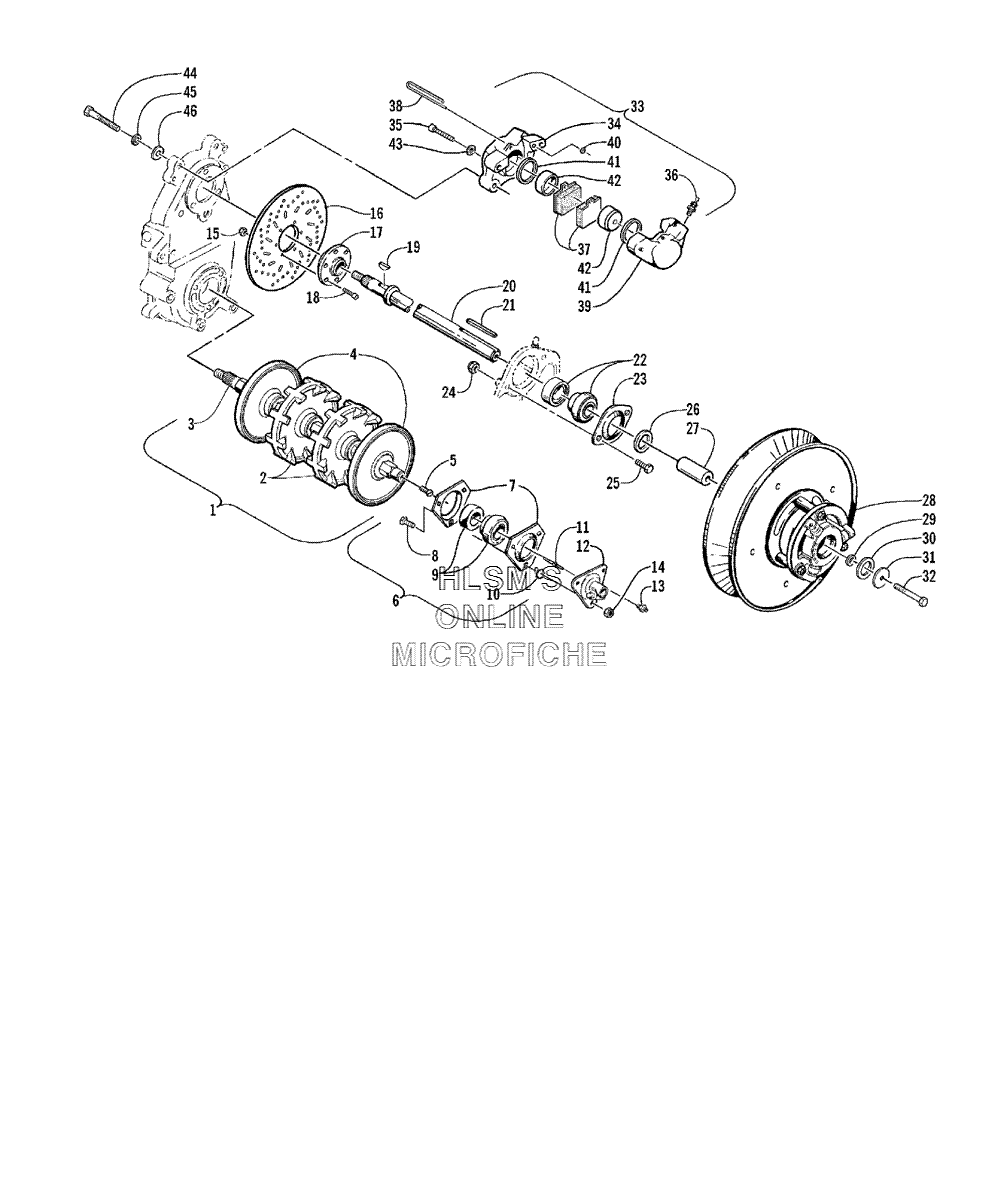

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat ZR 600 - 2002 года выпуска`
-
№АртикулНазвание
-
10728-041 TRACK DRIVE ASSY (INC. 2, 5)TRACK DRIVE ASSY (INC. 2, 5)
-
20602-992 SPROCKET, DRIVE (INNER)SPROCKET, DRIVE (INNER)
-
30602-634 DRIVESHAFTDRIVESHAFT
-
40602-993 SPROCKET, DRIVE (OUTER)SPROCKET, DRIVE (OUTER)
-
50120-247 BUSHING, DRIVEBUSHING, DRIVE
-
60702-392 PLATE, FLANGE, BEARING ASSY (INC. 7, 10)PLATE, FLANGE, BEARING ASSY (INC. 7, 10)
-
70602-198 PLATE, FLANGEPLATE, FLANGE
-
88011-130 BOLT, CARRIAGEBOLT, CARRIAGE
-
91602-110 BEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVEBEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVE
-
100623-810 RING, SOLDERRING, SOLDER
-
110602-154 CABLE, ADAPTERCABLE, ADAPTER
-
120720-005 ADAPTER, DRIVE (INC. 13)ADAPTER, DRIVE (INC. 13)
-
130104-062 FITTING, GREASEFITTING, GREASE
-
148040-426 NUT, LOCKNUT, LOCK
-
150123-430 NUT, LOCKNUT, LOCK
-
160602-951 DISC, BRAKEDISC, BRAKE
-
170602-952 HUB, BRAKEHUB, BRAKE
-
180623-433 SCREW, CAP, SOCKET HEADSCREW, CAP, SOCKET HEAD
-
190602-598 KEYKEY
-
200702-266 SHAFT, DRIVENSHAFT, DRIVEN
-
210101-076 KEYKEY
-
221602-099 BEARING, 1 IN., RE, LUBRICATIVEBEARING, 1 IN., RE, LUBRICATIVE
-
230602-892 PLATE, FLANGEPLATE, FLANGE
-
248041-426 NUT, LOCKNUT, LOCK
-
258002-130 SCREW, CAPSCREW, CAP
-
260623-118 WASHERWASHER
-
260623-119 WASHERWASHER
-
270648-066 SHAFT, STUBSHAFT, STUB
-
280726-117 CLUTCH, DRIVENCLUTCH, DRIVEN
-
290123-053 WASHERWASHER
-
300123-694 WASHERWASHER
-
310123-019 WASHERWASHER
-
328002-142 SCREW, CAPSCREW, CAP
-
330602-829 CALIPER, BRAKE ASSY (INC. 34, 43)CALIPER, BRAKE ASSY (INC. 34, 43)
-
358005-679 SCREW, CAPSCREW, CAP
-
360602-707 SCREW, BLEED, ASSYSCREW, BLEED, ASSY
-
370702-229 PAD, BRAKE, SET (INC. 38)PAD, BRAKE, SET (INC. 38)
-
380602-706 PIN, RETAININGPIN, RETAINING
-
400602-729 O-RING, HOUSINGO-RING, HOUSING
-
410602-583 O-RINGO-RING
-
420602-708 PISTONPISTON
-
438050-272 WASHERWASHER
-
448002-316 SCREW, CAPSCREW, CAP
-
458051-307 WASHER, LOCKWASHER, LOCK
-
468050-307 WASHERWASHER
