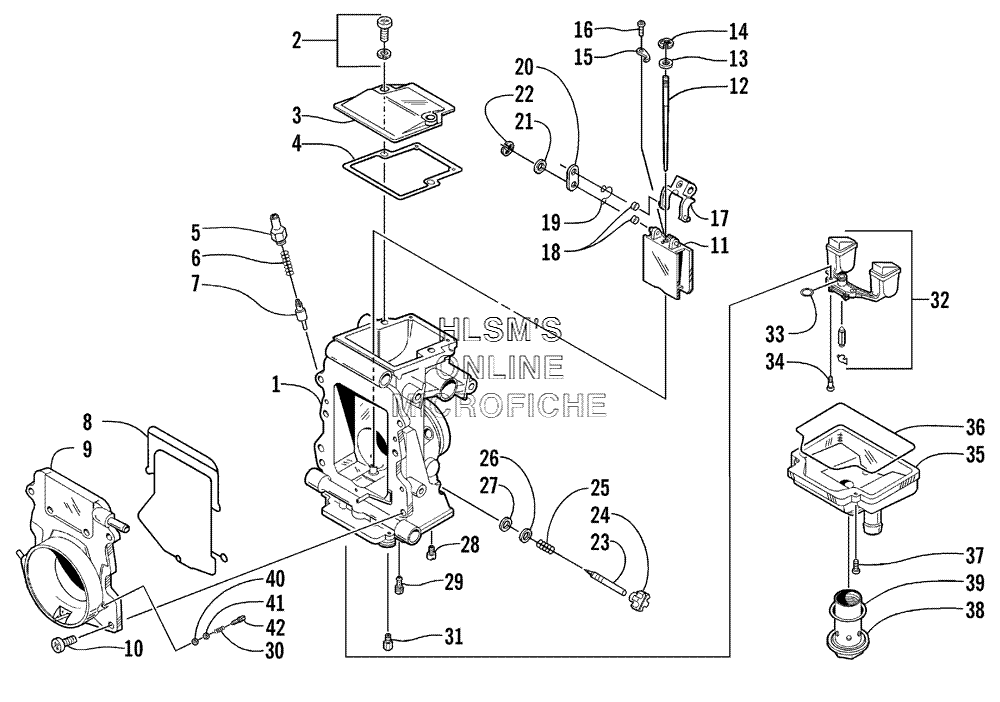

CARBURETOR - INTERNAL PARTS для Arctic Cat ZR 500 - 2002 года выпуска`
-
№АртикулНазвание
-
-1670-138 CARBURETOR ASSY. TM38, B331CARBURETOR ASSY. TM38, B331
-
26505-591 SCREW ASSYSCREW ASSY
-
36506-142 CAP, TOPCAP, TOP
-
46506-034 GASKETGASKET
-
56506-137 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
66506-138 SPRING, STARTER PLUNGERSPRING, STARTER PLUNGER
-
76506-139 STARTER PLUNGERSTARTER PLUNGER
-
86506-209 GASKETGASKET
-
96506-207 FUNNEL ASSYFUNNEL ASSY
-
106505-980 SCREWSCREW
-
116506-210 VALVE, THROTTLE CA 3.5VALVE, THROTTLE CA 3.5
-
126506-290 JET NEEDLE 9EH6, 58, 3JET NEEDLE 9EH6, 58, 3
-
136505-552 WASHER, E, CLIPWASHER, E, CLIP
-
146505-628 E, CLIPE, CLIP
-
156506-055 PLATE, JET NEEDLE RETAININGPLATE, JET NEEDLE RETAINING
-
166506-054 SCREW, RETAINING PLATESCREW, RETAINING PLATE
-
176506-047 LEVER ASSY (LEFT)LEVER ASSY (LEFT)
-
176506-043 LEVER ASSY (RIGHT)LEVER ASSY (RIGHT)
-
186506-053 BUSHING, CLIPBUSHING, CLIP
-
196506-040 CLIPCLIP
-
206506-039 PLATEPLATE
-
216506-052 WASHERWASHER
-
226506-051 E, CLIPE, CLIP
-
236506-145 SCREW, FUEL MIXTURE 2.0SCREW, FUEL MIXTURE 2.0
-
246506-076 CAP, FUEL MIXTURE SCREWCAP, FUEL MIXTURE SCREW
-
256506-079 SPRING, FUEL MIXTURE SCREWSPRING, FUEL MIXTURE SCREW
-
266506-078 WASHER, FUEL MIXTURE SCREWWASHER, FUEL MIXTURE SCREW
-
276506-080 WASHER, RUBBERWASHER, RUBBER
-
286506-101 STARTER JET 135STARTER JET 135
-
296505-047 PILOT JET 40PILOT JET 40
-
306506-217 SPRINGSPRING
-
316505-070 MAIN JET 330MAIN JET 330
-
326506-121 FLOAT ASSY 1.5FLOAT ASSY 1.5
-
336506-100 O-RINGO-RING
-
346506-037 SCREW, FLOAT ARMSCREW, FLOAT ARM
-
356506-036 CHAMBER, FLOAT, ASSY (RIGHT)CHAMBER, FLOAT, ASSY (RIGHT)
-
356506-250 CHAMBER, FLOAT, ASSY (LEFT)CHAMBER, FLOAT, ASSY (LEFT)
-
366506-038 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
376506-072 SCREWSCREW
-
386506-292 PLUG, DRAINPLUG, DRAIN
-
396505-185 O-RING, DRAIN PLUGO-RING, DRAIN PLUG
-
406506-202 O-RINGO-RING
-
416506-218 WASHERWASHER
-
426506-220 SCREW, AIRSCREW, AIR
