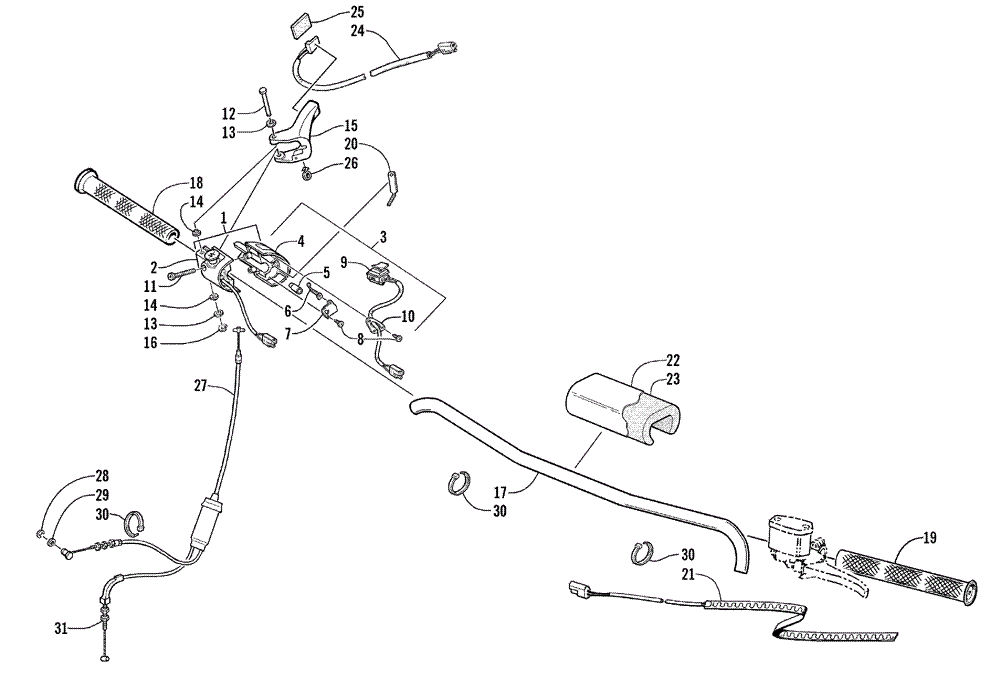

HANDLEBAR AND CONTROLS для Arctic Cat ZR 500 LE - 2002 года выпуска`
-
№АртикулНазвание
-
10609-520 CONTROL, THROTTLE (HIGH/LOW/INC. 2, 11)CONTROL, THROTTLE (HIGH/LOW/INC. 2, 11)
-
20609-521 CONTROL, THROTTLE, STOP SWITCH HALFCONTROL, THROTTLE, STOP SWITCH HALF
-
30609-522 CONTROL, THROTTLE, THUMBWARMER ASSEMBLY (HIGH/LOW) (INC. 4, 10 INC. TWO NO. 8)CONTROL, THROTTLE, THUMBWARMER ASSEMBLY (HIGH/LOW) (INC. 4, 10 INC. TWO NO. 8)
-
40609-495 CONTROL, THROTTLE, THUMBWARMER HALF (HIGH/LOW) W/O COMPONENTSCONTROL, THROTTLE, THUMBWARMER HALF (HIGH/LOW) W/O COMPONENTS
-
50609-497 PLUG, RUBBERPLUG, RUBBER
-
60609-498 CLIP, RETAINING, THROTTLE CABLECLIP, RETAINING, THROTTLE CABLE
-
70609-496 PLATE, COVERPLATE, COVER
-
80609-312 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
90609-523 SWITCH, THUMBWARMER ASSY (HIGH/LOW) (INC. THREE NO. 8 AND 10)SWITCH, THUMBWARMER ASSY (HIGH/LOW) (INC. THREE NO. 8 AND 10)
-
100609-378 PLATE, COVERPLATE, COVER
-
110609-492 SCREW, MACHINESCREW, MACHINE
-
120609-317 AXLE, LEVER, THROTTLEAXLE, LEVER, THROTTLE
-
130609-036 WASHERWASHER
-
140609-501 WASHER, SHOULDER, THROTTLEWASHER, SHOULDER, THROTTLE
-
150609-368 LEVER, THROTTLELEVER, THROTTLE
-
160609-040 RING, RETAININGRING, RETAINING
-
170705-417 HANDLEBARHANDLEBAR
-
181606-442 GRIP, HANDLEBAR (RIGHT)GRIP, HANDLEBAR (RIGHT)
-
192606-400 GRIP, HANDLEBAR (LEFT)GRIP, HANDLEBAR (LEFT)
-
201639-963 TOOL REMOVAL, KIT, THROTTLE CABLETOOL REMOVAL, KIT, THROTTLE CABLE
-
210609-528 ELEMENT, HANDWARMER (RIGHT)ELEMENT, HANDWARMER (RIGHT)
-
210609-529 ELEMENT, HANDWARMER (LEFT)ELEMENT, HANDWARMER (LEFT)
-
220705-379 WRAP, HANDLEBAR (INC. 23)WRAP, HANDLEBAR (INC. 23)
-
230619-640 FOAM, HANDLEBARFOAM, HANDLEBAR
-
240609-527 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
250617-248 PAD, INSULATORPAD, INSULATOR
-
260623-262 CLIP, WIRECLIP, WIRE
-
270687-100 CABLE, THROTTLECABLE, THROTTLE
-
280124-057 E, RINGE, RING
-
290124-056 WASHERWASHER
-
300123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
310623-464 NUT, LOCKING, THROTTLE CABLENUT, LOCKING, THROTTLE CABLE
