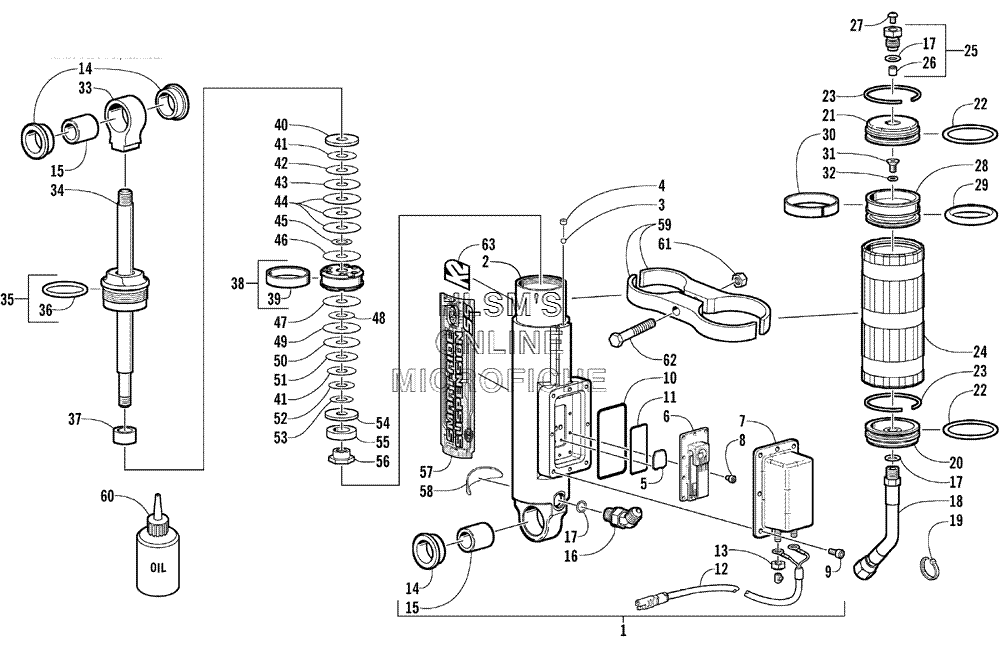

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat ZL 600 EFI SS - 2002 года выпуска

  • №
    Артикул
    Название
  • -
    0704-518 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • 1
    1604-645 BODY, SHOCK, ASSY. (INC. 2, 11)
    BODY, SHOCK, ASSY. (INC. 2, 11)
  • 2
    1604-666 BODY, SHOCK
    BODY, SHOCK
  • 3
    1604-653 BALL, PORT PLUG
    BALL, PORT PLUG
  • 4
    1604-652 PLUG, PORT
    PLUG, PORT
  • 5
    1604-622 VALVE, BACK FLOW
    VALVE, BACK FLOW
  • 6
    0704-604 HOLDER, BENDER, ASSY.
    HOLDER, BENDER, ASSY.
  • 7
    1604-760 COVER/HARNESS ASSY.
    COVER/HARNESS ASSY.
  • 8
    0623-860 SCREW, MACHINE
    SCREW, MACHINE
  • 9
    0623-864 SCREW, CAP
    SCREW, CAP
  • 10
    1604-654 O-RING, COVER
    O-RING, COVER
  • 11
    1604-625 O-RING
    O-RING
  • 12
    1604-761 ELBOW, FLARE TUBE, 45° (INC. ONE NO. 13)
    ELBOW, FLARE TUBE, 45° (INC. ONE NO. 13)
  • 13
    1604-284 O-RING
    O-RING
  • 14
    1604-729 HOSE, RESERVOIR (INC. ONE NO. 13)
    HOSE, RESERVOIR (INC. ONE NO. 13)
  • 15
    1604-762 SADDLE, MOUNTING, RESERVOIR
    SADDLE, MOUNTING, RESERVOIR
  • 16
    1604-728 END CAP, RESERVOIR BODY
    END CAP, RESERVOIR BODY
  • 17
    0603-989 END CAP, RESERVOIR BODY
    END CAP, RESERVOIR BODY
  • 18
    0603-968 O-RING, END CAP, RESERVOIR
    O-RING, END CAP, RESERVOIR
  • 19
    0603-985 RETAINER, END CAP
    RETAINER, END CAP
  • 20
    1603-315 BODY, RESERVOIR
    BODY, RESERVOIR
  • 21
    0704-383 VALVE, PRESSURE, ASSY. (INC. ONE NO. 13 AND 22)
    VALVE, PRESSURE, ASSY. (INC. ONE NO. 13 AND 22)
  • 23
    0624-433 SCREW, MACHINE
    SCREW, MACHINE
  • 24
    0603-986 PISTON, RESERVOIR
    PISTON, RESERVOIR
  • 25
    0603-987 O-RING
    O-RING
  • 26
    0603-988 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 27
    0623-697 SCREW, MACHINE
    SCREW, MACHINE
  • 28
    0423-182 O-RING
    O-RING
  • 29
    1604-763 EYELET, SHOCK
    EYELET, SHOCK
  • 30
    1604-660 ROD, SHOCK
    ROD, SHOCK
  • 31
    0704-382 END CAP, SHOCK, ASSY. (INC. 32)
    END CAP, SHOCK, ASSY. (INC. 32)
  • 32
    1604-271 O-RING, END CAP
    O-RING, END CAP
  • 33
    1604-364 SPACER, ROD, SHOCK
    SPACER, ROD, SHOCK
  • 34
    1604-640 PISTON ASSY. (INC. 35)
    PISTON ASSY. (INC. 35)
  • 35
    1604-643 BAND, TEFLON
    BAND, TEFLON
  • 36
    1604-272 WASHER, TOP OUT
    WASHER, TOP OUT
  • 37
    2603-075 VALVE, SHOCK 1.000 X 0.010 IN.
    VALVE, SHOCK 1.000 X 0.010 IN.
  • 38
    2603-096 VALVE, SHOCK 1.100 X 0.012 IN.
    VALVE, SHOCK 1.100 X 0.012 IN.
  • 39
    2603-127 VALVE, SHOCK 1.250 X 0.015 IN.
    VALVE, SHOCK 1.250 X 0.015 IN.
  • 40
    2603-137 VALVE, SHOCK 1.300 X 0.015 IN.
    VALVE, SHOCK 1.300 X 0.015 IN.
  • 41
    2603-044 VALVE, SHOCK 0.700 X 0.008 IN.
    VALVE, SHOCK 0.700 X 0.008 IN.
  • 42
    2603-134 VALVE, SHOCK 1.300 X 0.008 IN.
    VALVE, SHOCK 1.300 X 0.008 IN.
  • 43
    2606-136 VALVE, SHOCK 1.300 X 0.012 IN.
    VALVE, SHOCK 1.300 X 0.012 IN.
  • 44
    2606-062 VALVE, SHOCK 0.900 X 0.006 IN.
    VALVE, SHOCK 0.900 X 0.006 IN.
  • 45
    2603-135 VALVE, SHOCK 1.300 X 0.010 IN.
    VALVE, SHOCK 1.300 X 0.010 IN.
  • 46
    2603-125 VALVE, SHOCK 1.250 X 0.010 IN.
    VALVE, SHOCK 1.250 X 0.010 IN.
  • 47
    2603-095 VALVE, SHOCK 1.100 X 0.010 IN.
    VALVE, SHOCK 1.100 X 0.010 IN.
  • 48
    2603-065 VALVE, SHOCK 0.900 X 0.010 IN.
    VALVE, SHOCK 0.900 X 0.010 IN.
  • 49
    2603-055 VALVE, SHOCK 0.800 X 0.010 IN.
    VALVE, SHOCK 0.800 X 0.010 IN.
  • 50
    0624-523 WASHER, BACKUP
    WASHER, BACKUP
  • 51
    1604-632 MAGNET
    MAGNET
  • 52
    0624-522 NUT, LOCK
    NUT, LOCK
  • 53
    1604-262 BUSHING, SHOCK
    BUSHING, SHOCK
  • 54
    1604-397 SLEEVE, EYELET
    SLEEVE, EYELET
  • 55
    4611-199 DECAL, "SMART, RIDE SUSPENSION", SHOCK
    DECAL, "SMART, RIDE SUSPENSION", SHOCK
  • 56
    3611-007 DECAL, WARNING, SHOCK
    DECAL, WARNING, SHOCK
  • 57
    0624-529 CLAMP, HOSE
    CLAMP, HOSE
  • 58
    1639-245 OIL, GAS SHOCK, 6 QT CASE
    OIL, GAS SHOCK, 6 QT CASE
