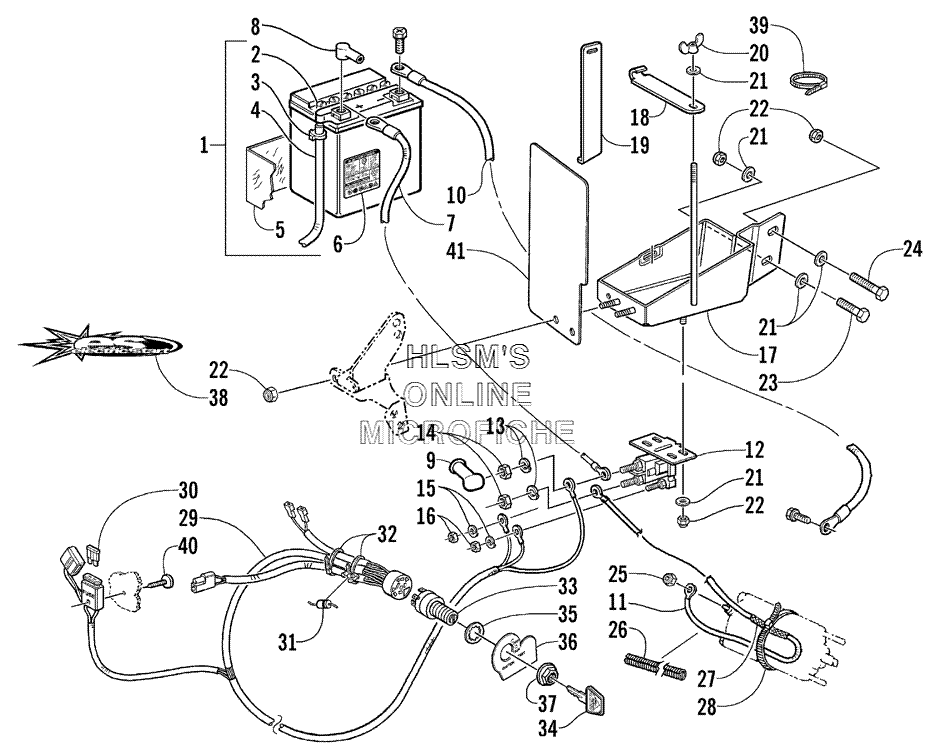

BATTERY- SOLENOID- AND CABLES (ESR) для Arctic Cat ZL 600 EFI SS (ORANGE ESR) - 2002 года выпуска`
-
№АртикулНазвание
-
10745-047 BATTERY (INC. 2, 6)BATTERY (INC. 2, 6)
-
20645-045 CAP, BATTERYCAP, BATTERY
-
30645-152 CLAMP, HOSECLAMP, HOSE
-
40645-263 HOSE, BATTERY VENTHOSE, BATTERY VENT
-
50645-082 WRAP, HEAT, BATTERYWRAP, HEAT, BATTERY
-
60645-151 DECAL, WARNING, BATTERYDECAL, WARNING, BATTERY
-
70645-390 CABLE, BATTERY/SOLENOID (INC. 8, 9)CABLE, BATTERY/SOLENOID (INC. 8, 9)
-
70645-161 CABLE, BATTERY/SOLENOID (INC. 8, 9)CABLE, BATTERY/SOLENOID (INC. 8, 9)
-
80645-019 BOOT, TERMINAL, BATTERYBOOT, TERMINAL, BATTERY
-
90645-327 BOOT, TERMINAL, SOLENOIDBOOT, TERMINAL, SOLENOID
-
100645-318 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
110645-115 CABLE, SOLENOID/STARTERCABLE, SOLENOID/STARTER
-
120645-196 SOLENOID (INC. 13, 16)SOLENOID (INC. 13, 16)
-
138051-242 WASHER, LOCKWASHER, LOCK
-
148043-452 NUTNUT
-
158051-152 WASHER, LOCKWASHER, LOCK
-
168042-272 NUTNUT
-
170745-144 TRAY, BATTERYTRAY, BATTERY
-
180645-243 STRAP, BATTERY HOLD, DOWN, TOPSTRAP, BATTERY HOLD, DOWN, TOP
-
190645-245 STRAP, BATTERY HOLD, DOWN, SIDESTRAP, BATTERY HOLD, DOWN, SIDE
-
200623-325 NUT, WINGNUT, WING
-
218050-217 WASHERWASHER
-
228040-366 NUT, LOCKNUT, LOCK
-
238002-040 SCREW, CAPSCREW, CAP
-
248002-045 SCREW, CAPSCREW, CAP
-
250623-122 NUT, LOCKNUT, LOCK
-
260716-391 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
270645-181 TUBE, HEAT PROTECTIONTUBE, HEAT PROTECTION
-
280623-144 CABLE TIE, 17.5 IN.CABLE TIE, 17.5 IN.
-
290686-695 HARNESS, ELECTRIC START (INC. 30, 32)HARNESS, ELECTRIC START (INC. 30, 32)
-
300630-100 FUSE, 7.5 AMPFUSE, 7.5 AMP
-
310630-002 DIODE, CHARGINGDIODE, CHARGING
-
320123-811 CABLE TIE, 4 IN.CABLE TIE, 4 IN.
-
330609-449 SWITCH, IGNITION KEY (INC. 34)SWITCH, IGNITION KEY (INC. 34)
-
350123-899 WASHER, LOCK, INTERNAL TOOTHWASHER, LOCK, INTERNAL TOOTH
-
362611-744 DECAL, CONSOLE* (RIGHT)DECAL, CONSOLE* (RIGHT)
-
370609-113 NUT, RETAININGNUT, RETAINING
-
383611-644 DECAL, "ES"DECAL, "ES"
-
390123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
400623-589 CLIP, RETAININGCLIP, RETAINING
-
410745-172 SHIELD, HEATSHIELD, HEAT
