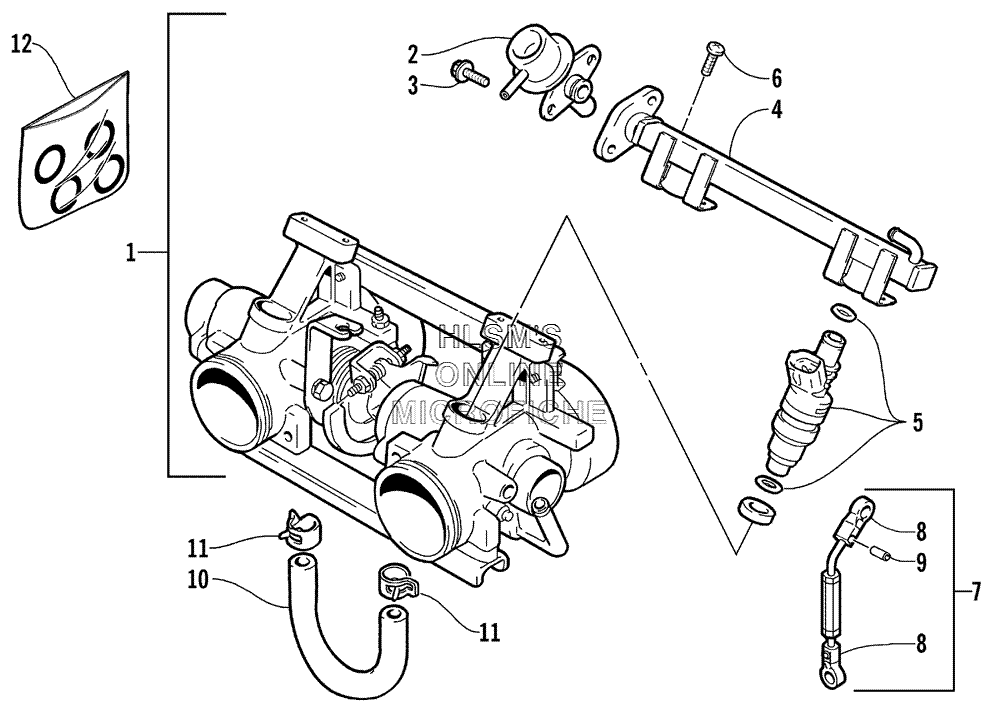

THROTTLE BODY ASSY. для Arctic Cat ZL 600 EFI (ESR) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3005-903 BODY, THROTTLE, ASSY., CIRCLE
    BODY, THROTTLE, ASSY., CIRCLE
  • 1
    3005-810 BODY, THROTTLE, ASSY., SQUARE
    BODY, THROTTLE, ASSY., SQUARE
  • 1
    3005-904 BODY, THROTTLE, ASSY., TRIANGLE
    BODY, THROTTLE, ASSY., TRIANGLE
  • 2
    3005-074 REGULATOR, FUEL
    REGULATOR, FUEL
  • 3
    3004-436 BOLT
    BOLT
  • 4
    3005-691 PIPE, DELIVERY
    PIPE, DELIVERY
  • 5
    3005-811 INJECTOR, FUEL, ASSY., CIRCLE
    INJECTOR, FUEL, ASSY., CIRCLE
  • 5
    3005-812 INJECTOR, FUEL, ASSY., SQUARE
    INJECTOR, FUEL, ASSY., SQUARE
  • 5
    3005-813 INJECTOR, FUEL, ASSY., TRIANGLE
    INJECTOR, FUEL, ASSY., TRIANGLE
  • 6
    3005-320 SCREW
    SCREW
  • 7
    3005-693 ROD, CONTROL, OIL PUMP (INC. 8, 9)
    ROD, CONTROL, OIL PUMP (INC. 8, 9)
  • 8
    3005-737 END, ROD
    END, ROD
  • 9
    3005-738 PIN, SPRING
    PIN, SPRING
  • 10
    3005-103 HOSE
    HOSE
  • 11
    3004-193 CLAMP, HOSE
    CLAMP, HOSE
  • 12
    3005-692 O-RING SET (INC. ALL THROTTLE BODY O-RINGS)
    O-RING SET (INC. ALL THROTTLE BODY O-RINGS)
