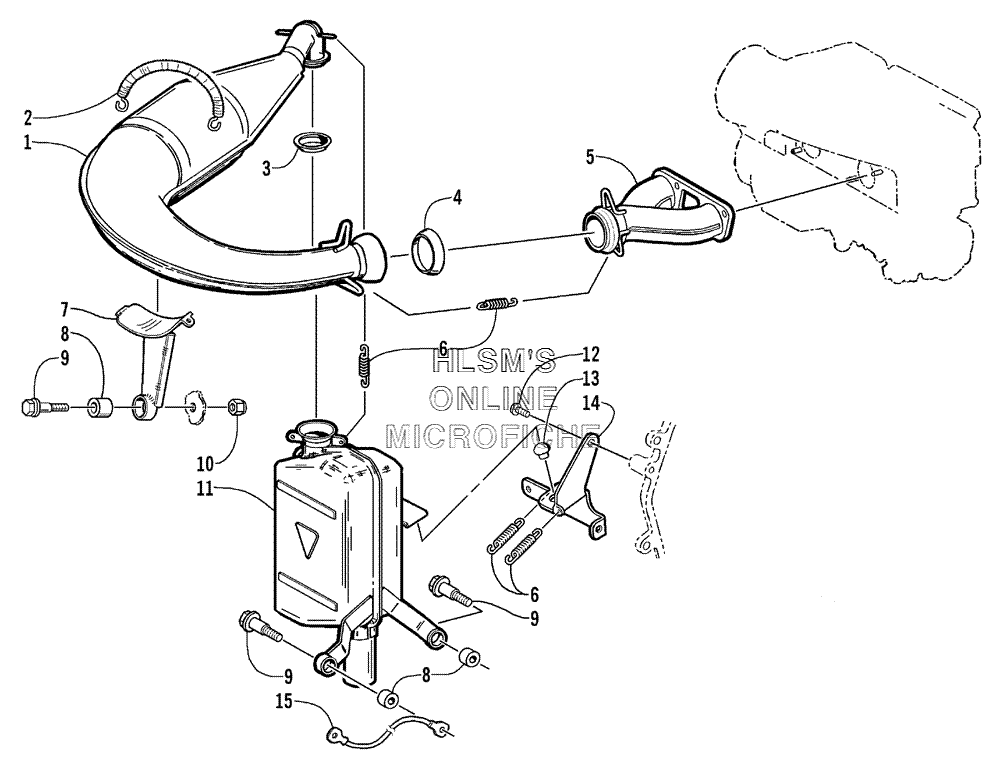

EXHAUST ASSY. для Arctic Cat Z 440 - 2002 года выпуска
-
№АртикулНазвание
-
10712-838 CHAMBER, EXPANSION, ASSY.CHAMBER, EXPANSION, ASSY.
-
20612-027 SPRING, EXTENSIONSPRING, EXTENSION
-
30612-188 GASKET, EXHAUST, TAILPIPEGASKET, EXHAUST, TAILPIPE
-
40612-131 GASKET, EXHAUST, HEADER JOINTGASKET, EXHAUST, HEADER JOINT
-
50712-837 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
60612-471 SPRING, EXHAUSTSPRING, EXHAUST
-
70712-176 BRACKET, MOUNTING, EXPANSION CHAMBERBRACKET, MOUNTING, EXPANSION CHAMBER
-
80612-107 BUSHING, RESONATOR, RUBBERBUSHING, RESONATOR, RUBBER
-
90623-856 SCREW, MACHINE, HEX SHOULDERSCREW, MACHINE, HEX SHOULDER
-
108040-366 NUT, LOCKNUT, LOCK
-
110712-436 RESONATORRESONATOR
-
120623-765 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
130612-111 BUMPER, RUBBER, MOLDEDBUMPER, RUBBER, MOLDED
-
141612-332 BRACKET, MOUNTING, RESONATORBRACKET, MOUNTING, RESONATOR
-
150686-126 CABLE, GROUNDCABLE, GROUND
