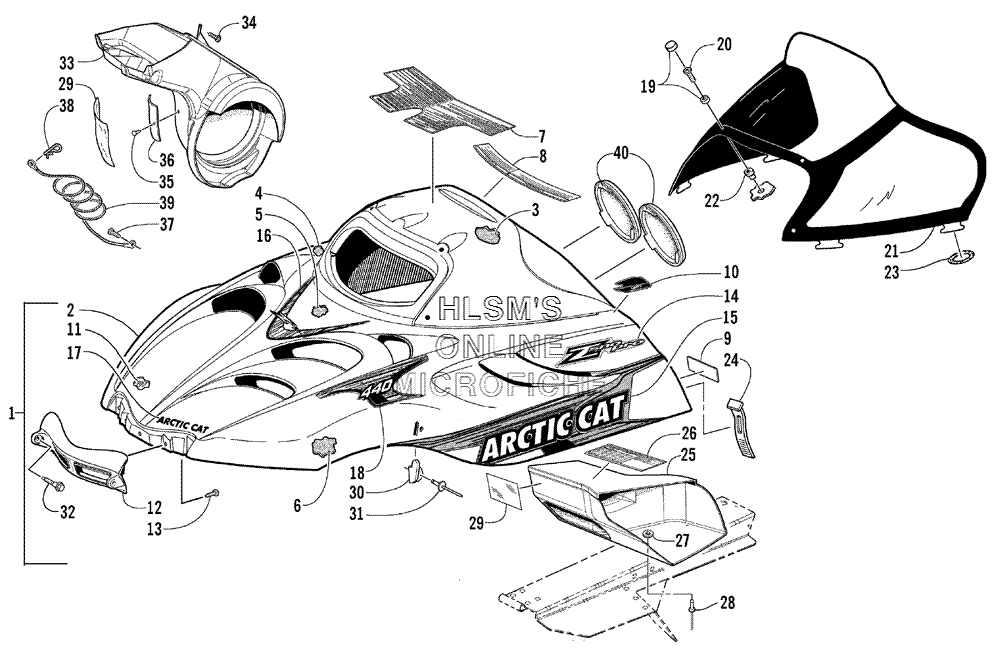

HOOD AND WINDSHIELD ASSY. для Arctic Cat Z 440 SNO PRO (INTERNATIONAL) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    1718-152 HOOD W/DECALS (INC. 2, 18)
    HOOD W/DECALS (INC. 2, 18)
  • 2
    1718-012 HOOD W/O DECALS (INC. 3, 13)
    HOOD W/O DECALS (INC. 3, 13)
  • 3
    0717-148 FOAM, HOOD (RIGHT) (UPPER)
    FOAM, HOOD (RIGHT) (UPPER)
  • 3
    0717-149 FOAM, HOOD (LEFT) (UPPER)
    FOAM, HOOD (LEFT) (UPPER)
  • 4
    0717-146 FOAM, HOOD (RIGHT) (REAR)
    FOAM, HOOD (RIGHT) (REAR)
  • 5
    0717-138 FOAM, HOOD (CENTER)
    FOAM, HOOD (CENTER)
  • 6
    0717-156 FOAM, HOOD CENTER (RIGHT)
    FOAM, HOOD CENTER (RIGHT)
  • 7
    3611-485 DECAL, WARNING, HOOD
    DECAL, WARNING, HOOD
  • 8
    3611-970 DECAL, CAUTION, ENGINE/BATTERY/FUEL
    DECAL, CAUTION, ENGINE/BATTERY/FUEL
  • 9
    3611-509 DECAL, WARNING, SEATING CAPACITY
    DECAL, WARNING, SEATING CAPACITY
  • 10
    4611-334 DECAL, "ACT", HOOD (RIGHT)
    DECAL, "ACT", HOOD (RIGHT)
  • 10
    4611-335 DECAL, "ACT", HOOD (LEFT)
    DECAL, "ACT", HOOD (LEFT)
  • 11
    1606-938 FOIL, HOOD (RIGHT)
    FOIL, HOOD (RIGHT)
  • 11
    1606-939 FOIL, HOOD (LEFT)
    FOIL, HOOD (LEFT)
  • 12
    1606-720 HINGE, HOOD
    HINGE, HOOD
  • 13
    0623-797 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 14
    4611-524 DECAL, HOOD (UPPER)
    DECAL, HOOD (UPPER)
  • 15
    4611-516 DECAL, HOOD (RIGHT) (LOWER)
    DECAL, HOOD (RIGHT) (LOWER)
  • 15
    4611-517 DECAL, HOOD (LEFT) (LOWER)
    DECAL, HOOD (LEFT) (LOWER)
  • 16
    4611-523 DECAL, HOOD (CENTER)
    DECAL, HOOD (CENTER)
  • 17
    3611-187 DECAL, "ARCTIC CAT", HOOD
    DECAL, "ARCTIC CAT", HOOD
  • 18
    4611-820 DECAL, HOOD (FRONT) (RIGHT)
    DECAL, HOOD (FRONT) (RIGHT)
  • 18
    4611-821 DECAL, HOOD (FRONT) (LEFT)
    DECAL, HOOD (FRONT) (LEFT)
  • 19
    0124-054 SNAP CAP W/WASHER
    SNAP CAP W/WASHER
  • 20
    0623-902 SCREW, MACHINE
    SCREW, MACHINE
  • 21
    2606-611 WINDSHIELD
    WINDSHIELD
  • 22
    0623-845 NUT, EXPANSION
    NUT, EXPANSION
  • 23
    0616-032 O-RING
    O-RING
  • 24
    1606-067 STRAP, HOLD, DOWN
    STRAP, HOLD, DOWN
  • 25
    1606-870 DUCT, AIR, OUTER
    DUCT, AIR, OUTER
  • 26
    4611-558 DECAL, JET CHART
    DECAL, JET CHART
  • 27
    0123-802 WASHER
    WASHER
  • 28
    8060-508 RIVET
    RIVET
  • 29
    0619-206 TAPE, FOIL
    TAPE, FOIL
  • 30
    1606-441 HOLD, DOWN, HOOD STRAP (LEFT)
    HOLD, DOWN, HOOD STRAP (LEFT)
  • 30
    2606-096 HOLD, DOWN, HOOD STRAP (RIGHT)
    HOLD, DOWN, HOOD STRAP (RIGHT)
  • 31
    8061-708 RIVET
    RIVET
  • 32
    0623-690 SCREW, MACHINE
    SCREW, MACHINE
  • 33
    2706-051 DUCT, AIR, INNER (INC. 29 AND 35, 36)
    DUCT, AIR, INNER (INC. 29 AND 35, 36)
  • 34
    0623-257 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 35
    0623-165 CLIP, RETAINING
    CLIP, RETAINING
  • 36
    2606-441 PAD, AIR, INNER DUCT
    PAD, AIR, INNER DUCT
  • 37
    0623-057 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 38
    0623-805 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 39
    2606-247 CABLE, HOOD
    CABLE, HOOD
  • 40
    2606-069 PLUG, HOLE, GAUGE
    PLUG, HOLE, GAUGE
