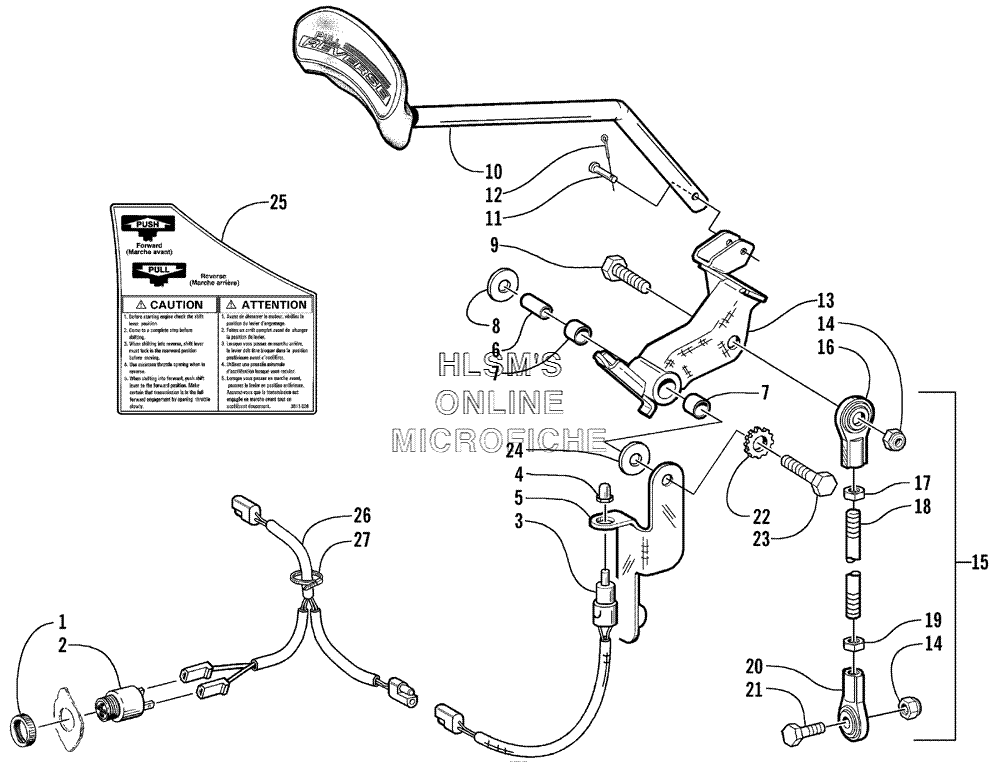

REVERSE SHIFT LEVER ASSY. (OPTIONAL) для Arctic Cat Z 440 (ES) - 2002 года выпуска`
-
№АртикулНазвание
-
10630-017 RING, RETAININGRING, RETAINING
-
20630-010 ALARM, REVERSE (INC. 1)ALARM, REVERSE (INC. 1)
-
30630-011 SWITCH, ALARMSWITCH, ALARM
-
40630-013 BOOT, SWITCHBOOT, SWITCH
-
50602-986 BRACKET, REVERSE SWITCHBRACKET, REVERSE SWITCH
-
60602-853 AXLEAXLE
-
70602-844 BUSHINGBUSHING
-
88050-252 WASHERWASHER
-
98002-137 SCREW, CAPSCREW, CAP
-
100602-978 LEVERLEVER
-
110623-641 PIN, CLEVISPIN, CLEVIS
-
120117-868 PIN, COTTERPIN, COTTER
-
130702-349 SHIFT PIVOT (INC. 7)SHIFT PIVOT (INC. 7)
-
148040-426 NUT, LOCKNUT, LOCK
-
150702-347 LINKAGE, SHIFTING, ASSY. (INC. 16, 20)LINKAGE, SHIFTING, ASSY. (INC. 16, 20)
-
160602-305 ROD END (LEFT)ROD END (LEFT)
-
170623-260 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
180602-982 ROD, SHIFTING LINKAGEROD, SHIFTING LINKAGE
-
190123-144 NUT, JAM (RIGHT)NUT, JAM (RIGHT)
-
200602-322 ROD END (RIGHT)ROD END (RIGHT)
-
218002-132 SCREW, CAPSCREW, CAP
-
228053-242 WASHER, LOCK, EXTERNAL TOOTHWASHER, LOCK, EXTERNAL TOOTH
-
238002-140 SCREW, CAPSCREW, CAP
-
248050-247 WASHERWASHER
-
253611-026 DECAL REVERSEDECAL REVERSE
-
253611-364 DECAL REVERSEDECAL REVERSE
-
253611-580 DECAL REVERSEDECAL REVERSE
-
260686-120 HARNESS, WIRING, ALARMHARNESS, WIRING, ALARM
-
270123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
