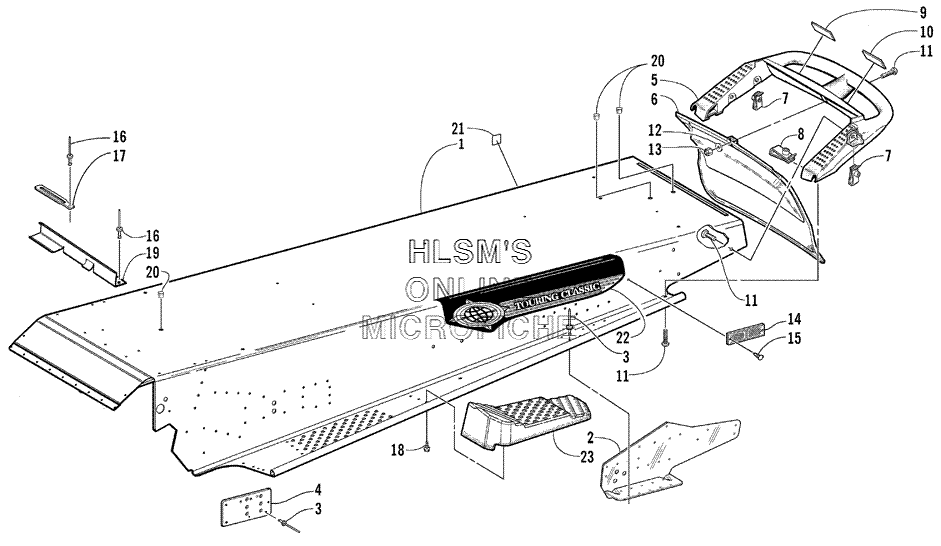

TUNNEL AND REAR BUMPER для Arctic Cat PANTHER 440 (USA) - 2002 года выпуска`
-
№АртикулНазвание
-
10718-941 TUNNEL ASSY. (INC. 2, 3)TUNNEL ASSY. (INC. 2, 3)
-
20716-868 BRACKET, SUSPENSION MOUNTING (RIGHT)BRACKET, SUSPENSION MOUNTING (RIGHT)
-
20716-869 BRACKET, SUSPENSION MOUNTING (LEFT)BRACKET, SUSPENSION MOUNTING (LEFT)
-
30623-072 RIVET, SOLIDRIVET, SOLID
-
30123-418 RIVET, SOLIDRIVET, SOLID
-
38060-504 RIVETRIVET
-
40616-965 PLATE, SUSPENSION MOUNTING (FRONT)PLATE, SUSPENSION MOUNTING (FRONT)
-
51606-200 BUMPER (REAR)BUMPER (REAR)
-
61606-202 SNOWFLAPSNOWFLAP
-
61606-507 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
70623-771 NUT, UNUT, U
-
80623-427 NUT, UNUT, U
-
91611-567 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
101611-566 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
118017-580 SCREW, MACHINESCREW, MACHINE
-
128050-217 WASHERWASHER
-
138040-366 NUT, LOCKNUT, LOCK
-
140606-029 REFLECTOR (REAR) (RED)REFLECTOR (REAR) (RED)
-
150623-269 CLIP, RETAININGCLIP, RETAINING
-
168060-506 RIVETRIVET
-
173002-964 CLAMP, WIRECLAMP, WIRE
-
180623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
190607-635 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
200623-562 PLUG, HOLEPLUG, HOLE
-
210411-053 DECAL, CEDECAL, CE
-
224611-256 DECAL, TUNNEL (RIGHT)DECAL, TUNNEL (RIGHT)
-
224611-257 DECAL, TUNNEL (LEFT)DECAL, TUNNEL (LEFT)
-
231606-478 FOOTREST (REAR) (RIGHT)FOOTREST (REAR) (RIGHT)
-
231606-479 FOOTREST (REAR) (LEFT)FOOTREST (REAR) (LEFT)
