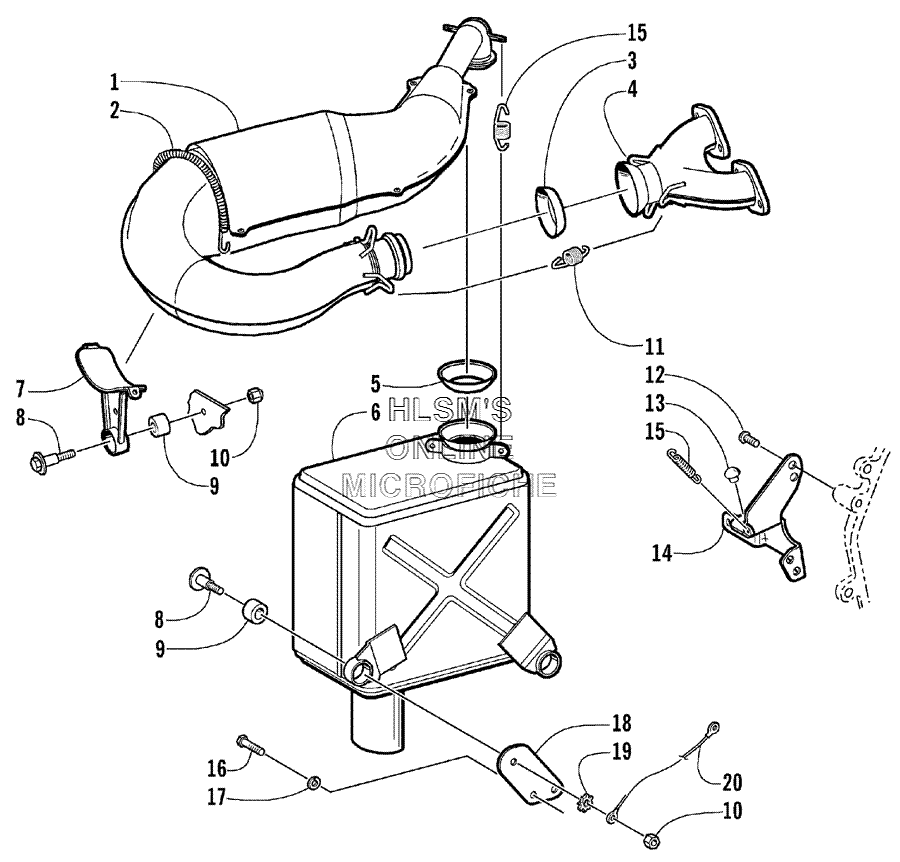

EXHAUST ASSY. для Arctic Cat PANTERA 550 (INTERNATIONAL) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    0712-720 CHAMBER, EXPANSION, ASSY.
    CHAMBER, EXPANSION, ASSY.
  • 2
    0612-027 SPRING, EXTENSION
    SPRING, EXTENSION
  • 3
    0612-131 GASKET, EXHAUST
    GASKET, EXHAUST
  • 4
    0712-719 MANIFOLD, EXHAUST
    MANIFOLD, EXHAUST
  • 5
    0612-188 GASKET, EXHAUST
    GASKET, EXHAUST
  • 6
    0712-440 RESONATOR
    RESONATOR
  • 7
    0712-330 BRACKET, SUPPORT, EXPANSION CHAMBER
    BRACKET, SUPPORT, EXPANSION CHAMBER
  • 8
    0623-856 SCREW, MACHINE, HEX SHOULDER
    SCREW, MACHINE, HEX SHOULDER
  • 9
    0612-107 BUSHING, RESONATOR, RUBBER
    BUSHING, RESONATOR, RUBBER
  • 10
    8040-366 NUT, LOCK
    NUT, LOCK
  • 11
    0612-820 SPRING, EXHAUST
    SPRING, EXHAUST
  • 12
    0623-765 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 13
    0612-111 BUMPER, RUBBER
    BUMPER, RUBBER
  • 14
    1612-339 BRACKET, MOUNTING, RESONATOR
    BRACKET, MOUNTING, RESONATOR
  • 15
    0612-471 SPRING, EXHAUST
    SPRING, EXHAUST
  • 16
    8002-040 SCREW, CAP
    SCREW, CAP
  • 17
    8051-217 WASHER, LOCK
    WASHER, LOCK
  • 18
    0612-951 BRACKET
    BRACKET
  • 19
    8053-212 WASHER, LOCK, EXTERNAL TOOTH
    WASHER, LOCK, EXTERNAL TOOTH
  • 20
    0686-126 HARNESS, ENGINE/GROUND
    HARNESS, ENGINE/GROUND
