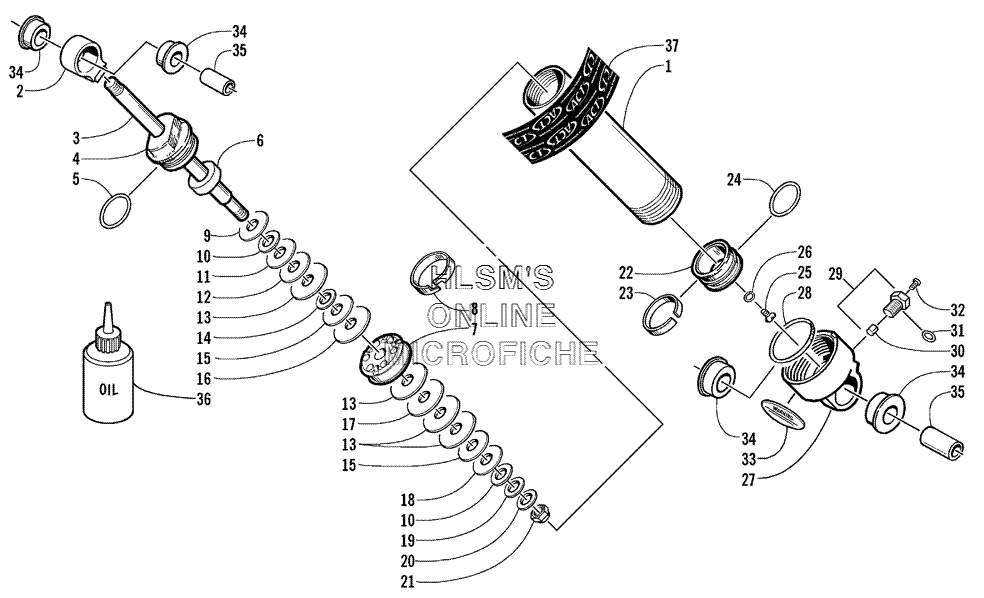

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat MOUNTAIN CAT 800 EFI (INTERNATIONAL) - 2002 года выпуска

  • №
    Артикул
    Название
  • -
    0704-529 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • 1
    1604-544 BODY, SHOCK
    BODY, SHOCK
  • 2
    1603-503 EYELET, SHOCK
    EYELET, SHOCK
  • 3
    1604-543 ROD, SHOCK
    ROD, SHOCK
  • 4
    0704-382 CAP, SHOCK (INC. 5)
    CAP, SHOCK (INC. 5)
  • 5
    1604-271 O-RING
    O-RING
  • 6
    1604-364 SPACER, SHAFT
    SPACER, SHAFT
  • 7
    1603-314 PISTON, 0.039 IN., ORIFICE
    PISTON, 0.039 IN., ORIFICE
  • 8
    1604-274 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 9
    1604-272 WASHER, TOP OUT
    WASHER, TOP OUT
  • 10
    1603-065 VALVE, 0.900 X 0.010 IN.
    VALVE, 0.900 X 0.010 IN.
  • 11
    1603-077 VALVE, 1.000 X 0.015 IN.
    VALVE, 1.000 X 0.015 IN.
  • 12
    1603-097 VALVE, 1.100 X 0.015 IN.
    VALVE, 1.100 X 0.015 IN.
  • 13
    1603-125 VALVE, 1.250 X 0.010 IN.
    VALVE, 1.250 X 0.010 IN.
  • 14
    1603-060 VALVE, 0.900 X 0.004 IN.
    VALVE, 0.900 X 0.004 IN.
  • 15
    1603-095 VALVE, 1.100 X 0.010 IN.
    VALVE, 1.100 X 0.010 IN.
  • 16
    1603-135 VALVE, 1.300 X 0.010 IN.
    VALVE, 1.300 X 0.010 IN.
  • 17
    1603-127 VALVE, 1.250 X 0.015 IN.
    VALVE, 1.250 X 0.015 IN.
  • 18
    1603-075 VALVE, 1.000 X 0.010 IN.
    VALVE, 1.000 X 0.010 IN.
  • 19
    1603-055 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 20
    1604-273 WASHER, BACKUP
    WASHER, BACKUP
  • 21
    0623-696 NUT, LOCK
    NUT, LOCK
  • 22
    1604-276 PISTON, FLOATING
    PISTON, FLOATING
  • 23
    1604-278 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 24
    1604-277 O-RING
    O-RING
  • 25
    0623-697 SCREW, RELIEF
    SCREW, RELIEF
  • 26
    0423-182 O-RING
    O-RING
  • 27
    1603-426 END CAP, SHOCK
    END CAP, SHOCK
  • 28
    1604-280 O-RING, END CAP
    O-RING, END CAP
  • 29
    0704-383 VALVE, PRESSURE (INC. 30, 31)
    VALVE, PRESSURE (INC. 30, 31)
  • 31
    1604-284 O-RING
    O-RING
  • 32
    0624-433 SCREW, VALVE
    SCREW, VALVE
  • 33
    3611-007 DECAL, WARNING
    DECAL, WARNING
  • 34
    1604-262 BUSHING, SHOCK
    BUSHING, SHOCK
  • 35
    1604-397 SLEEVE, EYELET
    SLEEVE, EYELET
  • 36
    1639-245 OIL, GAS SHOCK, 6 QT CASE
    OIL, GAS SHOCK, 6 QT CASE
  • 37
    4611-332 DECAL, "ACT", SHOCK
    DECAL, "ACT", SHOCK
