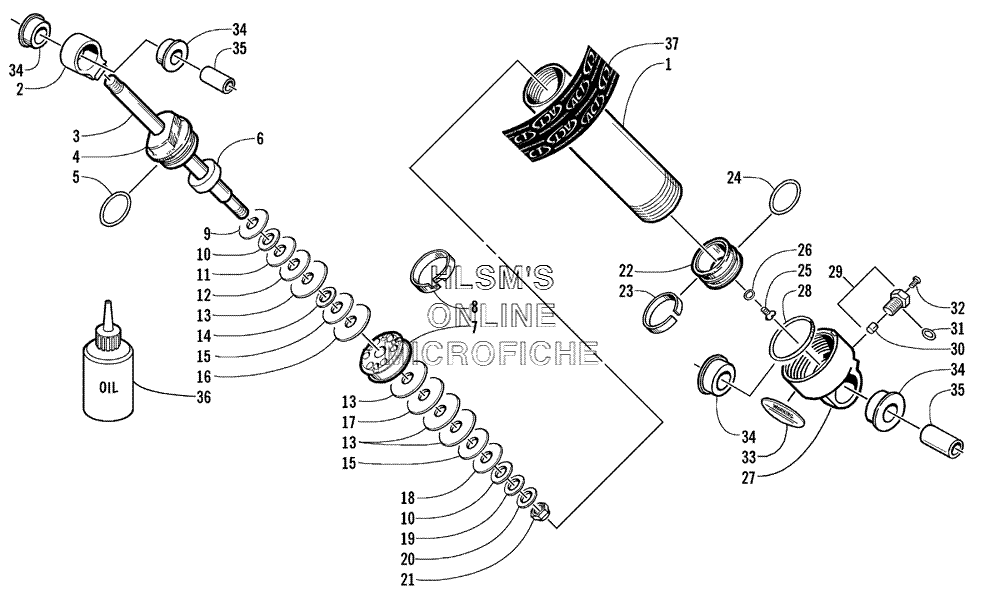

REAR SUSPENSION REAR ARM SHOCK ABSORBER (LE) для Arctic Cat MOUNTAIN CAT 600 EFI (LE BLACK-ORANGE) - 2002 года выпуска`
-
№АртикулНазвание
-
-0704-529 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
11604-544 BODY, SHOCKBODY, SHOCK
-
21603-503 EYELET, SHOCKEYELET, SHOCK
-
31604-543 ROD, SHOCKROD, SHOCK
-
40704-382 CAP, SHOCK (INC. 5)CAP, SHOCK (INC. 5)
-
51604-271 O-RINGO-RING
-
61604-364 SPACER, SHAFTSPACER, SHAFT
-
71603-314 PISTON, 0.039 IN., ORIFICEPISTON, 0.039 IN., ORIFICE
-
81604-274 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
91604-272 WASHER, TOP OUTWASHER, TOP OUT
-
101603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
111603-077 VALVE, 1.000 X 0.015 IN.VALVE, 1.000 X 0.015 IN.
-
121603-097 VALVE, 1.100 X 0.015 IN.VALVE, 1.100 X 0.015 IN.
-
131603-125 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
141603-060 VALVE, 0.900 X 0.004 IN.VALVE, 0.900 X 0.004 IN.
-
151603-095 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
161603-135 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
171603-127 VALVE, 1.250 X 0.015 IN.VALVE, 1.250 X 0.015 IN.
-
181603-075 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
191603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
201604-273 WASHER, BACKUPWASHER, BACKUP
-
210623-696 NUT, LOCKNUT, LOCK
-
221604-276 PISTON, FLOATINGPISTON, FLOATING
-
231604-278 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
241604-277 O-RINGO-RING
-
250623-697 SCREW, RELIEFSCREW, RELIEF
-
260423-182 O-RINGO-RING
-
271603-426 END CAP, SHOCKEND CAP, SHOCK
-
281604-280 O-RING, END CAPO-RING, END CAP
-
290704-383 VALVE, PRESSURE (INC. 30, 31)VALVE, PRESSURE (INC. 30, 31)
-
311604-284 O-RINGO-RING
-
320624-433 SCREW, VALVESCREW, VALVE
-
333611-007 DECAL, WARNINGDECAL, WARNING
-
341604-262 BUSHING, SHOCKBUSHING, SHOCK
-
351604-397 SLEEVE, EYELETSLEEVE, EYELET
-
361639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
-
374611-332 DECAL, "ACT", SHOCKDECAL, "ACT", SHOCK
