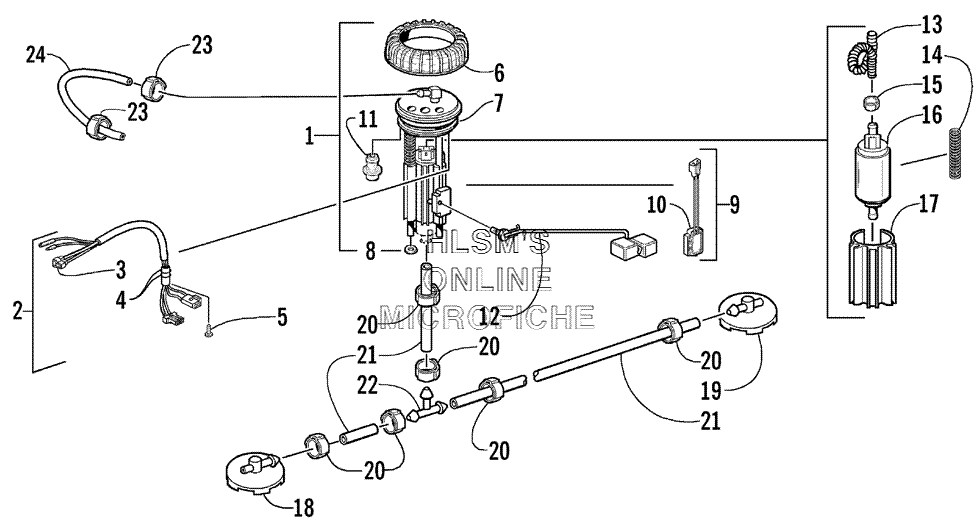

FUEL PUMP ASSY. для Arctic Cat 4-STROKE TOURING (INTERNATIONAL) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    1670-300 PUMP, FUEL, ASSY. (INC. 2, 17)
    PUMP, FUEL, ASSY. (INC. 2, 17)
  • 2
    2639-572 KIT, FUEL PUMP HARNESS (INC. 3, 4)
    KIT, FUEL PUMP HARNESS (INC. 3, 4)
  • 3
    0670-380 CONNECTOR, HARNESS
    CONNECTOR, HARNESS
  • 4
    0670-381 O-RING
    O-RING
  • 5
    1670-412 SCREW, MACHINE, HARNESS
    SCREW, MACHINE, HARNESS
  • 6
    1670-119 NUT, RETAINING, FUEL PUMP
    NUT, RETAINING, FUEL PUMP
  • 7
    1670-118 SEAL, FUEL PUMP HOUSING
    SEAL, FUEL PUMP HOUSING
  • 8
    1670-244 RING, RETAINING
    RING, RETAINING
  • 9
    2639-571 KIT, FUEL SENSOR (INC. 10)
    KIT, FUEL SENSOR (INC. 10)
  • 10
    1670-408 ELEMENT, FUEL SENSOR
    ELEMENT, FUEL SENSOR
  • 11
    1670-414 REGULATOR, FUEL
    REGULATOR, FUEL
  • 12
    0670-460 ARM, FLOAT
    ARM, FLOAT
  • 13
    1670-154 HOSE, FUEL PUMP, TOP
    HOSE, FUEL PUMP, TOP
  • 14
    1670-411 SPRING, FUEL PUMP ASSY.
    SPRING, FUEL PUMP ASSY.
  • 15
    1670-159 CLAMP, HOSE
    CLAMP, HOSE
  • 16
    1670-153 PUMP, FUEL
    PUMP, FUEL
  • 17
    1670-413 HOUSING, FUEL PUMP
    HOUSING, FUEL PUMP
  • 18
    1670-140 PICKUP, FUEL
    PICKUP, FUEL
  • 19
    1670-088 PICKUP, FUEL
    PICKUP, FUEL
  • 20
    0610-415 CLAMP, HOSE
    CLAMP, HOSE
  • 21
    0610-011 HOSE, GASLINE (25 FT)
    HOSE, GASLINE (25 FT)
  • 22
    0670-235 T, FITTING
    T, FITTING
  • 23
    0610-419 CLAMP, HOSE
    CLAMP, HOSE
  • 24
    0610-075 HOSE, GASLINE (10 FT)
    HOSE, GASLINE (10 FT)
