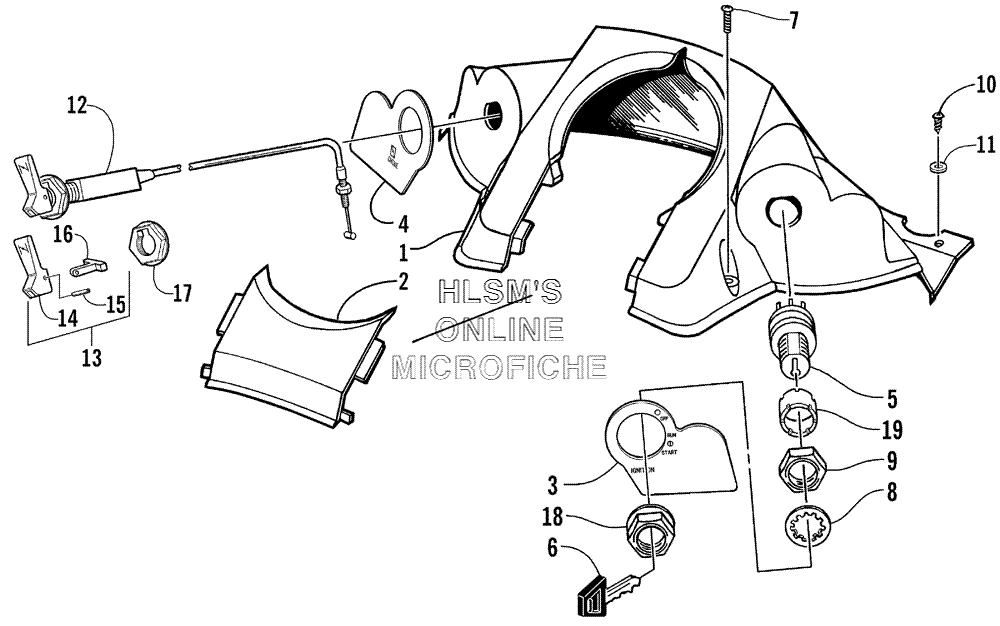

CONSOLE AND SWITCH ASSY. для Arctic Cat ZRT 800 - 2001 года выпуска`
-
№АртикулНазвание
-
12606-103 CONSOLECONSOLE
-
21606-105 DOOR, CONSOLEDOOR, CONSOLE
-
32611-678 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
42611-867 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
-
50609-286 SWITCH, IGNITION, MULTI, KEY (INC. 6)SWITCH, IGNITION, MULTI, KEY (INC. 6)
-
70623-219 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
80123-899 WASHER, LOCK, INTERNAL TOOTHWASHER, LOCK, INTERNAL TOOTH
-
90123-900 NUT, IGNITIONNUT, IGNITION
-
100623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
118050-157 WASHERWASHER
-
120687-131 CABLE, CHOKE (INC. 13, 16)CABLE, CHOKE (INC. 13, 16)
-
131639-835 LEVER, CHOKE, KIT (INC. 14, 16)LEVER, CHOKE, KIT (INC. 14, 16)
-
170687-132 NUT, CHOKENUT, CHOKE
-
180609-113 NUT, RETAININGNUT, RETAINING
-
190609-450 SPACER, IGNITION SWITCHSPACER, IGNITION SWITCH
