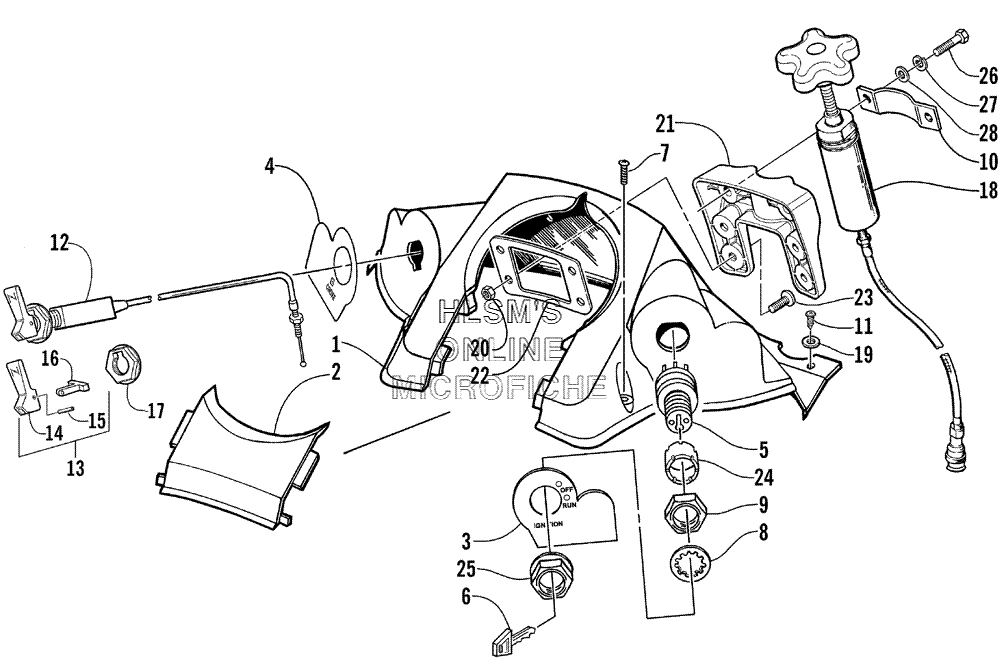

CONSOLE AND SWITCH ASSY. (LE) для Arctic Cat ZRT 800 LE - 2001 года выпуска`
-
№АртикулНазвание
-
12606-266 CONSOLECONSOLE
-
21606-105 DOOR, CONSOLEDOOR, CONSOLE
-
32611-678 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
42611-867 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
-
50609-286 SWITCH, IGNITION, MULTI, KEY (INC. 6)SWITCH, IGNITION, MULTI, KEY (INC. 6)
-
60609-451 KEYKEY
-
70623-219 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
80123-899 WASHER, LOCK, INTERNAL TOOTHWASHER, LOCK, INTERNAL TOOTH
-
90123-900 NUT, IGNITIONNUT, IGNITION
-
101604-432 BRACKET, RETAINERBRACKET, RETAINER
-
110623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
120687-131 CABLE, CHOKE (INC. 13, 16)CABLE, CHOKE (INC. 13, 16)
-
131639-835 LEVER, CHOKE, KIT (INC. 14, 16)LEVER, CHOKE, KIT (INC. 14, 16)
-
170687-132 NUT, CHOKENUT, CHOKE
-
180704-485 RESERVOIR ASSY., SHOCK ABSORBERRESERVOIR ASSY., SHOCK ABSORBER
-
198050-157 WASHERWASHER
-
208040-366 NUT, LOCKNUT, LOCK
-
211606-364 BRACKET, MOUNTINGBRACKET, MOUNTING
-
221606-365 PLATE, BACKINGPLATE, BACKING
-
238017-580 SCREW, MACHINESCREW, MACHINE
-
240609-450 SPACER, IGNITION SWITCHSPACER, IGNITION SWITCH
-
250609-113 NUT, RETAININGNUT, RETAINING
-
268002-041 SCREW, CAPSCREW, CAP
-
278051-212 WASHER, LOCKWASHER, LOCK
-
288050-212 WASHERWASHER
