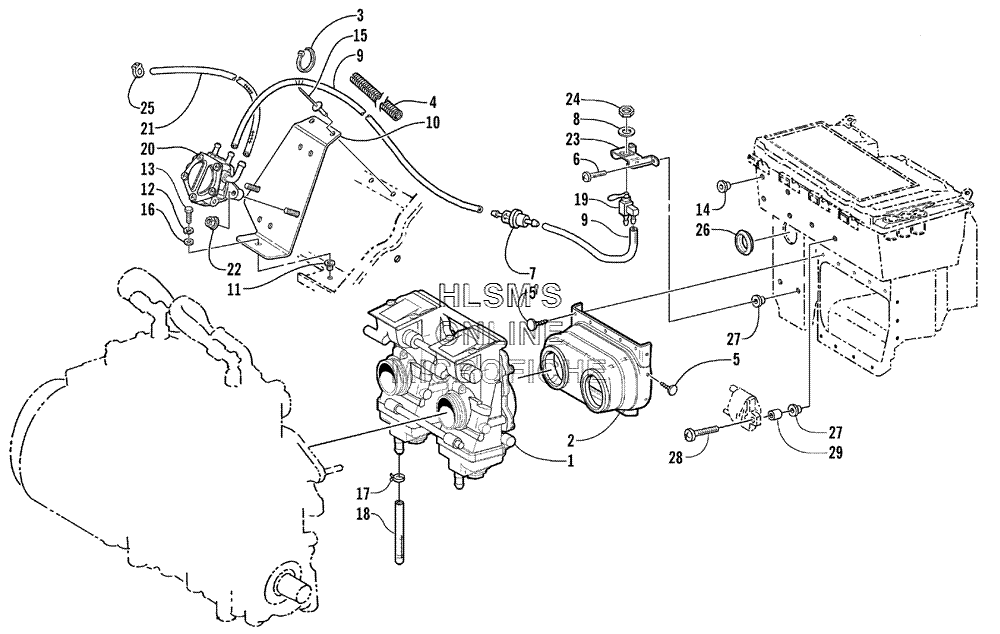

CARBURETOR AND FUEL PUMP ASSY. для Arctic Cat ZR 600 VEV - 2001 года выпуска`
-
№АртикулНазвание
-
11670-071 CARBURETOR, TM38, B305CARBURETOR, TM38, B305
-
21670-125 BOOT, CARBURETORBOOT, CARBURETOR
-
30123-811 CABLE TIE, 4 IN.CABLE TIE, 4 IN.
-
40716-546 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
50623-165 CLIP, RETAININGCLIP, RETAINING
-
60623-836 SCREW, MACHINESCREW, MACHINE
-
70510-335 FILTER, FUELFILTER, FUEL
-
80623-288 WASHERWASHER
-
90610-017 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
90610-008 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
100770-492 PLATE, MOUNTINGPLATE, MOUNTING
-
110623-582 INSERT, THREADEDINSERT, THREADED
-
128051-217 WASHER, LOCKWASHER, LOCK
-
138002-040 SCREW, CAPSCREW, CAP
-
140623-627 INSERTINSERT
-
158060-704 RIVETRIVET
-
168050-217 WASHERWASHER
-
170623-652 CLAMP, HOSECLAMP, HOSE
-
180610-279 HOSE, DRAINHOSE, DRAIN
-
190670-945 VALVE, FUEL SHUT, OFF (INC. 8 AND 24)VALVE, FUEL SHUT, OFF (INC. 8 AND 24)
-
201670-064 PUMP, FUELPUMP, FUEL
-
210610-007 HOSE, IMPULSE (25 FT)HOSE, IMPULSE (25 FT)
-
220623-877 NUT W/WASHERNUT W/WASHER
-
230670-837 BRACKET, MOUNTING, FUEL SHUT, OFF VALVEBRACKET, MOUNTING, FUEL SHUT, OFF VALVE
-
240623-287 NUTNUT
-
250124-045 CLAMP, HOSECLAMP, HOSE
-
262606-062 PLUG, HOLEPLUG, HOLE
-
270623-529 INSERTINSERT
-
280623-835 SCREW, MACHINESCREW, MACHINE
-
290107-630 SPACERSPACER
