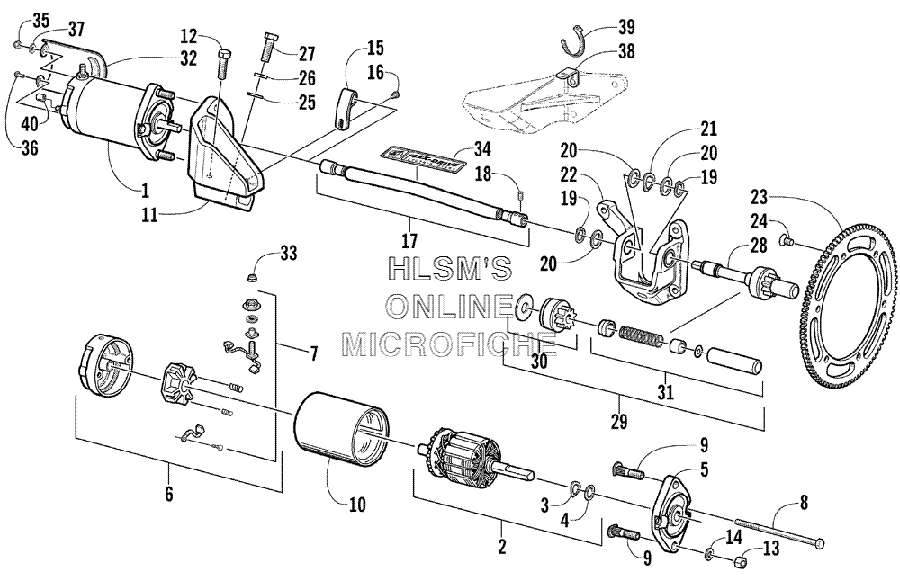

FLEX-DRIVE STARTER MOTOR ASSY. (OPTIONAL) для Arctic Cat ZR 600 (USA) - 2001 года выпуска`
-
№АртикулНазвание
-
311639-228 OPTIONAL KITOPTIONAL KIT
-
10745-126 MOTOR, STARTER (INC. 2, 10)MOTOR, STARTER (INC. 2, 10)
-
20645-296 ARMATURE ASSY. (INC. 3, 4)ARMATURE ASSY. (INC. 3, 4)
-
30645-131 WASHER, WAVEWASHER, WAVE
-
40645-293 WASHER, THRUSTWASHER, THRUST
-
50645-297 CAP, DRIVECAP, DRIVE
-
60645-298 CAP, COMMUTATOR (INC. 7)CAP, COMMUTATOR (INC. 7)
-
70645-275 KIT, BRUSH AND SPRINGKIT, BRUSH AND SPRING
-
80645-299 THROUGH, BOLTTHROUGH, BOLT
-
90623-093 BOLT, RIBBEDBOLT, RIBBED
-
110708-097 BRACKET, MOUNTING, STARTER MOTORBRACKET, MOUNTING, STARTER MOTOR
-
120623-890 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
138040-426 NUT, LOCKNUT, LOCK
-
148050-242 WASHERWASHER
-
150645-300 CLIP, RETAININGCLIP, RETAINING
-
160623-786 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
170745-156 SHAFT, FLEX (INC. 18 AND 34)SHAFT, FLEX (INC. 18 AND 34)
-
180623-891 SCREW, SET, SOCKETSCREW, SET, SOCKET
-
190645-256 RING, SNAPRING, SNAP
-
200645-254 WASHER, THRUSTWASHER, THRUST
-
210645-255 WASHER, WAVEWASHER, WAVE
-
220745-125 BRACKET, ENGINE MOUNTING (LEFT) FRONTBRACKET, ENGINE MOUNTING (LEFT) FRONT
-
230645-169 RING GEARRING GEAR
-
240623-441 SCREW, MACHINE, SOCKET HEADSCREW, MACHINE, SOCKET HEAD
-
258050-277 WASHERWASHER
-
268051-277 WASHER, LOCKWASHER, LOCK
-
278002-224 SCREW, CAPSCREW, CAP
-
280745-150 DRIVE, PINION, FLEX SHAFT (INC. 29, 31)DRIVE, PINION, FLEX SHAFT (INC. 29, 31)
-
290745-145 KIT, PINION DRIVE ASSY. (INC. 30, 31)KIT, PINION DRIVE ASSY. (INC. 30, 31)
-
300745-146 PINION DRIVE, ASSY.PINION DRIVE, ASSY.
-
310645-186 PINION STOPPER, ASSY.PINION STOPPER, ASSY.
-
320745-153 SHIELD, HEATSHIELD, HEAT
-
330623-122 NUT, LOCKNUT, LOCK
-
343611-968 DECAL, "ACT, FLEX, DRIVE"DECAL, "ACT, FLEX, DRIVE"
-
358040-366 NUT, LOCKNUT, LOCK
-
360623-892 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
378050-212 WASHERWASHER
-
382606-281 TAB, SHAFT, FLEX, DRIVETAB, SHAFT, FLEX, DRIVE
-
390623-909 CABLE TIE, 8.5 IN.CABLE TIE, 8.5 IN.
