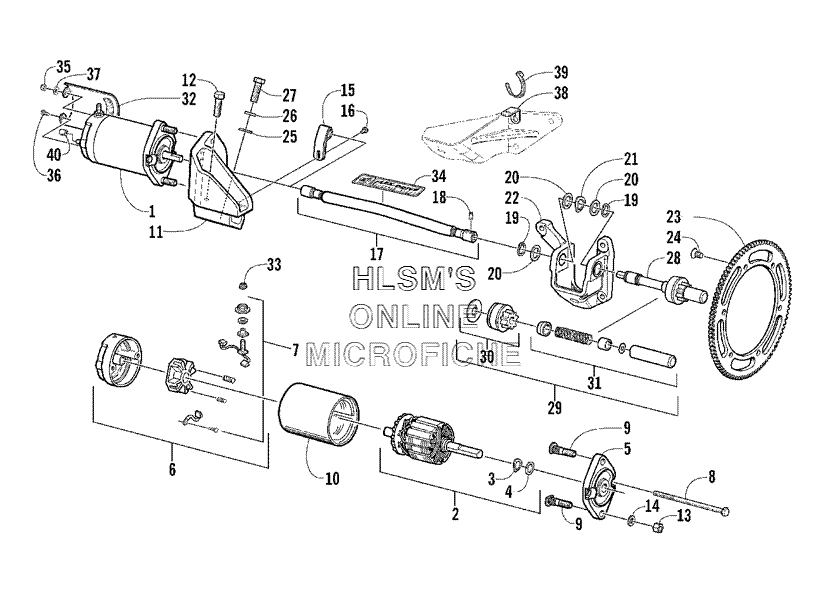

FLEX-DRIVE STARTER MOTOR ASSEMBLY (ESR) для Arctic Cat ZL 600 EFI (ESR) - 2001 года выпуска`
-
№АртикулНазвание
-
10745-143 MOTOR, STARTER (INC 2-10)MOTOR, STARTER (INC 2-10)
-
20645-296 ARMATURE ASSEMBLY (INC 3-4)ARMATURE ASSEMBLY (INC 3-4)
-
30645-131 WASHER, WAVEWASHER, WAVE
-
40645-293 WASHER, THRUSTWASHER, THRUST
-
50645-297 CAP, DRIVECAP, DRIVE
-
60645-313 CAP, COMMUTATOR (INC 7)CAP, COMMUTATOR (INC 7)
-
70645-275 KIT, BRUSH AND SPRINGKIT, BRUSH AND SPRING
-
80645-128 THROUGH-BOLTTHROUGH-BOLT
-
90623-093 BOLT, RIBBEDBOLT, RIBBED
-
110708-097 BRACKET, MOUNTING - STARTER MOTORBRACKET, MOUNTING - STARTER MOTOR
-
120623-890 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
138040-426 NUT, LOCKNUT, LOCK
-
148050-242 WASHERWASHER
-
150645-300 CLIP, RETAININGCLIP, RETAINING
-
160623-914 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
170745-156 SHAFT, FLEX (INC 18 AND 34)SHAFT, FLEX (INC 18 AND 34)
-
180623-891 SCREW, SET - SOCKETSCREW, SET - SOCKET
-
190645-256 RING, SNAPRING, SNAP
-
200645-254 WASHER, THRUSTWASHER, THRUST
-
210645-255 WASHER, WAVEWASHER, WAVE
-
220745-125 BRACKET, ENGINE MOUNTING - LEFT FRONTBRACKET, ENGINE MOUNTING - LEFT FRONT
-
230645-169 RING GEARRING GEAR
-
240623-441 SCREW, MACHINE - SOCKET HEADSCREW, MACHINE - SOCKET HEAD
-
258050-277 WASHERWASHER
-
268051-277 WASHER, LOCKWASHER, LOCK
-
278002-224 SCREW, CAPSCREW, CAP
-
280745-150 DRIVE, PINION - FLEX-DRIVE SHAFT (INC 29-31)DRIVE, PINION - FLEX-DRIVE SHAFT (INC 29-31)
-
290745-145 PINION DRIVE ASSEMBLY (INC 30-31)PINION DRIVE ASSEMBLY (INC 30-31)
-
300745-146 DRIVE PINION - ASSEMBLYDRIVE PINION - ASSEMBLY
-
310645-186 PINION STOPPER - ASSEMBLYPINION STOPPER - ASSEMBLY
-
320745-153 SHIELD, HEATSHIELD, HEAT
-
330623-122 NUT, LOCKNUT, LOCK
-
343611-968 DECAL, ''ACT - FLEX-DRIVE''DECAL, ''ACT - FLEX-DRIVE''
-
358040-366 NUT, LOCKNUT, LOCK
-
360623-892 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
378050-212 WASHERWASHER
-
382606-281 TAB, SHAFT - FLEX-DRIVETAB, SHAFT - FLEX-DRIVE
-
390623-909 CABLE TIE - 8.5 IN.CABLE TIE - 8.5 IN.
-
400623-404 CAP, PROTECTORCAP, PROTECTOR
