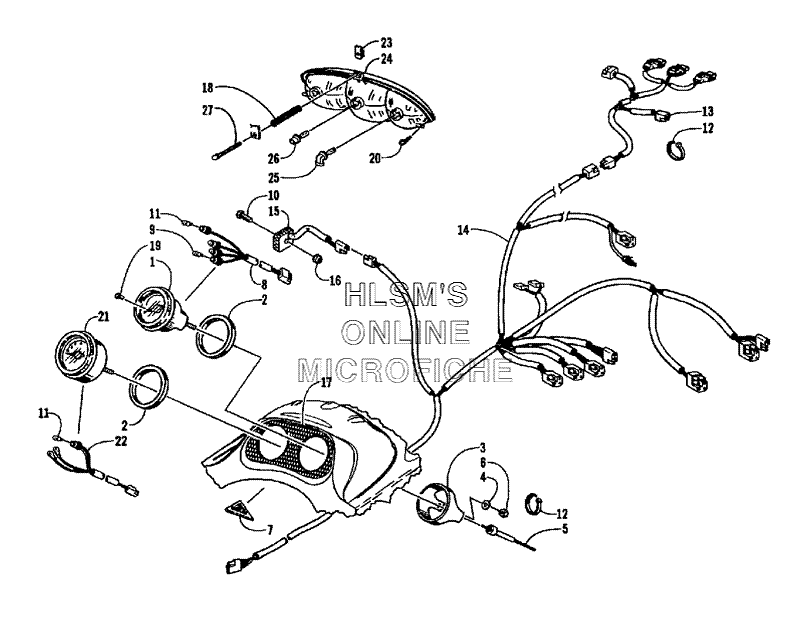

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat ZL 550 - 2001 года выпуска`
-
№АртикулНазвание
-
10620-238 SPEEDOMETER (INC 8,11 AND 19)SPEEDOMETER (INC 8,11 AND 19)
-
20620-135 RING, RUBBER CUSHIONRING, RUBBER CUSHION
-
30620-134 RING, RETAINING BRACKETRING, RETAINING BRACKET
-
48050-212 WASHERWASHER
-
50620-113 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
60623-038 NUT W/WASHERNUT W/WASHER
-
73611-611 DECAL, ''MADE IN U.S.A.'' - DOMEDDECAL, ''MADE IN U.S.A.'' - DOMED
-
80620-151 HARNESS, BULB - SPEEDOMETERHARNESS, BULB - SPEEDOMETER
-
90620-149 BULB, INDICATORBULB, INDICATOR
-
108002-044 SCREW, CAPSCREW, CAP
-
110230-020 BULB, INSTRUMENTBULB, INSTRUMENT
-
120123-788 CABLE TIE - 7 IN.CABLE TIE - 7 IN.
-
130686-515 HARNESS, HOODHARNESS, HOOD
-
140686-689 HARNESS, MAINHARNESS, MAIN
-
150630-001 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
168041-366 NUT, LOCKNUT, LOCK
-
173611-490 DECAL, INSTRUMENT - HOODDECAL, INSTRUMENT - HOOD
-
180623-466 SPRING, ADJUSTERSPRING, ADJUSTER
-
190620-073 KNOB, TRIPMETERKNOB, TRIPMETER
-
200623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
210620-236 TACHOMETER (INC 22)TACHOMETER (INC 22)
-
220620-215 HARNESS, TACHOMETERHARNESS, TACHOMETER
-
230623-757 NUT, UNUT, U
-
240609-250 LENS/REFLECTOR - HEADLIGHTLENS/REFLECTOR - HEADLIGHT
-
250609-251 BULB, HEADLIGHT - HIGH BEAMBULB, HEADLIGHT - HIGH BEAM
-
260609-252 BULB, HEADLIGHT - LOW BEAMBULB, HEADLIGHT - LOW BEAM
-
270623-467 SCREW, THUMBSCREW, THUMB
