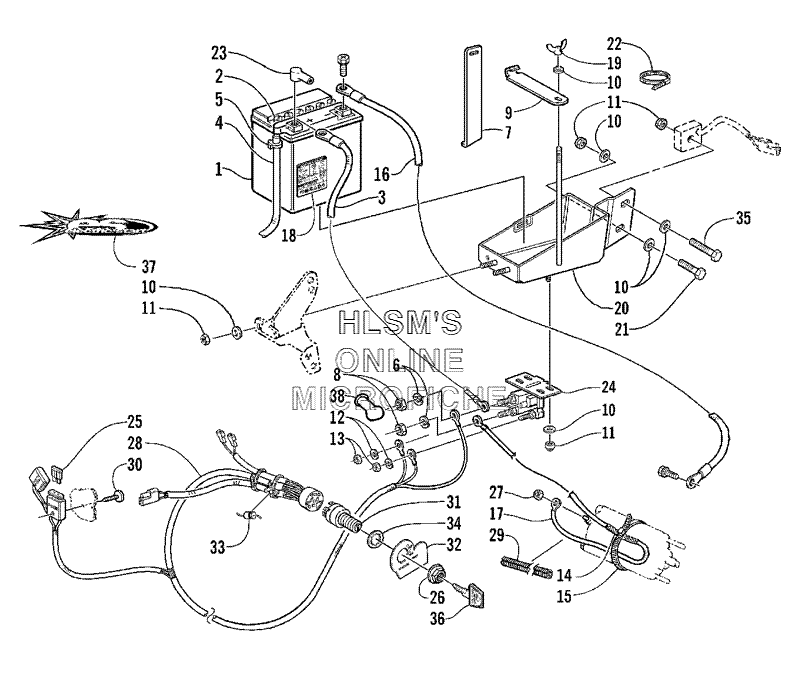

BATTERY- SOLENOID- AND CABLES (ESR) для Arctic Cat ZL 550 (ESR USA) - 2001 года выпуска`
-
№АртикулНазвание
-
-1639-937 ELECTRIC START OPTIONAL KITELECTRIC START OPTIONAL KIT
-
10745-047 BATTERY (INC 2 AND 4-5)BATTERY (INC 2 AND 4-5)
-
20645-045 CAP, BATTERYCAP, BATTERY
-
30645-161 CABLE, BATTERY/SOLENOIDCABLE, BATTERY/SOLENOID
-
40645-263 HOSE, BATTERY VENTHOSE, BATTERY VENT
-
50645-152 CLAMP, HOSECLAMP, HOSE
-
68051-242 WASHER, LOCKWASHER, LOCK
-
70645-245 STRAP, BATTERY HOLD-DOWN - SIDESTRAP, BATTERY HOLD-DOWN - SIDE
-
88043-452 NUTNUT
-
90645-243 STRAP, BATTERY HOLD-DOWN - TOPSTRAP, BATTERY HOLD-DOWN - TOP
-
108050-217 WASHERWASHER
-
118040-366 NUT, LOCKNUT, LOCK
-
128051-152 WASHER, LOCKWASHER, LOCK
-
138042-272 NUTNUT
-
140645-181 TUBE, HEAT PROTECTIONTUBE, HEAT PROTECTION
-
150623-144 CABLE TIE - 17.5 IN.CABLE TIE - 17.5 IN.
-
160645-318 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
170645-115 CABLE, SOLENOID/STARTERCABLE, SOLENOID/STARTER
-
180645-151 DECAL, WARNING - BATTERYDECAL, WARNING - BATTERY
-
190623-325 NUT, WINGNUT, WING
-
200745-144 TRAY, BATTERYTRAY, BATTERY
-
218002-040 SCREW, CAPSCREW, CAP
-
220123-788 CABLE TIE - 7 IN.CABLE TIE - 7 IN.
-
230645-019 BOOT, BATTERY TERMINALBOOT, BATTERY TERMINAL
-
240645-196 SOLENOIDSOLENOID
-
250630-100 FUSE, 7.5 AMPFUSE, 7.5 AMP
-
260609-113 NUT, RETAININGNUT, RETAINING
-
270623-122 NUT, LOCKNUT, LOCK
-
280686-695 HARNESS, ELECTRIC STARTHARNESS, ELECTRIC START
-
290716-391 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
300623-589 CLIP, RETAININGCLIP, RETAINING
-
310609-449 SWITCH, IGNITION - MULTI-KEY (INC 36)SWITCH, IGNITION - MULTI-KEY (INC 36)
-
322611-744 DECAL, CONSOLE - RIGHTDECAL, CONSOLE - RIGHT
-
330630-002 DIODE, CHARGINGDIODE, CHARGING
-
340123-899 WASHER, LOCK -INTERNAL TOOTHWASHER, LOCK -INTERNAL TOOTH
-
358002-045 SCREW, CAPSCREW, CAP
-
373611-644 DECAL ''ES''DECAL ''ES''
-
380645-327 BOOT, TERMINALBOOT, TERMINAL
