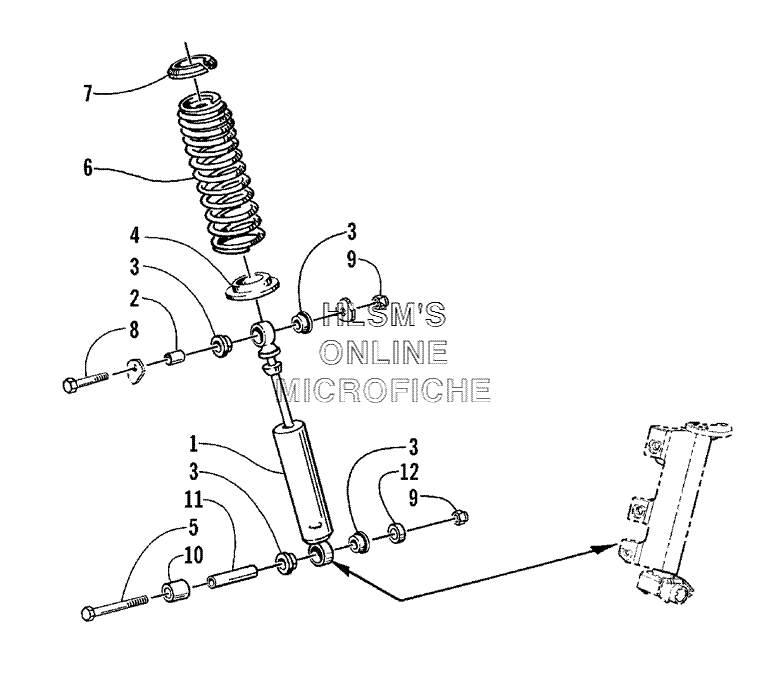

SHOCK ABSORBER ASSEMBLY для Arctic Cat Z 370 (ES) - 2001 года выпуска
-
№АртикулНазвание
-
11603-253 SHOCK, FRONT SUSPENSION (INC 3)SHOCK, FRONT SUSPENSION (INC 3)
-
20604-309 SLEEVE, SHOCKSLEEVE, SHOCK
-
30604-310 BUSHING, SHOCKBUSHING, SHOCK
-
40603-900 RETAINER, SPRING - SHOCKRETAINER, SPRING - SHOCK
-
58002-234 SCREW, CAPSCREW, CAP
-
60703-813 SPRING, COMPRESSION (ES)SPRING, COMPRESSION (ES)
-
70603-033 RETAINER, SPRINGRETAINER, SPRING
-
88002-226 SCREW, CAPSCREW, CAP
-
98040-486 NUT, LOCKNUT, LOCK
-
100603-854 SPACER, SHOCK MOUNT - FRONTSPACER, SHOCK MOUNT - FRONT
-
111604-184 SLEEVE, SHOCK ABSORBERSLEEVE, SHOCK ABSORBER
-
120603-855 SPACER, SHOCK MOUNT - REARSPACER, SHOCK MOUNT - REAR
