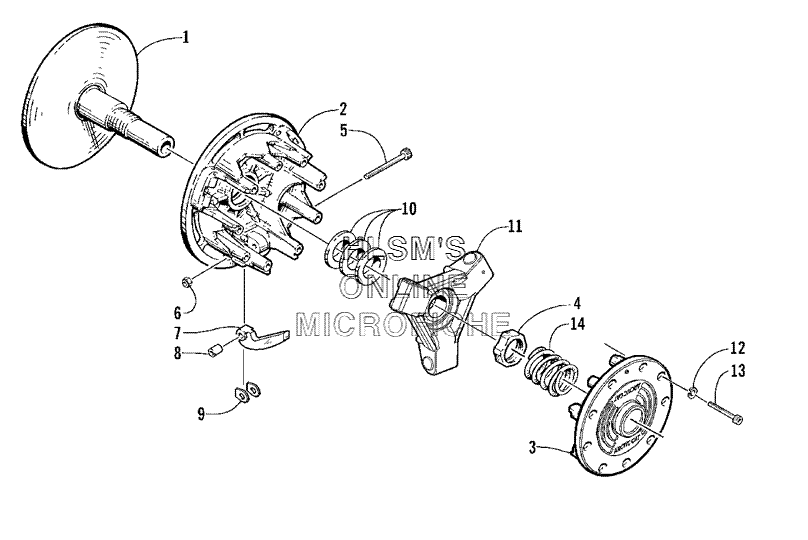

DRIVE CLUTCH для Arctic Cat TRIPLE TOURING 600 (USA) - 2001 года выпуска

  • №
    Артикул
    Название
  • -
    0725-329 DRIVE, CLUTCH ASSEMBLY
    DRIVE, CLUTCH ASSEMBLY
  • 1
    0646-325 SHEAVE, STATIONARY
    SHEAVE, STATIONARY
  • 2
    0746-074 SHEAVE, MOVABLE
    SHEAVE, MOVABLE
  • 3
    0746-086 COVER
    COVER
  • 4
    0646-140 NUT
    NUT
  • 5
    0646-295 PIN, CAM ARM
    PIN, CAM ARM
  • 6
    0623-392 NUT, LOCK
    NUT, LOCK
  • 7
    0746-587 ARM, CAM (INC 8)
    ARM, CAM (INC 8)
  • 7
    0746-608 ARM, CAM (INC 8) (5-9,000 FT ALT)
    ARM, CAM (INC 8) (5-9,000 FT ALT)
  • 7
    0746-611 ARM, CAM (INC 8) (OVER 9,000 FT ALT)
    ARM, CAM (INC 8) (OVER 9,000 FT ALT)
  • 8
    0646-160 BEARING, CAM ARM
    BEARING, CAM ARM
  • 9
    0646-101 WASHER, CAM ARM
    WASHER, CAM ARM
  • 10
    0646-265 WASHER, SPACER
    WASHER, SPACER
  • 11
    0746-098 SPIDER ASSEMBLY
    SPIDER ASSEMBLY
  • 12
    8051-212 WASHER, LOCK
    WASHER, LOCK
  • 13
    0623-596 SCREW, MACHINE
    SCREW, MACHINE
  • 14
    0646-149 SPRING, DRIVE CLUTCH - RED
    SPRING, DRIVE CLUTCH - RED
  • 14
    0646-147 SPRING, DRIVE CLUTCH - YELLOW/GREEN (OVER 5,000 FT ALT)
    SPRING, DRIVE CLUTCH - YELLOW/GREEN (OVER 5,000 FT ALT)
