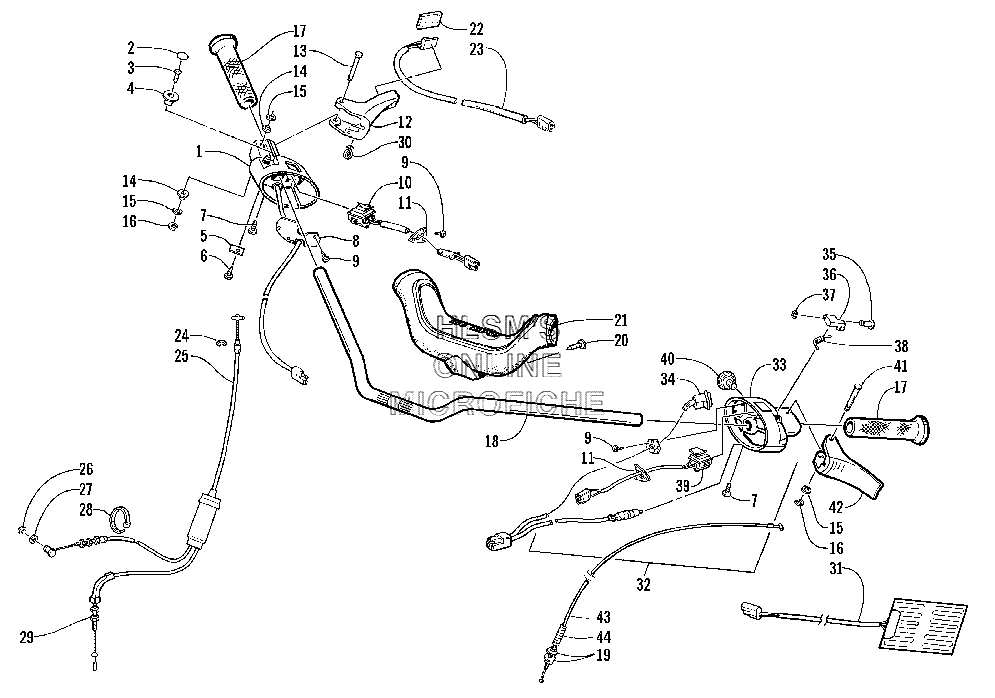

HANDLEBAR AND CONTROLS для Arctic Cat PANTHER 370 (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
10609-387 CONTROL, THROTTLE (INC 2-6 ONE NO 7 EIGHT NO 9, 10 AND ONE NO 1)CONTROL, THROTTLE (INC 2-6 ONE NO 7 EIGHT NO 9, 10 AND ONE NO 1)
-
20609-283 DECAL, MARK PLATEDECAL, MARK PLATE
-
30623-215 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
40609-282 KNOB, EMERGENCY STOPKNOB, EMERGENCY STOP
-
50609-319 CLAMP, HARNESS - SINGLECLAMP, HARNESS - SINGLE
-
60609-321 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
70609-085 SCREW, MACHINESCREW, MACHINE
-
80609-316 COVER, THROTTLE SWITCHCOVER, THROTTLE SWITCH
-
90609-312 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
100609-384 CONTROL, THUMBWARMER (INC ONE NO 11 AND THREE NO 9)CONTROL, THUMBWARMER (INC ONE NO 11 AND THREE NO 9)
-
110609-378 PLATE, COVERPLATE, COVER
-
120609-257 LEVER, THROTTLELEVER, THROTTLE
-
130609-317 AXLE, LEVER - THROTTLEAXLE, LEVER - THROTTLE
-
140609-038 SEAL, THROTTLE LEVERSEAL, THROTTLE LEVER
-
150609-036 WASHERWASHER
-
160609-040 RING, RETAININGRING, RETAINING
-
172606-084 GRIP, HANDLEBARGRIP, HANDLEBAR
-
180705-361 HANDLEBARHANDLEBAR
-
190123-406 NUT, FLANGENUT, FLANGE
-
200623-128 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
210616-995 PAD, HANDLEBARPAD, HANDLEBAR
-
220617-248 PAD, INSULATORPAD, INSULATOR
-
230609-372 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
240123-231 RING, RETAININGRING, RETAINING
-
250687-084 CABLE, THROTTLECABLE, THROTTLE
-
260124-057 E-RINGE-RING
-
270124-056 WASHERWASHER
-
280123-788 CABLE TIE - 7 IN.CABLE TIE - 7 IN.
-
290623-464 NUT, LOCKING - THROTTLE CABLENUT, LOCKING - THROTTLE CABLE
-
300623-262 CLIP, WIRECLIP, WIRE
-
310609-374 ELEMENT, HANDWARMERELEMENT, HANDWARMER
-
320609-393 SWITCH, BRAKE - ASSEMBLY (INC ONE NO 7 SEVEN NO 9 ONE NO 11 AND 33-40)SWITCH, BRAKE - ASSEMBLY (INC ONE NO 7 SEVEN NO 9 ONE NO 11 AND 33-40)
-
330609-478 HOUSING, BRAKE SWITCHHOUSING, BRAKE SWITCH
-
340609-452 SWITCH, DIMMER - BRAKESWITCH, DIMMER - BRAKE
-
350609-050 PIN, ACTUATORPIN, ACTUATOR
-
360609-314 ACTUATOR, BRAKE - PARKINGACTUATOR, BRAKE - PARKING
-
370609-051 RING, RETAININGRING, RETAINING
-
380609-313 SPRING, ACTUATORSPRING, ACTUATOR
-
390609-385 CONTROL, HANDWARMER (INC THREE NO 9 AND ONE NO 11)CONTROL, HANDWARMER (INC THREE NO 9 AND ONE NO 11)
-
400609-474 KNOB, DIMMER SWITCHKNOB, DIMMER SWITCH
-
410609-315 AXLE, LEVER - BRAKEAXLE, LEVER - BRAKE
-
420609-266 LEVER, BRAKELEVER, BRAKE
-
430687-089 CABLE, BRAKECABLE, BRAKE
-
440109-194 SPRING, BRAKE CABLESPRING, BRAKE CABLE
