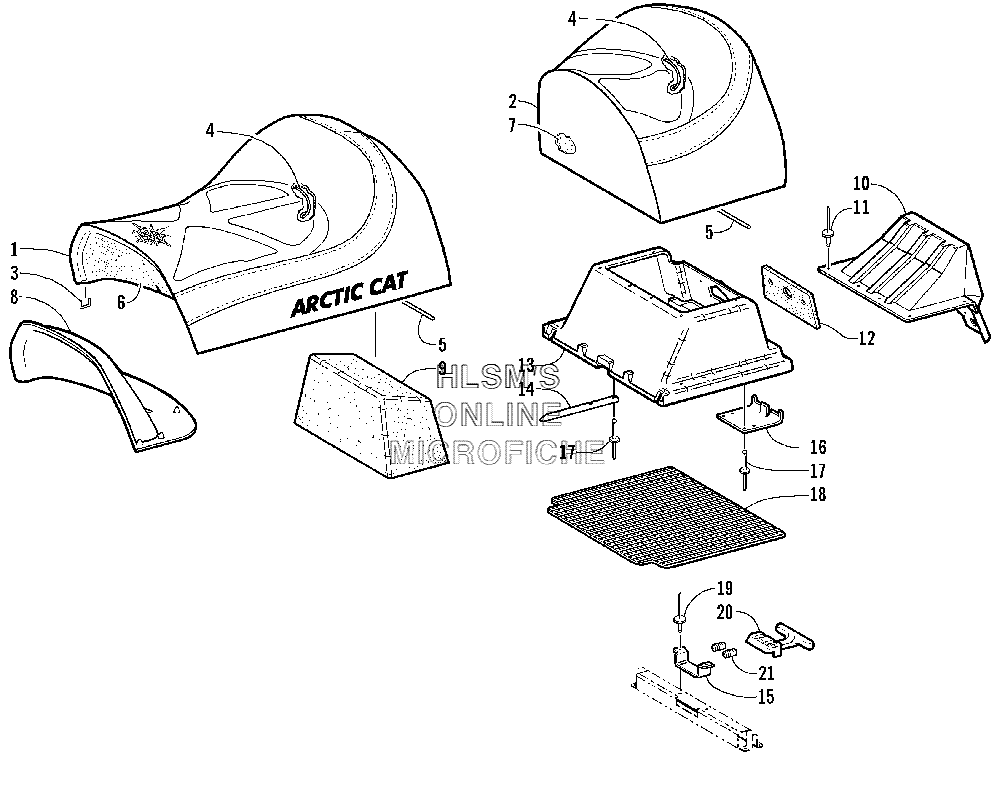

SEAT ASSEMBLY для Arctic Cat PANTERA 580 EFI (INTERNATIONAL) - 2001 года выпуска

  • №
    Артикул
    Название
  • -
    0718-988 COMPLETE SEAT ASSEMBLY - FRONT
    COMPLETE SEAT ASSEMBLY - FRONT
  • -
    0718-985 COMPLETE SEAT ASSEMBLY - PASSENGER
    COMPLETE SEAT ASSEMBLY - PASSENGER
  • 1
    1706-168 COVER, SEAT - FRONT
    COVER, SEAT - FRONT
  • 2
    1706-169 COVER, SEAT - PASSENGER
    COVER, SEAT - PASSENGER
  • 3
    0624-528 STAPLE, SEAT COVER
    STAPLE, SEAT COVER
  • 4
    1606-150 WIRE, SEAT
    WIRE, SEAT
  • 5
    0606-057 WIRE, SEAT
    WIRE, SEAT
  • 6
    1706-158 FOAM, SEAT CUSHION - FRONT
    FOAM, SEAT CUSHION - FRONT
  • 7
    1706-159 FOAM, SEAT - PASSENGER
    FOAM, SEAT - PASSENGER
  • 8
    1606-612 INSERT, SEAT FOAM
    INSERT, SEAT FOAM
  • 9
    2606-133 INSERT, SEAT FOAM
    INSERT, SEAT FOAM
  • 10
    1606-191 EXTENSION, TOOLBOX
    EXTENSION, TOOLBOX
  • 11
    0623-853 RIVET
    RIVET
  • 12
    0617-098 FOAM, SEAT-BASE/TAILLIGHT
    FOAM, SEAT-BASE/TAILLIGHT
  • 13
    2606-066 SEAT-BASE - REAR
    SEAT-BASE - REAR
  • 14
    2606-188 BRACKET, HOLD-DOWN - SEAT - FRONT - RIGHT
    BRACKET, HOLD-DOWN - SEAT - FRONT - RIGHT
  • 14
    2606-189 BRACKET, HOLD-DOWN - SEAT - FRONT - LEFT
    BRACKET, HOLD-DOWN - SEAT - FRONT - LEFT
  • 15
    2606-158 BRACKET, RETAINER - LATCH
    BRACKET, RETAINER - LATCH
  • 16
    2606-161 PLATE, STRIKE
    PLATE, STRIKE
  • 17
    0623-778 RIVET
    RIVET
  • 18
    2606-180 PAD, RUBBER
    PAD, RUBBER
  • 19
    8060-706 RIVET
    RIVET
  • 20
    2606-159 HANDLE, BACKREST - LATCH
    HANDLE, BACKREST - LATCH
  • 21
    2606-154 SPRING, COMPRESSION
    SPRING, COMPRESSION
