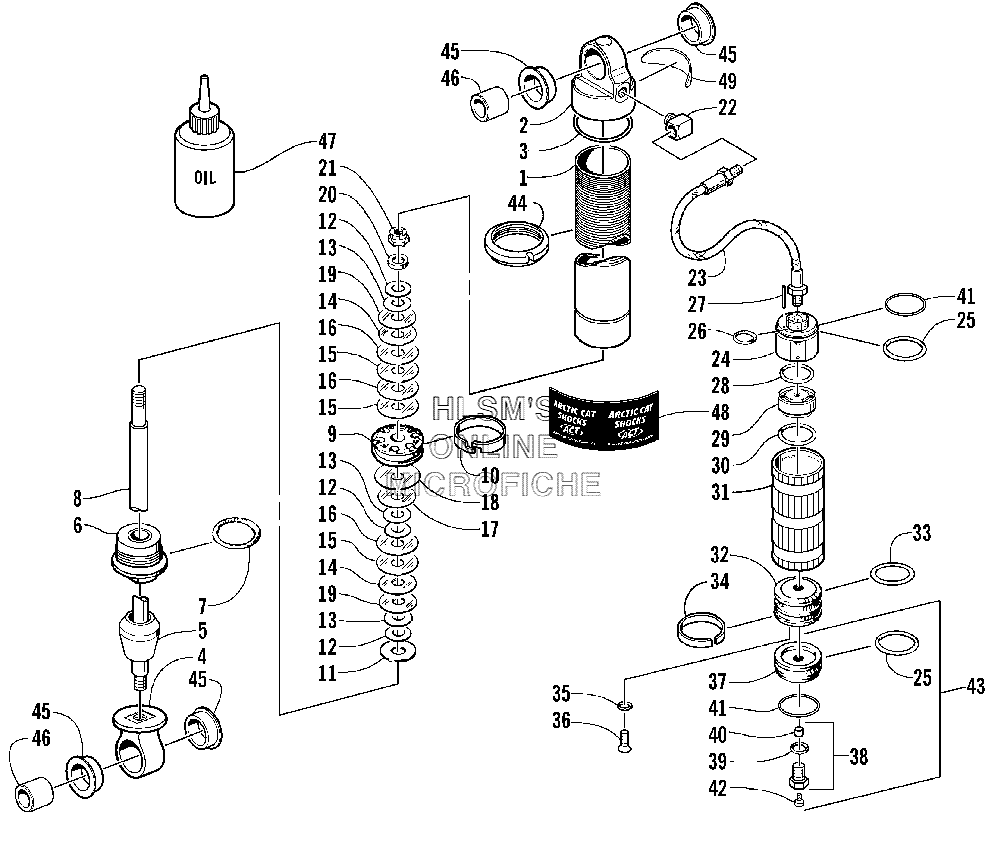

FRONT SUSPENSION SHOCK ABSORBER (LE) для Arctic Cat MOUNTAIN CAT 600 EFI LE (BLACK) - 2001 года выпуска

  • №
    Артикул
    Название
  • -
    0703-714 COMPLETE SHOCK ABSORBER (RIGHT)
    COMPLETE SHOCK ABSORBER (RIGHT)
  • -
    0703-715 COMPLETE SHOCK ABSORBER (LEFT)
    COMPLETE SHOCK ABSORBER (LEFT)
  • 1
    1603-312 BODY, SHOCK
    BODY, SHOCK
  • 2
    0603-963 END CAP, SHOCK
    END CAP, SHOCK
  • 3
    1604-280 O-RING, END CAP
    O-RING, END CAP
  • 4
    1603-501 EYELET, SHOCK
    EYELET, SHOCK
  • 5
    1603-405 BUMPER, SHOCK
    BUMPER, SHOCK
  • 6
    0704-386 END CAP, SHOCK (INC. 7)
    END CAP, SHOCK (INC. 7)
  • 7
    1604-271 O-RING
    O-RING
  • 8
    1603-303 ROD, SHOCK
    ROD, SHOCK
  • 9
    0603-953 PISTON, 0.093 IN., ORIFICE
    PISTON, 0.093 IN., ORIFICE
  • 10
    1604-274 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 11
    1604-272 WASHER, TOP OUT
    WASHER, TOP OUT
  • 12
    1603-055 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 13
    1603-065 VALVE, 0.900 X 0.010 IN.
    VALVE, 0.900 X 0.010 IN.
  • 14
    1603-094 VALVE, 1.100 X 0.008 IN.
    VALVE, 1.100 X 0.008 IN.
  • 15
    1603-122 VALVE, 1.250 X 0.006 IN.
    VALVE, 1.250 X 0.006 IN.
  • 16
    1603-124 VALVE, 1.250 X 0.008 IN.
    VALVE, 1.250 X 0.008 IN.
  • 17
    1603-092 VALVE, 1.100 X 0.006 IN.
    VALVE, 1.100 X 0.006 IN.
  • 18
    1603-134 VALVE, 1.300 X 0.008 IN.
    VALVE, 1.300 X 0.008 IN.
  • 19
    1603-075 VALVE, 1.000 X 0.010 IN.
    VALVE, 1.000 X 0.010 IN.
  • 20
    1604-273 WASHER, BACKUP
    WASHER, BACKUP
  • 21
    0623-696 NUT, LOCK
    NUT, LOCK
  • 22
    0603-964 FITTING, ELBOW
    FITTING, ELBOW
  • 23
    0603-965 HOSE, RESERVOIR/SHOCK
    HOSE, RESERVOIR/SHOCK
  • 24
    0703-541 END CAP, RESERVOIR BODY (INC. ONE NO. 25 AND 26, 28)
    END CAP, RESERVOIR BODY (INC. ONE NO. 25 AND 26, 28)
  • 25
    0603-968 O-RING
    O-RING
  • 26
    0603-975 O-RING
    O-RING
  • 27
    1603-406 PIN, INNERDICATOR KNOB
    PIN, INNERDICATOR KNOB
  • 28
    0603-970 O-RING
    O-RING
  • 29
    0703-542 OIL RELIEF, 2, PORT, ASSY
    OIL RELIEF, 2, PORT, ASSY
  • 30
    0603-984 RETAINER
    RETAINER
  • 31
    1603-315 BODY, RESERVOIR
    BODY, RESERVOIR
  • 32
    0603-986 PISTON, RESERVOIR
    PISTON, RESERVOIR
  • 33
    0603-987 O-RING
    O-RING
  • 34
    0603-988 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 35
    1604-279 O-RING
    O-RING
  • 36
    0623-697 SCREW, PISTON
    SCREW, PISTON
  • 37
    0603-989 END CAP, RESERVOIR BODY
    END CAP, RESERVOIR BODY
  • 38
    0704-383 VALVE, PRESSURE (INC. 39, 40)
    VALVE, PRESSURE (INC. 39, 40)
  • 39
    1604-284 O-RING, VALVE
    O-RING, VALVE
  • 41
    0603-985 RETAINER, END CAP
    RETAINER, END CAP
  • 42
    0624-433 SCREW, MACHINE
    SCREW, MACHINE
  • 43
    0703-540 END CAP, RESERVOIR, ASSY (INC. ONE NO. 25 AND 35, 42)
    END CAP, RESERVOIR, ASSY (INC. ONE NO. 25 AND 35, 42)
  • 44
    0603-960 NUT, SPRING ADJUSTER
    NUT, SPRING ADJUSTER
  • 45
    0603-955 BUSHING, SHOCK
    BUSHING, SHOCK
  • 46
    1603-209 SLEEVE, EYELET
    SLEEVE, EYELET
  • 47
    1639-245 OIL, GAS SHOCK, 6 QT CASE
    OIL, GAS SHOCK, 6 QT CASE
  • 48
    3611-774 DECAL, ACT, SHOCK
    DECAL, ACT, SHOCK
  • 49
    3611-007 DECAL, WARNING
    DECAL, WARNING
