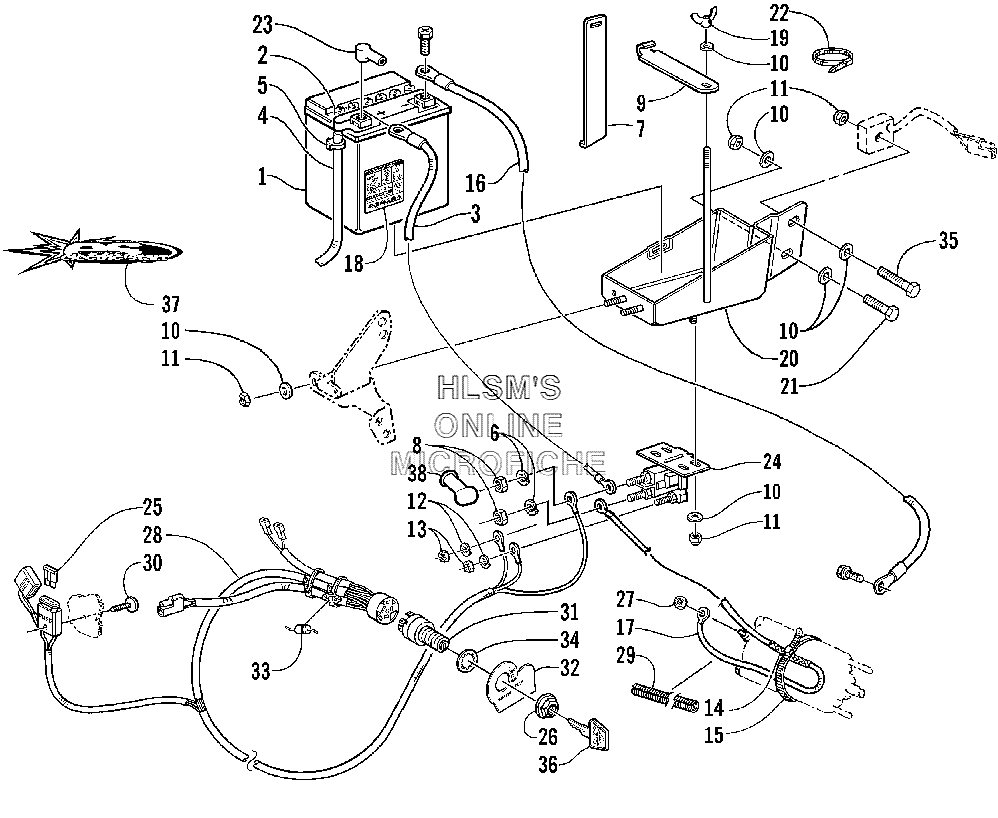

BATTERY- SOLENOID- AND CABLES (OPTIONAL) для Arctic Cat MOUNTAIN CAT 600 EFI (INTERNATIONAL) - 2001 года выпуска`
-
№АртикулНазвание
-
10745-047 BATTERY (INC. 2 AND 4, 5)BATTERY (INC. 2 AND 4, 5)
-
20645-045 CAP, BATTERYCAP, BATTERY
-
30645-161 CABLE, BATTERY/SOLENOIDCABLE, BATTERY/SOLENOID
-
40645-263 HOSE, BATTERY VENTHOSE, BATTERY VENT
-
50645-152 CLAMP, HOSECLAMP, HOSE
-
68051-242 WASHER, LOCKWASHER, LOCK
-
70645-245 STRAP, BATTERY HOLD, DOWN (SIDE)STRAP, BATTERY HOLD, DOWN (SIDE)
-
88043-452 NUTNUT
-
90645-243 STRAP, BATTERY HOLD, DOWN (TOP)STRAP, BATTERY HOLD, DOWN (TOP)
-
108050-217 WASHERWASHER
-
118040-366 NUT, LOCKNUT, LOCK
-
128051-152 WASHER, LOCKWASHER, LOCK
-
138042-272 NUTNUT
-
140645-181 TUBE, HEAT PROTECTIONTUBE, HEAT PROTECTION
-
150623-144 CABLE TIE, 17.5 IN.CABLE TIE, 17.5 IN.
-
160645-318 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
170645-115 CABLE, SOLENOID/STARTERCABLE, SOLENOID/STARTER
-
180645-151 DECAL, WARNING, BATTERYDECAL, WARNING, BATTERY
-
190623-325 NUT, WINGNUT, WING
-
200745-144 TRAY, BATTERYTRAY, BATTERY
-
218002-040 SCREW, CAPSCREW, CAP
-
220123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
-
230645-019 BOOT, TERMINAL/BATTERYBOOT, TERMINAL/BATTERY
-
240645-196 SOLENOIDSOLENOID
-
250630-100 FUSE, 7.5 AMPFUSE, 7.5 AMP
-
260609-113 NUT, RETAININGNUT, RETAINING
-
270623-122 NUT, LOCKNUT, LOCK
-
280686-695 HARNESS, ELECTRIC STARTHARNESS, ELECTRIC START
-
290716-391 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
300623-589 CLIP, RETAININGCLIP, RETAINING
-
310609-449 SWITCH, IGNITION, MULTI, KEY (INC. 36) (SEE NOTE)SWITCH, IGNITION, MULTI, KEY (INC. 36) (SEE NOTE)
-
322611-744 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
330630-002 DIODE, CHARGINGDIODE, CHARGING
-
340123-899 WASHER, LOCK, INTERNAL TOOTHWASHER, LOCK, INTERNAL TOOTH
-
358002-045 SCREW, CAP KEY, IGNITIONSCREW, CAP KEY, IGNITION
-
373611-644 DECAL, "ES"DECAL, "ES"
-
380645-327 BOOT, TERMINALBOOT, TERMINAL
