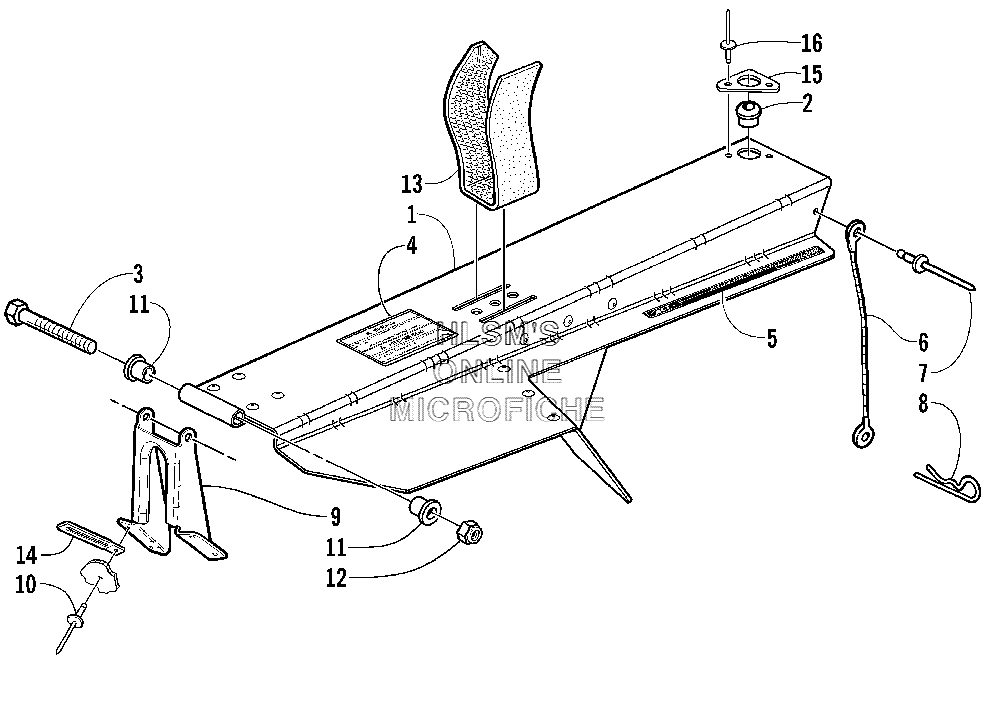

BELT GUARD ASSEMBLY для Arctic Cat MOUNTAIN CAT 500 EFI (USA) - 2001 года выпуска`
-
№АртикулНазвание
-
10707-488 BELT GUARD (INC. 2 AND 15, 16)BELT GUARD (INC. 2 AND 15, 16)
-
20607-549 BUSHING, BELT GUARDBUSHING, BELT GUARD
-
38002-050 SCREW, CAPSCREW, CAP
-
41611-565 DECAL, WARNING, GUARDDECAL, WARNING, GUARD
-
53611-969 DECAL, "ACT, ROLLER DRIVEN CLUTCH"DECAL, "ACT, ROLLER DRIVEN CLUTCH"
-
60607-447 CABLECABLE
-
78060-426 RIVETRIVET
-
80605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
90607-592 BRACKET, GUARDBRACKET, GUARD
-
108061-508 RIVETRIVET
-
110607-094 INSERT, HINGEINSERT, HINGE
-
128040-366 NUT, LOCKNUT, LOCK
-
130707-557 RETAINER, DRIVE BELT, VELCRORETAINER, DRIVE BELT, VELCRO
-
143002-964 CLAMP, WIRECLAMP, WIRE
-
150607-550 PLATE, BUSHING, BELT GUARDPLATE, BUSHING, BELT GUARD
-
168060-504 RIVETRIVET
