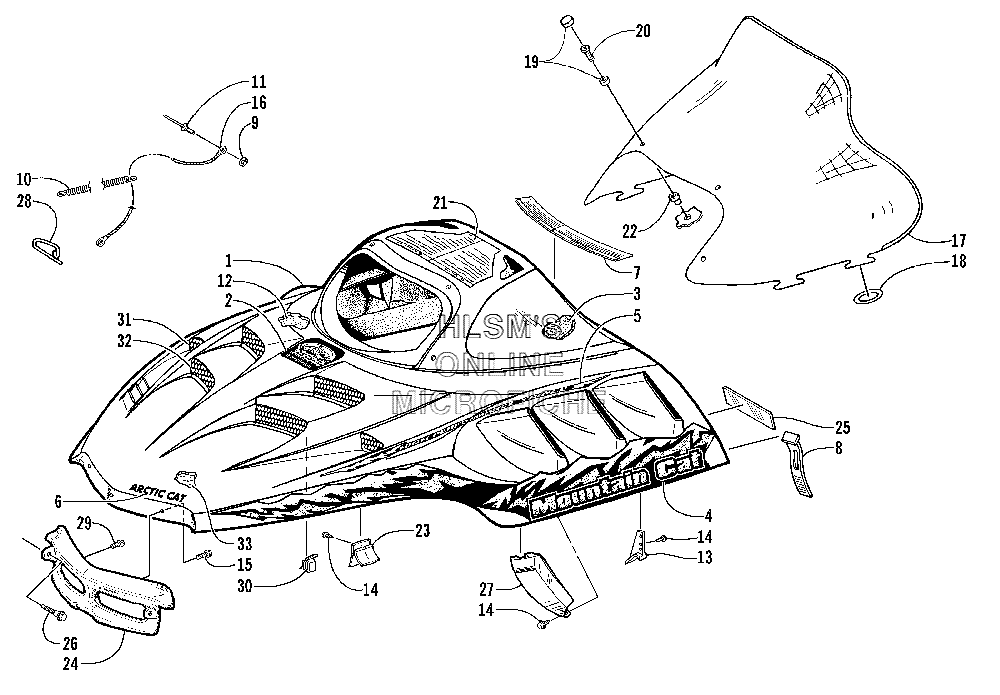

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat MOUNTAIN CAT 1000 (USA) - 2001 года выпуска
-
№АртикулНазвание
-
10718-951 HOOD W/O DECALSHOOD W/O DECALS
-
10718-952 HOOD W/DECALSHOOD W/DECALS
-
23611-897 DECAL, HOOD, CRESTDECAL, HOOD, CREST
-
30717-112 FOAM, HOOD (UPPER) (RIGHT)FOAM, HOOD (UPPER) (RIGHT)
-
30717-113 FOAM, HOOD (UPPER) (LEFT)FOAM, HOOD (UPPER) (LEFT)
-
43611-898 DECAL, HOOD (LOWER) (RIGHT)DECAL, HOOD (LOWER) (RIGHT)
-
43611-899 DECAL, HOOD (LOWER) (LEFT)DECAL, HOOD (LOWER) (LEFT)
-
53611-900 DECAL, HOOD (UPPER) (RIGHT)DECAL, HOOD (UPPER) (RIGHT)
-
53611-901 DECAL, HOOD (UPPER) (LEFT)DECAL, HOOD (UPPER) (LEFT)
-
63611-455 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
74611-010 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
81606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
90123-802 WASHERWASHER
-
100123-510 SPRING, EXTENSIONSPRING, EXTENSION
-
118061-708 RIVETRIVET
-
120717-136 FOAM, HOOD (RIGHT)FOAM, HOOD (RIGHT)
-
120717-137 FOAM, HOOD (LEFT)FOAM, HOOD (LEFT)
-
131606-321 GUIDE, HOODGUIDE, HOOD
-
140623-257 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
150623-790 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
160616-614 CABLE, HOODCABLE, HOOD
-
171606-323 WINDSHIELDWINDSHIELD
-
180616-032 O-RING, WINDSHIELDO-RING, WINDSHIELD
-
190124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
200623-121 SCREW, MACHINESCREW, MACHINE
-
213611-360 DECAL, WARNINGDECAL, WARNING
-
220123-010 NUT, EXPANSIONNUT, EXPANSION
-
231606-622 GUIDE, HOOD (FRONT)GUIDE, HOOD (FRONT)
-
241606-324 HINGE, HOODHINGE, HOOD
-
252611-769 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
-
260623-777 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
271606-632 PLUG, VENT (RIGHT)PLUG, VENT (RIGHT)
-
271606-633 PLUG, VENT (LEFT)PLUG, VENT (LEFT)
-
280115-528 HOOK, CABLEHOOK, CABLE
-
290623-791 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
300123-394 CLIP, RETAININGCLIP, RETAINING
-
311606-580 SCREEN, VENT, HOOD (RIGHT)SCREEN, VENT, HOOD (RIGHT)
-
311606-581 SCREEN, VENT, HOOD (LEFT)SCREEN, VENT, HOOD (LEFT)
-
321606-584 SCREEN, VENT, HOOD (CENTER) (RIGHT)SCREEN, VENT, HOOD (CENTER) (RIGHT)
-
321606-607 SCREEN, VENT, HOOD (CENTER) (LEFT)SCREEN, VENT, HOOD (CENTER) (LEFT)
-
330619-206 TAPE, FOILTAPE, FOIL
