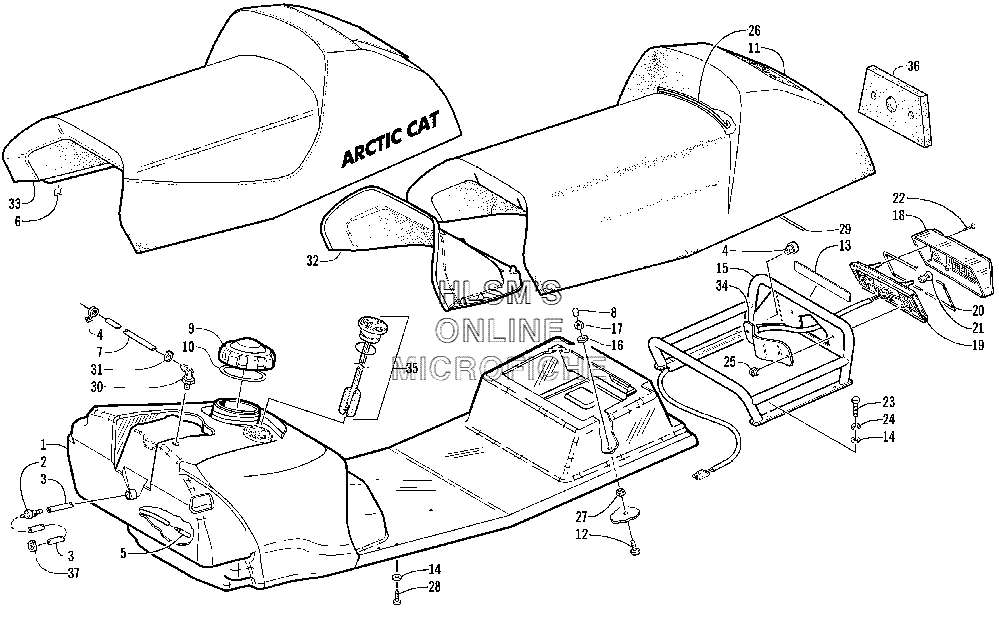

GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY для Arctic Cat MOUNTAIN CAT 1000 (INTERNATIONAL) - 2001 года выпуска`
-
№АртикулНазвание
-
-0718-977 COMPLETE SEAT ASSYCOMPLETE SEAT ASSY
-
10770-527 TANK, GAS/SEAT, BASE (INC. 2, 3, 5, 30, AND 35)TANK, GAS/SEAT, BASE (INC. 2, 3, 5, 30, AND 35)
-
21670-173 OUTLET, TANKOUTLET, TANK
-
30610-017 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
30610-008 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
40623-101 CLIP, ROUTING, SNAP (INNER)CLIP, ROUTING, SNAP (INNER)
-
50510-358 STRAINER, GAS TANKSTRAINER, GAS TANK
-
60624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
70610-015 HOSE, VENT, GAS TANK (100 FT)HOSE, VENT, GAS TANK (100 FT)
-
70610-016 HOSE, VENT, GAS TANK (25 FT)HOSE, VENT, GAS TANK (25 FT)
-
80623-404 CAP, PROTECTORCAP, PROTECTOR
-
91670-199 CAP, GAS TANK (INC. 10)CAP, GAS TANK (INC. 10)
-
101670-228 SEAL, GAS CAPSEAL, GAS CAP
-
111706-197 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
128002-042 SCREW, CAPSCREW, CAP
-
133611-924 DECAL, CAUTION, MAX LOADDECAL, CAUTION, MAX LOAD
-
148050-217 WASHERWASHER
-
151706-195 RACKRACK
-
160623-184 WASHERWASHER
-
178040-366 NUT, LOCKNUT, LOCK
-
180609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
190609-091 TAILLIGHT W/SOCKET ASSYTAILLIGHT W/SOCKET ASSY
-
200609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
210109-460 BULBBULB
-
220609-093 SCREW, RETAININGSCREW, RETAINING
-
238002-040 SCREW, CAPSCREW, CAP
-
248051-217 WASHER, LOCKWASHER, LOCK
-
250623-038 NUT W/WASHERNUT W/WASHER
-
261606-150 WIRE, SEATWIRE, SEAT
-
278041-366 NUT, LOCKNUT, LOCK
-
280623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
290606-057 WIRE, SEATWIRE, SEAT
-
300670-572 VENT, GAS TANKVENT, GAS TANK
-
310623-063 CLAMP, HOSECLAMP, HOSE
-
321606-126 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
331706-272 COVER, SEAT W/ARCTIC CATCOVER, SEAT W/ARCTIC CAT
-
341606-429 PLATE, PROTECTOR, TAILLIGHTPLATE, PROTECTOR, TAILLIGHT
-
351670-241 GAUGE, FUEL, ASSY W/GASKET (PRESS, FIT)GAUGE, FUEL, ASSY W/GASKET (PRESS, FIT)
-
360617-098 FOAM, SEAT, BASE/TAILLIGHTFOAM, SEAT, BASE/TAILLIGHT
-
370124-045 CLAMP, HOSECLAMP, HOSE
